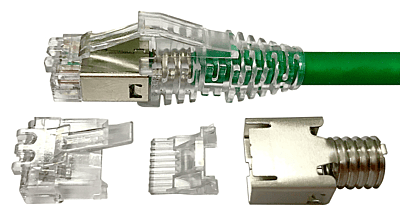

CommScope AMP Cat 6A Connector- 6-2111984-3
Attribute | Details |
|---|---|
Product | CommScope AMP Cat6A Connector |
Model Number | 6-2111984-3 |
Category | Cat6A |
Type | RJ45 Connector |
Category | Details |
|---|---|
Product Classification | Modular Plug |
Portfolio | CommScope |
Product Type | Modular Plug |
General Specifications
Specification | Details |
|---|---|
ANSI/TIA Category | 6A |
Cable Type | Round, Shielded |
Conductor Type | Solid / Stranded |
Interface | RJ45 |
Positions/Loaded Contacts | 8/8 |
Termination Type | IDC |
Dimensions
Specification | Value (mm) | Value (inches) |
|---|---|---|
Compatible Cable Diameter, Maximum | 7 mm | 0.276 in |
Compatible Cable Diameter, Minimum | 5.7 mm | 0.224 in |
Compatible Insulated Conductor Diameter, Maximum | 1.09 mm | 0.043 in |
Compatible Insulated Conductor Diameter, Minimum | 0.89 mm | 0.035 in |
Compatible Conductor Gauge (Solid) | 26–23 AWG | - |
Compatible Conductor Gauge (Stranded) | 26–23 AWG | - |
Contact Plating Thickness | 1.27 µm | - |
Electrical Specifications
Specification | Value |
|---|---|
Insulation Resistance, Minimum | 500 mOhm |
General
- TechnologyCat.6
- Connector8P8C RJ45
