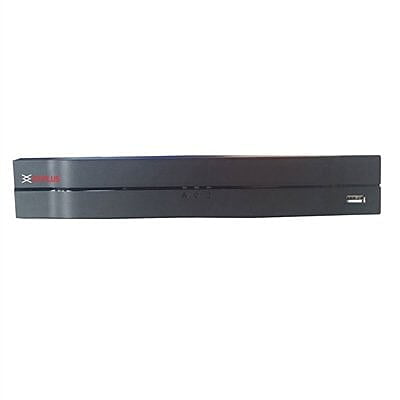

CP Plus CP-UNR-104F1 DVR (Black)

Processor

Industrial-grade embedded processor

Operating System

Embedded LINUX

User Interface

Web/operating in local GUI

Video Output

1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P

Video Resolution

8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF

Video Recording

80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding

Video Display Split

1/4

Bandwidth Incoming

80 Mbps

Channel

4

Motion Detection

Supports

Video Loss

Supports

Smart Phone

iPhone, iPad, Android Phone

Hard Disk

1 SATA 2.0, up to 8TB per disk

Recording Mode

Manual recording, alarm recording, motion detection recording, timed recording

Backup Mode

USB Device

Playback

Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off

Ethernet

1 RJ-45 port (10/100Mbps)

Interface Ports

2 USB Ports (1 Rear USB 2.0, 1 Front USB 2.0)

Protocols

HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/S/G), RTSP, CGI, SDK

Power Supply

DC12V, 1.5A

Power Consumption

<10W (Without HDD)

Working Temp

-10°C to 45°C (+34°F to +113°F)

Dimension

260 mm × 225 mm × 47.6 mm (W × L × H)

Weight

0.81kg (without HDD)
