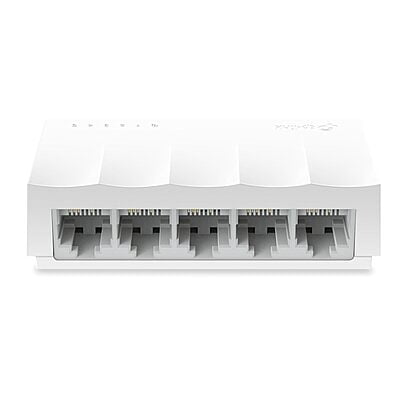

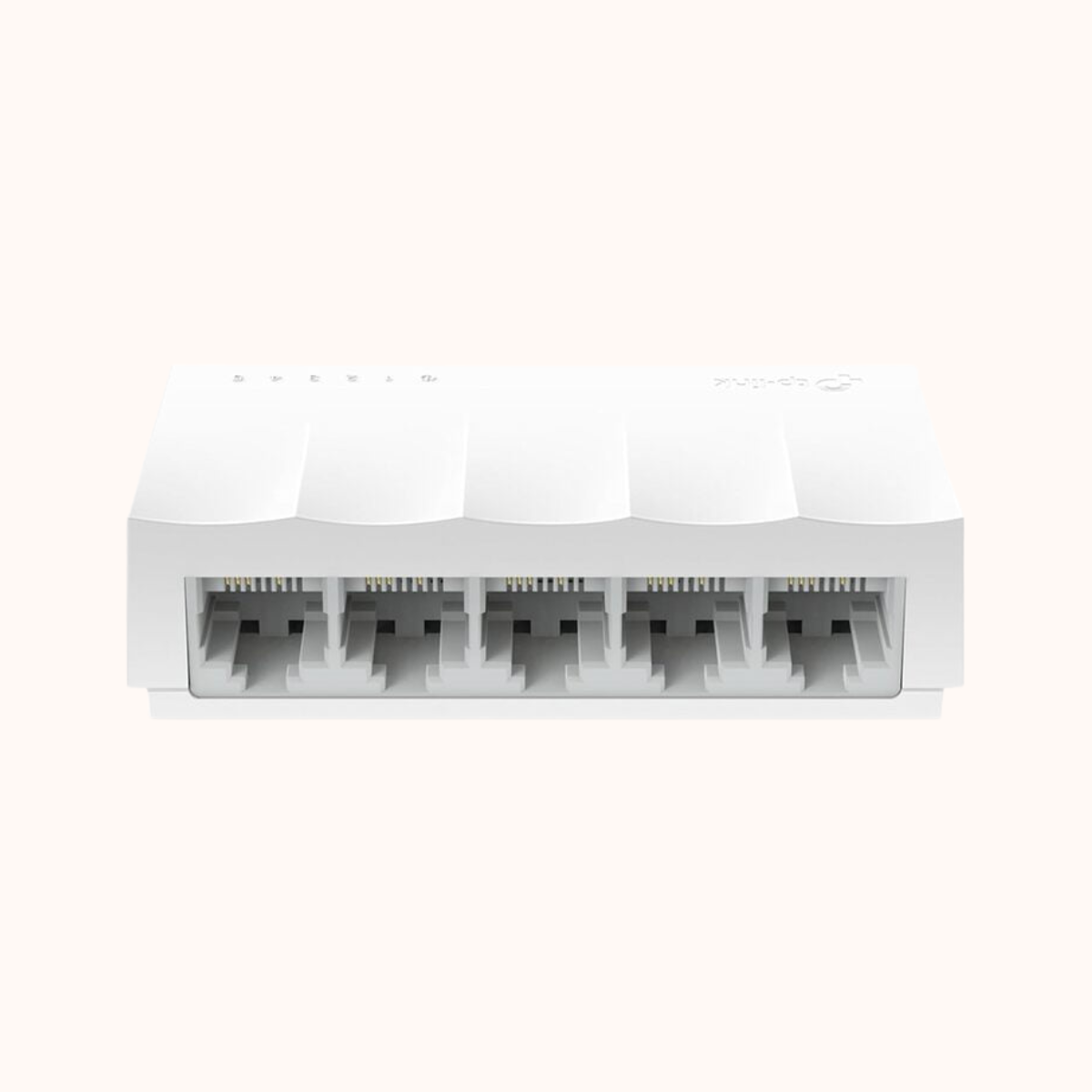

TP-Link 5-Port Desktop Switch 10/100Mbps- LS1005
About this item

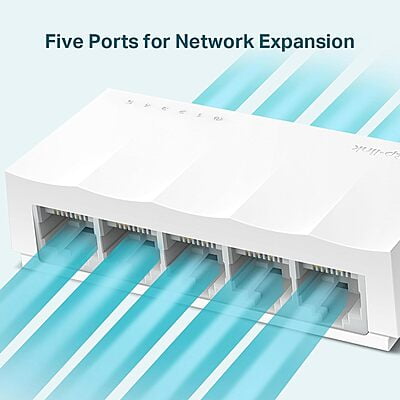

- 5× 10/100Mbos Auto-Negotiation RJ45 ports, supporting Auto-MDI/MDIX

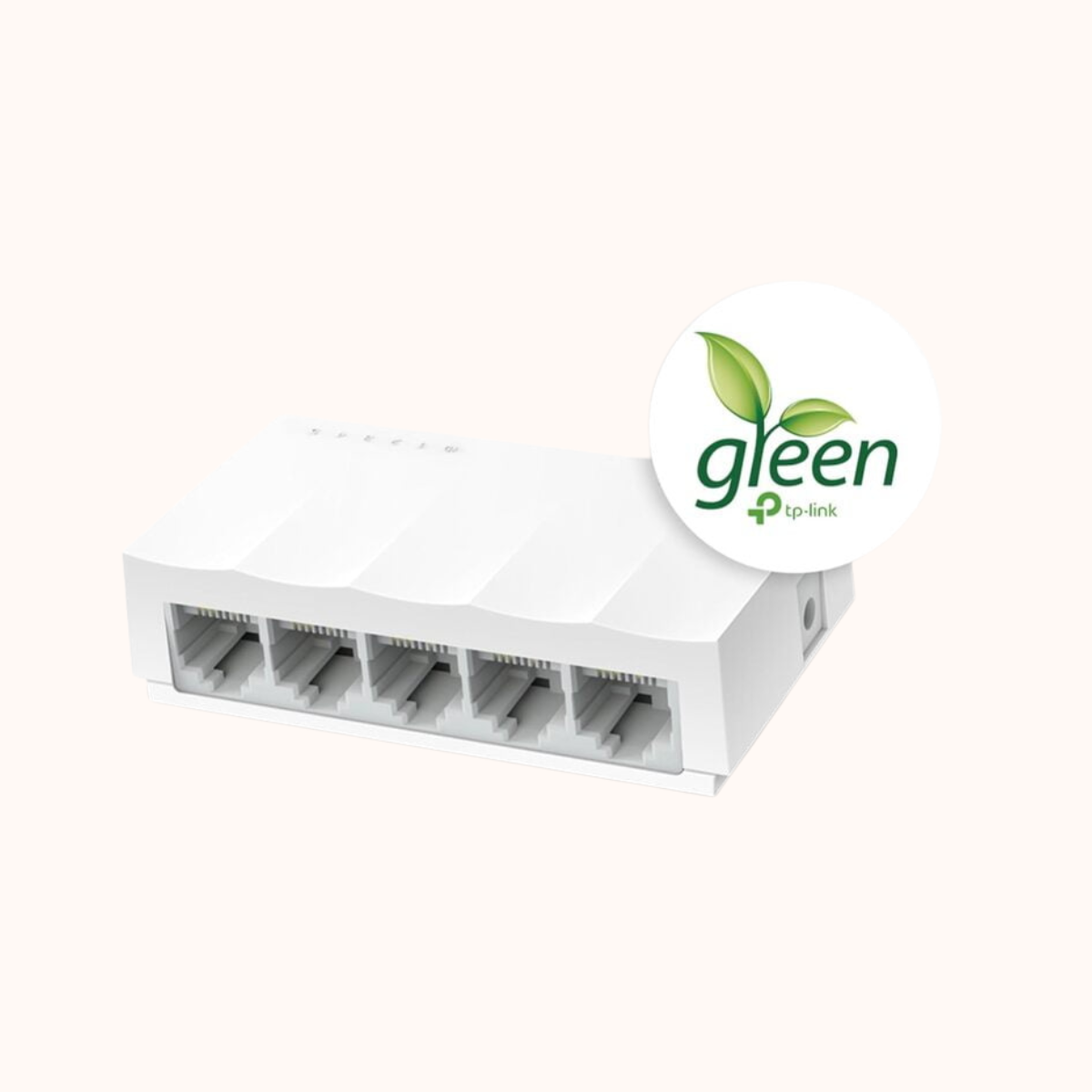

- Green Ethernet technology saves power consumption
- IEEE 802.3X flow control provides reliable data transfer

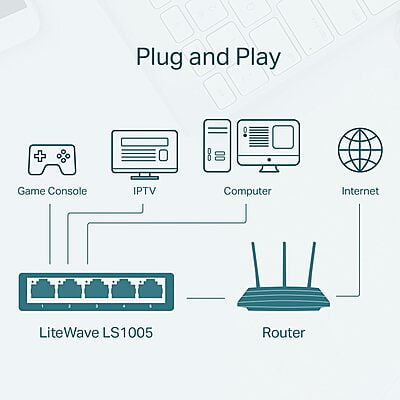

- Plug and play, no configuration required

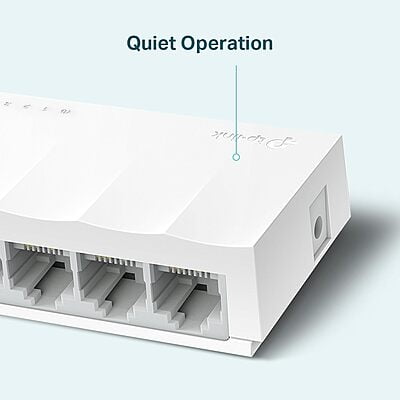

- Fanless design ensures quiet operation
HARDWARE FEATURES Standards and Protocols: IEEE 802.3i/802.3u/802.3x Interface: 5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports Fan Quantity: Fanless External Power Supply: External Power Adapter (Output: 5VDC/0.6A) Dimensions ( W x D x H ): 3.3 × 1.8 × 0.9 in. (83.6 × 45.7 × 22.8 mm) Max Power Consumption: 1.65W Max Heat Dissipation5.627 Btu/hr SOFTWARE FEATURES Advanced Features: Green Technology, 802.3X Flow Control, Back Pressure Transfer Method: Store and Forward OTHERS Certification: CE, FCC, RoHS Package Contents 5-Port 10/100Mbps Desktop Switch, Power Adapter, Installation Guide Environment: Operating Temperature: 0°C~40°C (32°F~104°F), Storage Temperature: -40°C~70°C (-40°F~158°F), Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5%~90% non-condensing
General
- TypesUnManaged
- Switching Capacity10 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports5
- Rack MountingYes
