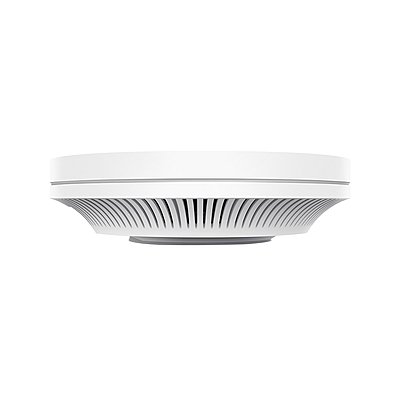

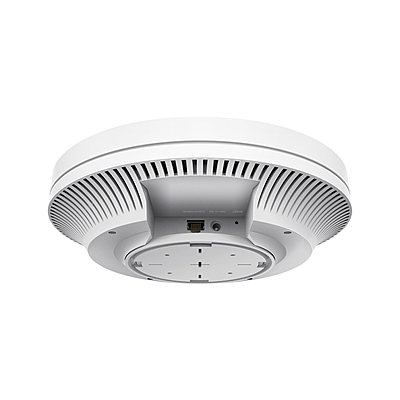

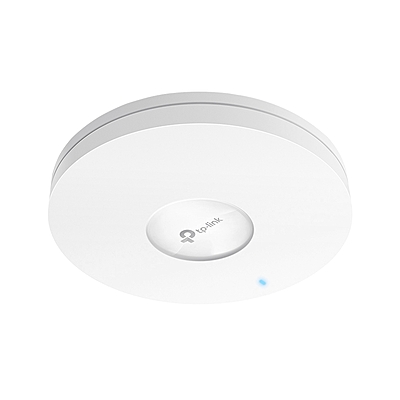

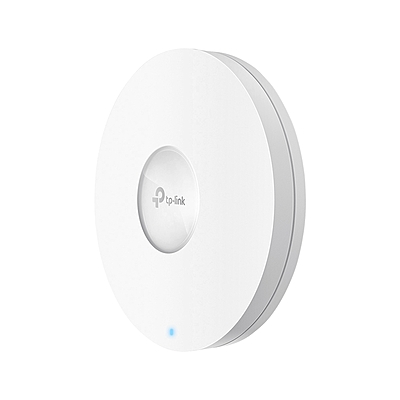

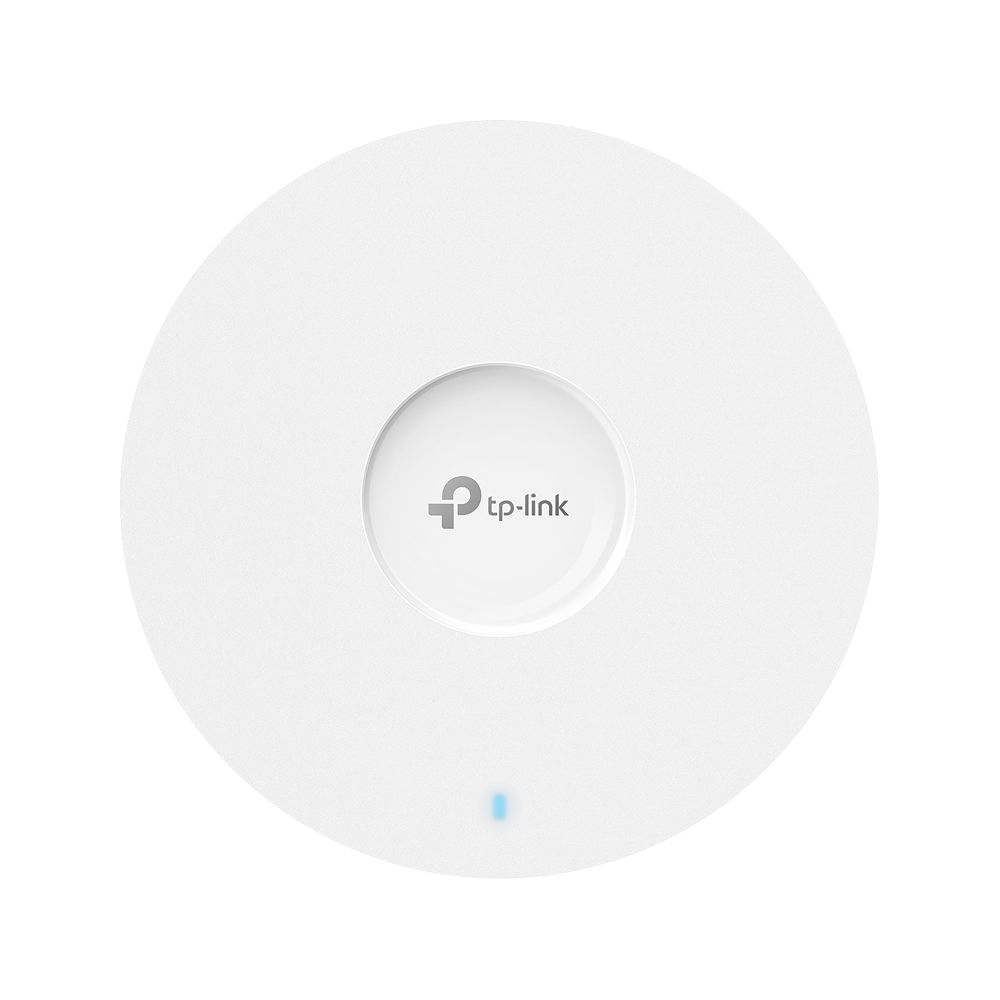

TP-Link Omada Pro AX5400 Ceiling Mount WiFi 6 Access Point-AP9670
Feature | Details |
|---|---|
WiFi 6 Speeds | 574 Mbps (2.4 GHz) + 4804 Mbps (5 GHz) = 5378 Mbps total |
Anomaly Detection | Multi-dimensional detection for better IT maintenance |
Cloud Management | Omada SDN for local/cloud control via web UI or app |
160 MHz Channel (HE160) | Doubles data transfer on a single stream |
Seamless Roaming | Uninterrupted video and voice during movement |
Omada Mesh | Wireless link between APs for wider range and flexible deployment |
PoE+ Power Support | Works with 802.3at PoE+ and DC adapter (included)a |
Category | Main Key Points |
|---|---|
Hardware Features | - 1× 2.5 Gigabit Ethernet Port |
Antenna | - 2.4 GHz: 2× 4 dBi |
Dimensions | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) |
Mounting | Ceiling/Wall Mounting (Mounting Kits Included) |
Wireless Features | - Standards: IEEE 802.11 a/b/g/n/ac/ax |
Concurrent Clients | 250+ clients |
Wireless Security | WPA/WPA2/WPA3, MAC Filtering, Captive Portal Authentication, Rogue AP Detection, 802.1X Support |
Transmission Power | CE Limits: <20 dBm (2.4 GHz), <23 dBm (5 GHz Band 1 & 2), <30 dBm (5 GHz Band 3) |
Management Features | Omada App, SNMP v1/v2c/v3, SSH, Web-based Management, System Log, Zero-Touch Provisioning |
Cloud Access | Yes – Requires Omada Pro Cloud-Based Controller or Omada Pro Software Controller |
Centralized Management | Omada Pro Software Controller, Omada Pro Cloud-Based Controller |
L3 Management | Yes |
General
- Antennas Quantity2
- Ethernet LAN (RJ-45) ports1
- Maximum Data Transfer Rate574 Mbit/s
