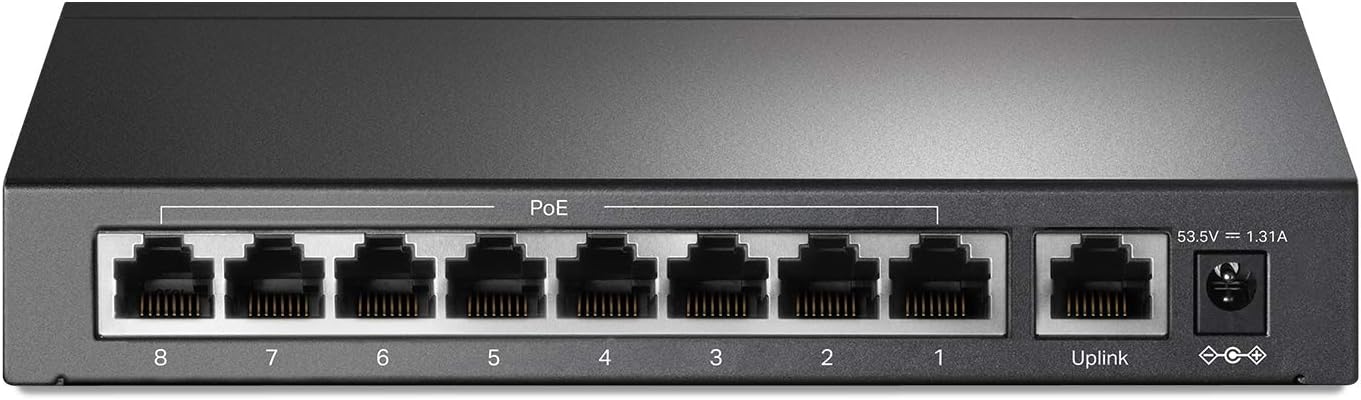

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+( TL-SF1009P)

Model

TL-SF1009P

Interface

• 9× 10/100 Mbps RJ45 Ports
• 8× PoE+ Ports (802.3af/at compliant)
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP Cat 3/4/5 (up to 100m)
• 100BASE-TX: UTP Cat 5/5e (up to 100m)
• EIA/TIA-568 100Ω STP (up to 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

53.5V DC / 1.31A (External Adapter)

Packet Forwarding Rate

1.3392 Mpps

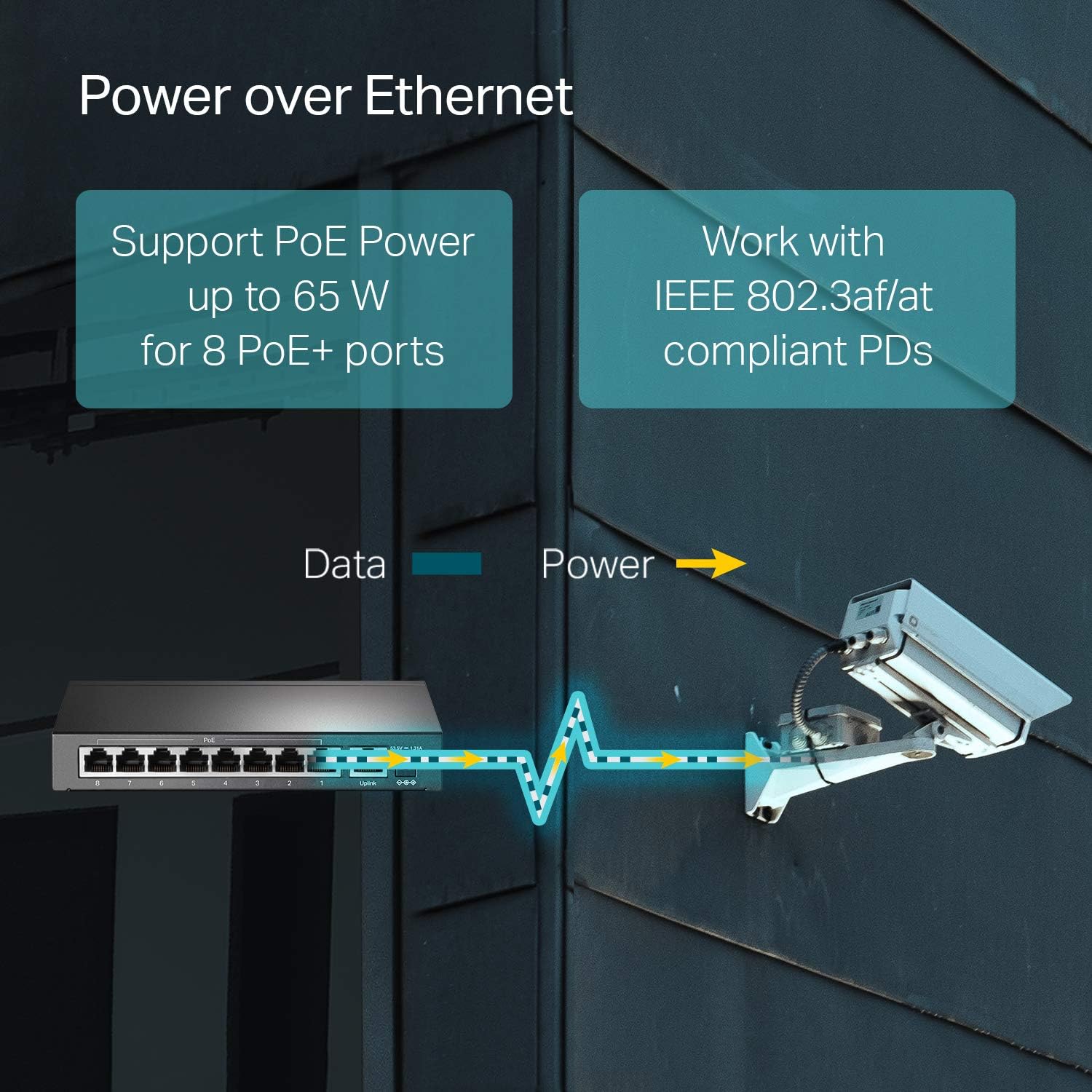

PoE Ports (RJ45)

• Ports 1–8
• PoE Budget: 65 W
• IEEE 802.3 af/at compliant

MAC Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1.8 Gbps

Dimensions (W × D × H)

171 × 98 × 27 mm (6.7 × 3.9 × 1.1 in)

Max Power Consumption

• 3.6 W (no PD connected)
• 77.08 W (with 65 W PD connected)

Max Heat Dissipation

• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)

Advanced Features

• IEEE 802.3af/at Compatible
• Extend Mode Button (Ports 1–4 or 1–8: up to 250m PoE & data)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• MAC Address Auto-Learning & Auto-Aging
• IEEE 802.3x Flow Control & Backpressure

Transmission Method

Store-And-Forward
