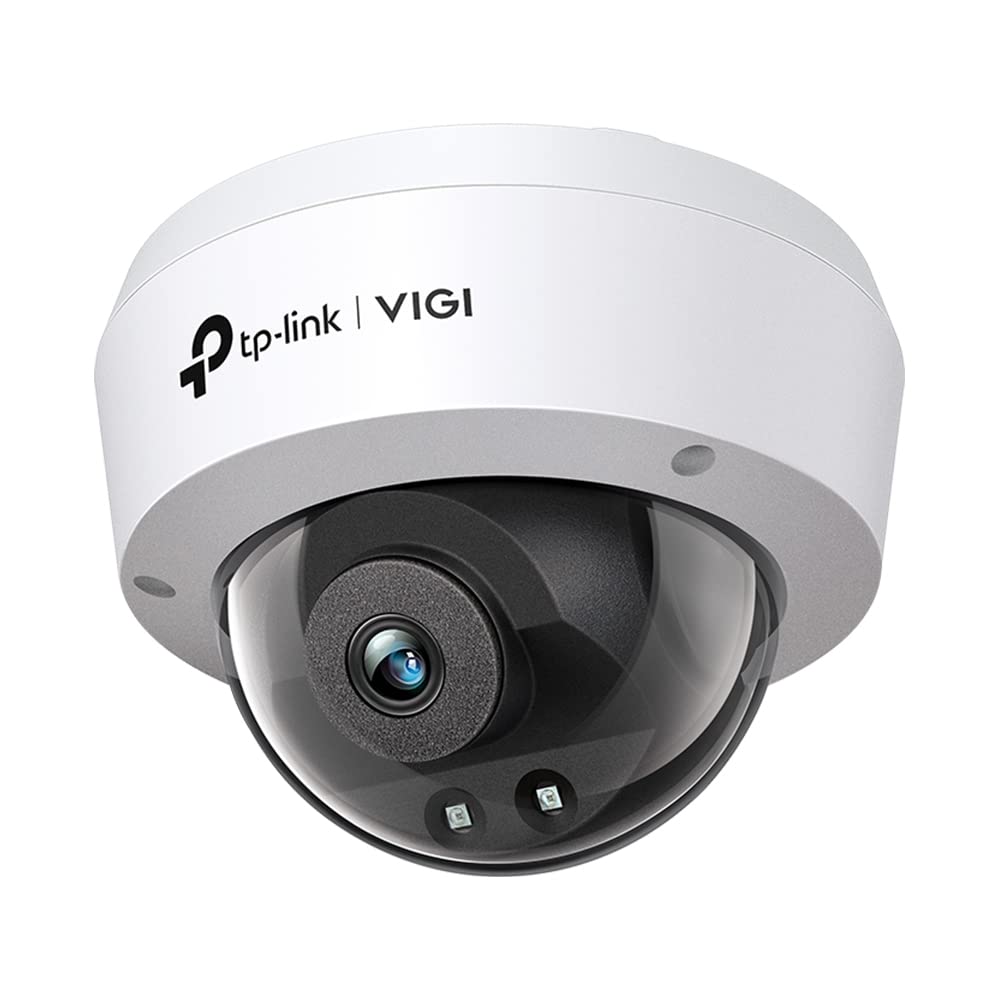

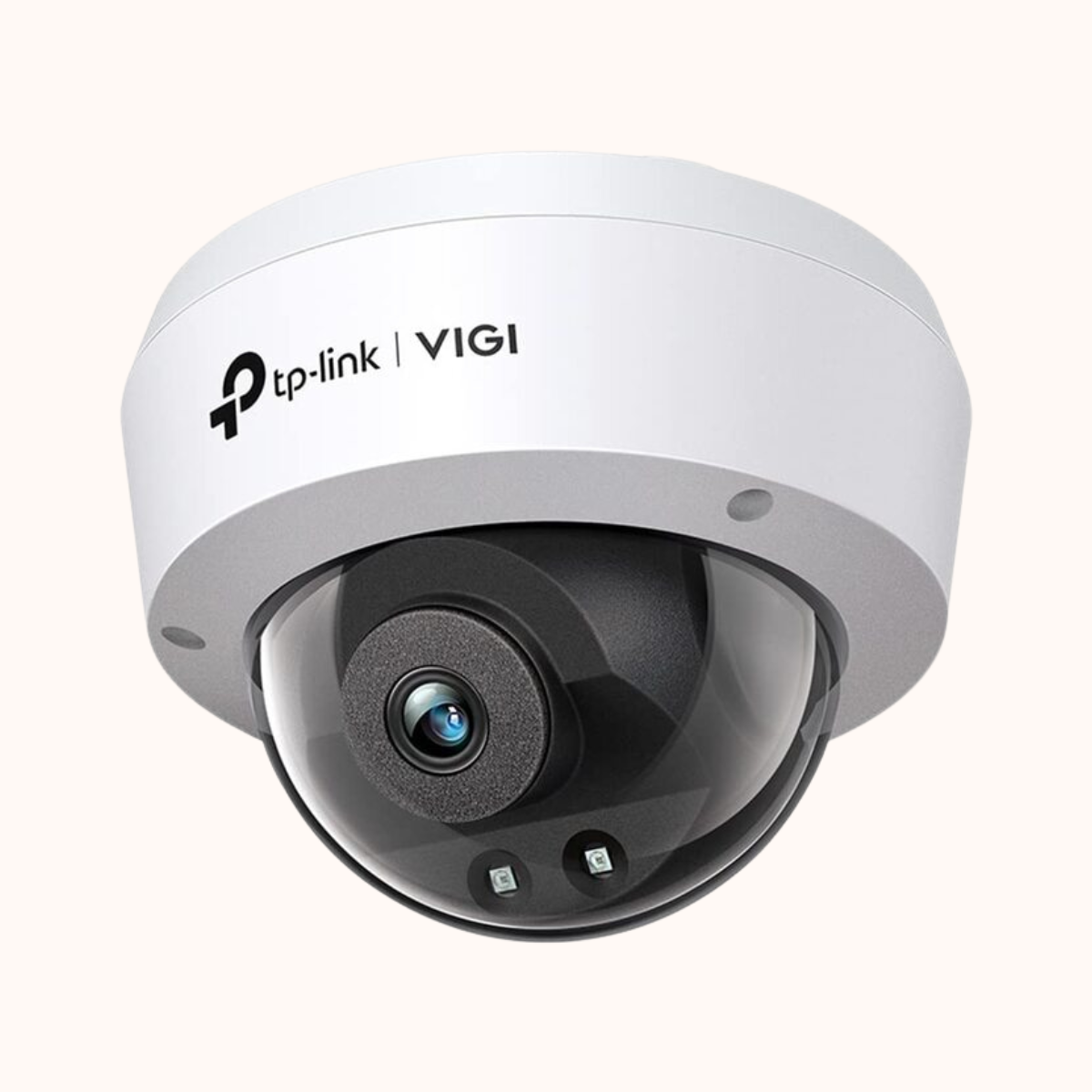

TP-Link VIGI (2.8mm) 3MP IR Dome Network Camera-C230I

Image Sensor

1/2.8” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Aperture

2.8 mm: F2.2
4 mm: F2.0

Lens

2.8 mm / 4 mm

Lens Mount

M12

Min. Illumination

Color: 0.1 Lux; 0 Lux with IR

Day/Night

IR Cut Filter, Unified/Scheduled/Auto Switch

Digital Noise Red.

3D DNR

WDR

DWDR

Weatherproof

IP67

IR Distance

30m

Viewing Angle

2.8 mm: H: 97.8°, V: 52.9°, D: 117.9°
4 mm: H: 82.5°, V: 44.9°, D: 99.3°

Focal Length

2.8 mm / 4 mm

Aperture

2.8 mm: F2.2
4 mm: F2.0

FOV (2.8 mm)

H: 97.8°, V: 52.9°, D: 117.9°

FOV (4 mm)

H: 82.5°, V: 44.9°, D: 99.3°

Lens Mount

M12

2.8 mm

49 m (161 ft)

20 m (67 ft)

10 m (32 ft)

5 m (16 ft)

4 mm

65 m (214 ft)

27 m (89 ft)

13 m (43 ft)

7 m (21 ft)

IR LED

Quantity: 2, Range: 30m, Wavelength: 850nm

White LED

Auto/Scheduled/Always on/Always off

Illuminator Control

N/A
