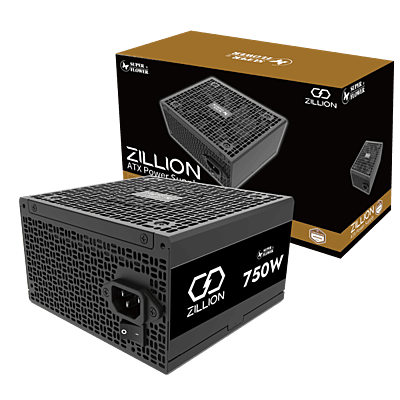

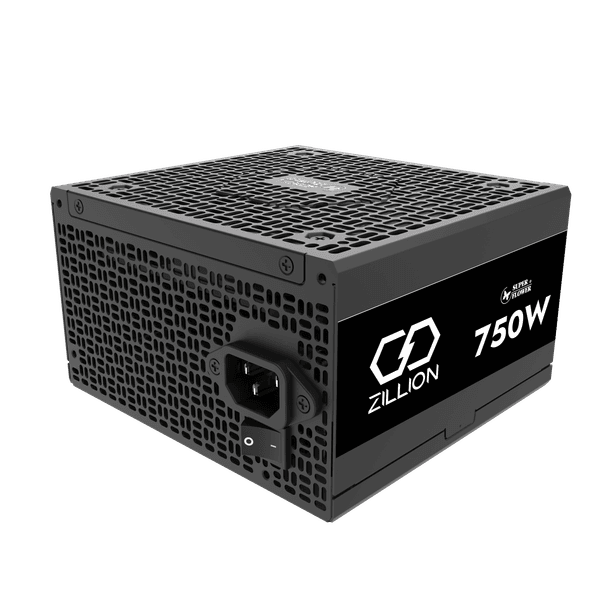

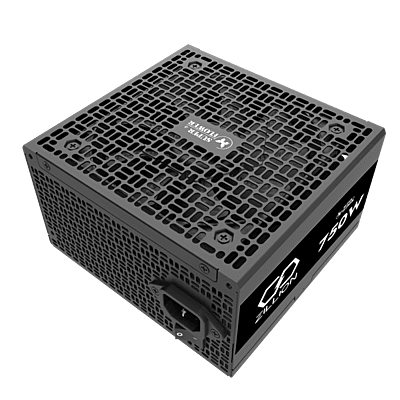

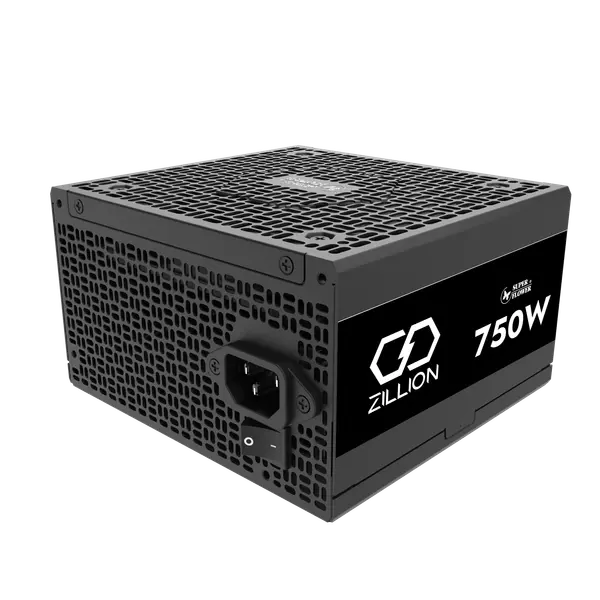

Superflower 750W Zillion Bronze Power Supply - SF-750Z12DB
Feature | Details |
|---|---|
Model | Zillion DB Silver 750W ATX 3.1 |
Wattage | 750W |
Efficiency | ≥87% and <89% overall efficiency (230V input) |
Intel Power Design | ATX 12V v3.1 and EPS 12V v2.92 Specification |
AC Input / Frequency | 200V–240V |
Fan Size | 120mm HDB (Hydraulic Dynamic Bearing) Fan |
Dimensions (L×W×H) | 140mm × 150mm × 86mm (14.0 cm × 15.0 cm × 8.6 cm) |
Protection Features | OVP (Over Voltage), OCP (Over Current), OTP (Over Temperature), SCP (Short Circuit), OPP (Over Power), NLP (No Load) |
Safety Certifications | TÜV, CB, CE, RoHS, FCC, KC & KCC |
Weight | Approx. 1.5 kg |
Feature | Details |
|---|
CPU & Motherboard Support | Supports all Intel / AMD multi-core CPUs and ATX / BTX compatible motherboards |
Graphics Card Compatibility | Supports NVIDIA® SLI™ & ATI CrossFireX™ high-performance graphic cards |
Efficiency Certification | Cybenetics Silver Certified (≥87% and <89% overall efficiency) |
Compliance | ATX 12V v3.1 and EPS 12V v2.92 Specification |
PCI-E Connector | PCI-E (6+2) pin connector for high-end GPU requirements |
Protection Features | OVP (Over Voltage), OCP (Over Current), OTP (Over Temperature), SCP (Short Circuit), OPP (Over Power), NLP (No Load) |
Cable Design | All flat cables for improved airflow and easy cable management |
Power Platform | DC-to-DC platform for stable voltage output and higher reliability |
Main Capacitor | 105°C-rated high-quality Taiwanese main capacitor |
General
- Wattage750 Watt
- ModularNo
- Connector TypeATX
