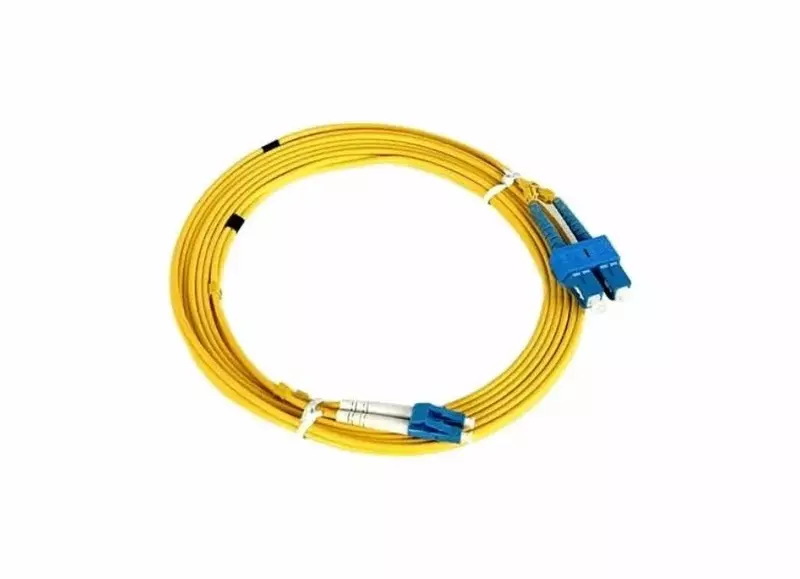

D-Link LC-LC OM1 MM Fiber Patch Cord (NCB-FM62D-LCLC-3)-(Cent)
LC to LC Duplex: Connects two LC fiber optic ports with duplex configuration for bidirectional data transfer
OM1 Multimode Fiber: Supports standard data transfer speeds over shorter distances, suitable for older network setups
3 Meter Length: Ideal for medium-range fiber optic connections in enterprise or data center networks
Centum Series: Part of D-Link's Centum series, offering high-quality, reliable fiber optic solutions for networking systems
Feature | Description |
|---|---|
Model | D-Link NCB-FM62D-LCLC-3-(Cent) |
Type | LC-LC Multi-Mode OM1 Fiber Patch Cord |
Fiber Type | Multi-Mode (MM) Fiber |
Cable Length | 3 meters |
Connector Type | LC to LC Duplex Fiber Optic Connectors |
Core Diameter | 62.5/125 µm (microns) |
Wavelength | 850 nm |
Fiber Mode | OM1 Fiber (Standard for general-purpose multi-mode fiber applications) |
Operating Bandwidth | 200 MHz·km bandwidth at 850 nm, suitable for short-distance and lower-bandwidth applications |
Transmission Distance (at 10Gbps) | Up to 33 meters |
Jacket Material | LSZH (Low Smoke Zero Halogen) material for safety, minimizing smoke and toxic fumes during a fire |
Connector Material | Ceramic Ferrules for low insertion loss and reliable, stable connections |
Applications | - Ideal for networking, data centers, telecommunications, and fiber optic applications in short-range, lower-speed data networks |
Weight | 0.25 kg (0.55 lbs) |
Dimensions (H x W x D) | 3.0 mm outer diameter cable |
Color | Beige to signify OM1 Multi-Mode Fiber |
Durability | - Durable for reliable performance in industrial environments - Resistant to mechanical stress and bending |
Insertion Loss | Low insertion loss for better signal integrity and efficient transmission |
Flexibility | Flexible for installation in tight spaces and with complex cable routing |
Compliance | - RoHS Compliant - CE Certified |
Connector Polarity | Straight-through (LC to LC) for easy fiber optic connectivity |
Warranty | 1-Year Limited Warranty |
Additional Features | - Suitable for short-range, lower-speed fiber optic applications - Provides stable, reliable connectivity in 10/100/1000Mbps Ethernet and low-distance networks |
