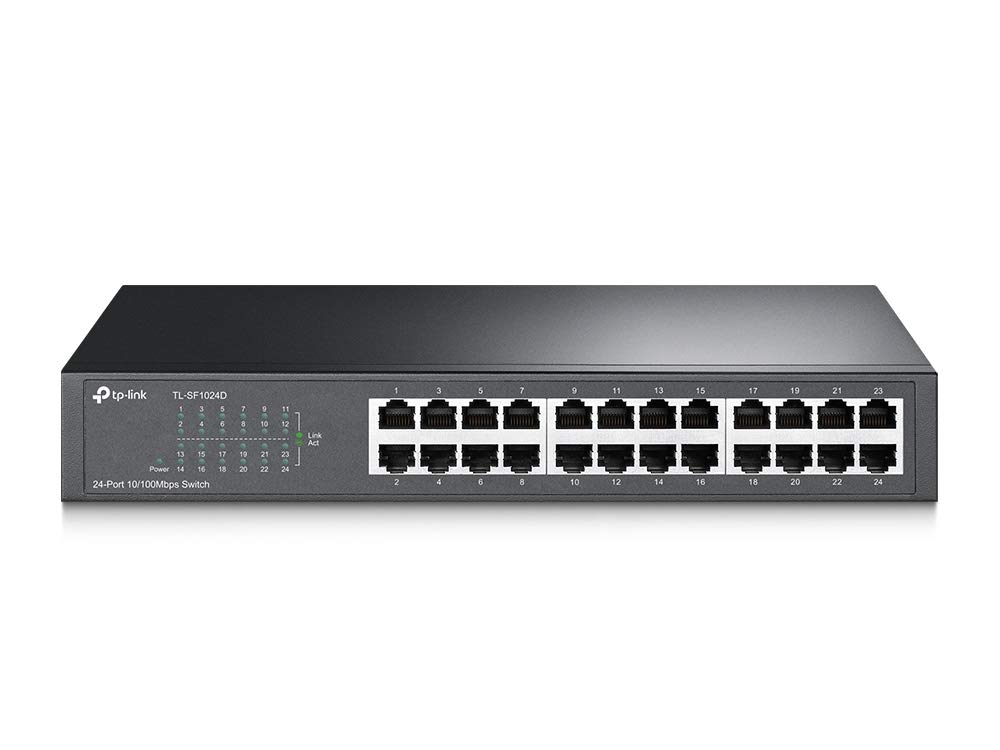

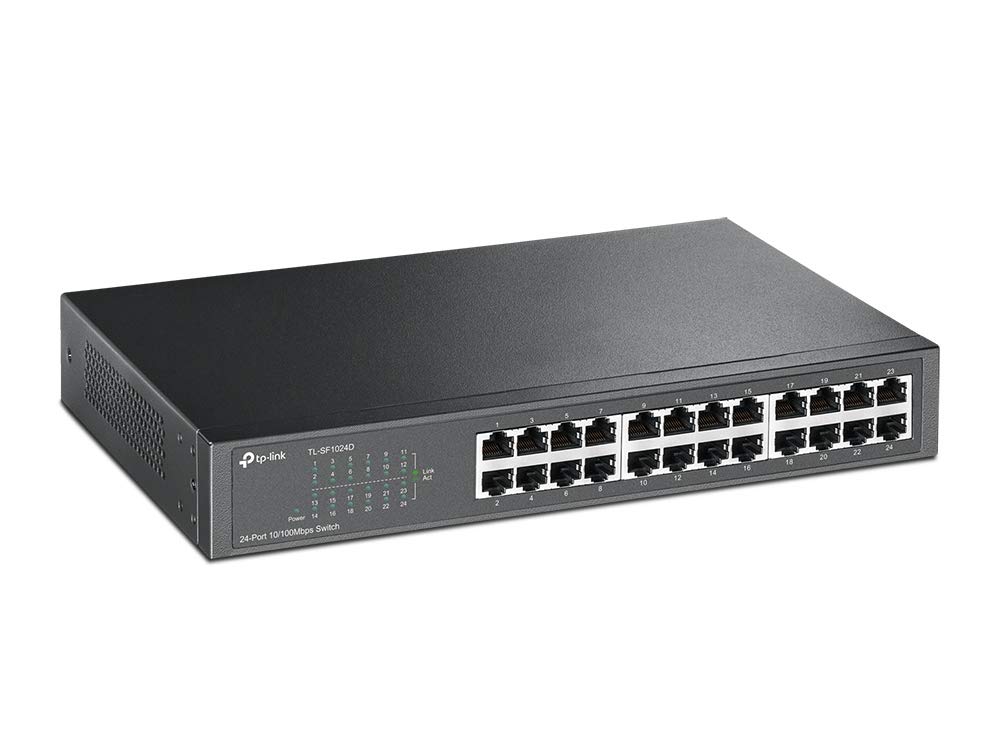

TP-Link 24-port 10/100Mbps Desktop/Rackmount Switch-TL-SF1024D
Attribute | Details |
|---|---|
Brand | TP-Link |
Number of Ports | 24 |
Included Components | 24-Port 10/100Mbps Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
Colour | Black |
Compatible Devices | Desktop |
Category | Details |
|---|---|
Hardware Features | |
Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Interface | 24× 10/100Mbps RJ45 Ports (Auto Negotiation / Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP Cat 3/4/5 (max 100m); 100BASE-TX: UTP Cat 5/5e+ (max 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |

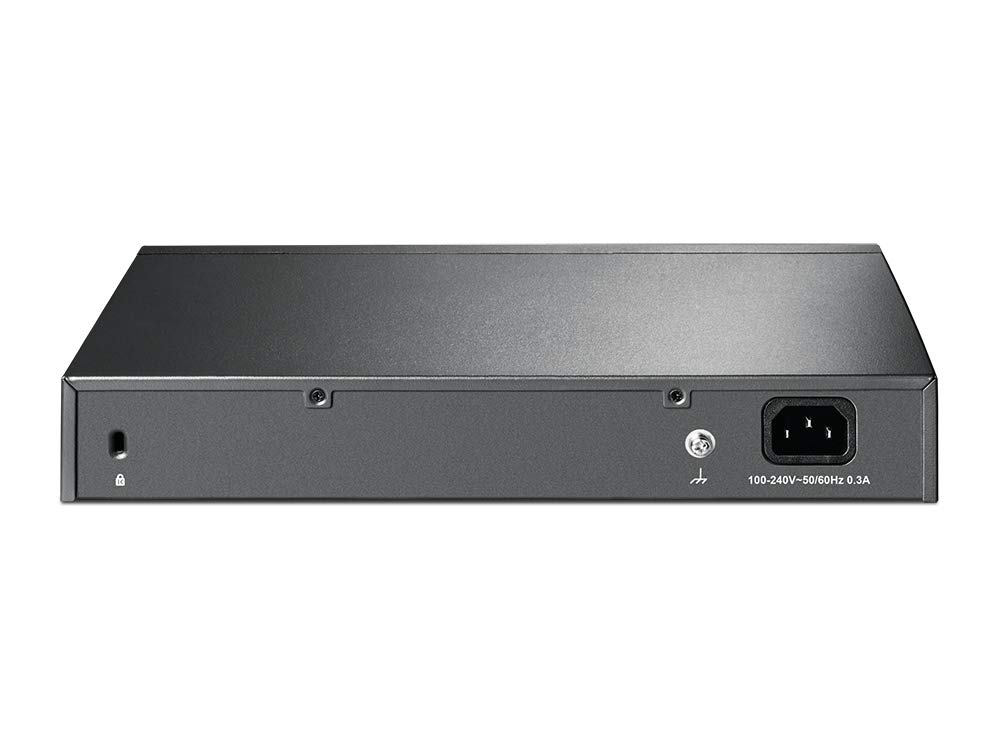

Power Supply | 100–240VAC, 50/60Hz |
Dimensions (W × D × H) | 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max. Power Consumption | 3.19 W (220V/50Hz) |
Max Heat Dissipation | 10.88 BTU/h |
Performance | |
Switching Capacity | 4.8 Gbps |
Packet Forwarding Rate | 3.57 Mpps |
MAC Address Table | 8K |
Buffer Memory | 2 Mb |
Green Technology | Energy-efficient technology saves up to 75% power |
Transmission Method | Store-and-Forward |
Others | |
Certification | FCC, CE, RoHS |
Package Contents | 24-Port 10/100Mbps Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
General
- TypesUnManaged
- Switching Capacity4.8 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports24
- No. Of Power Supplies Supported1
- Rack MountingYes
