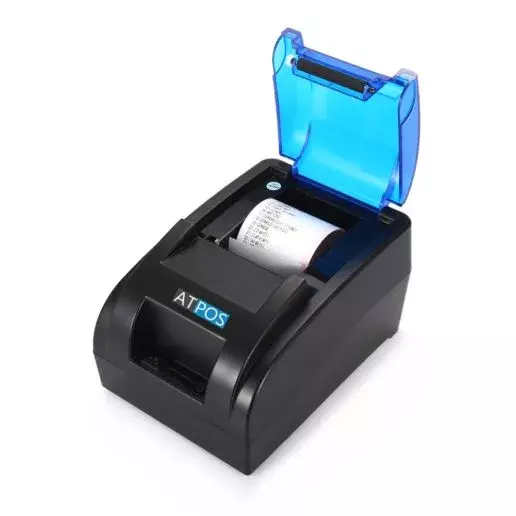

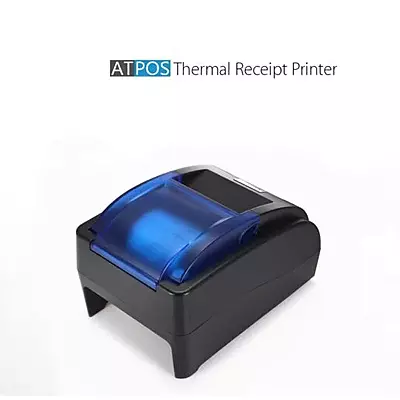

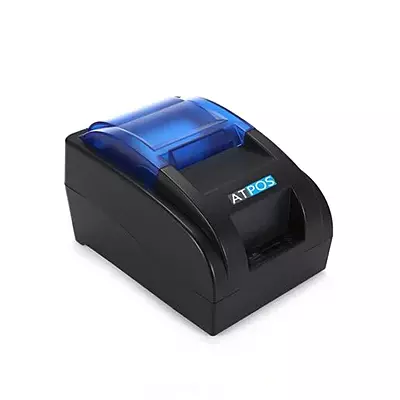

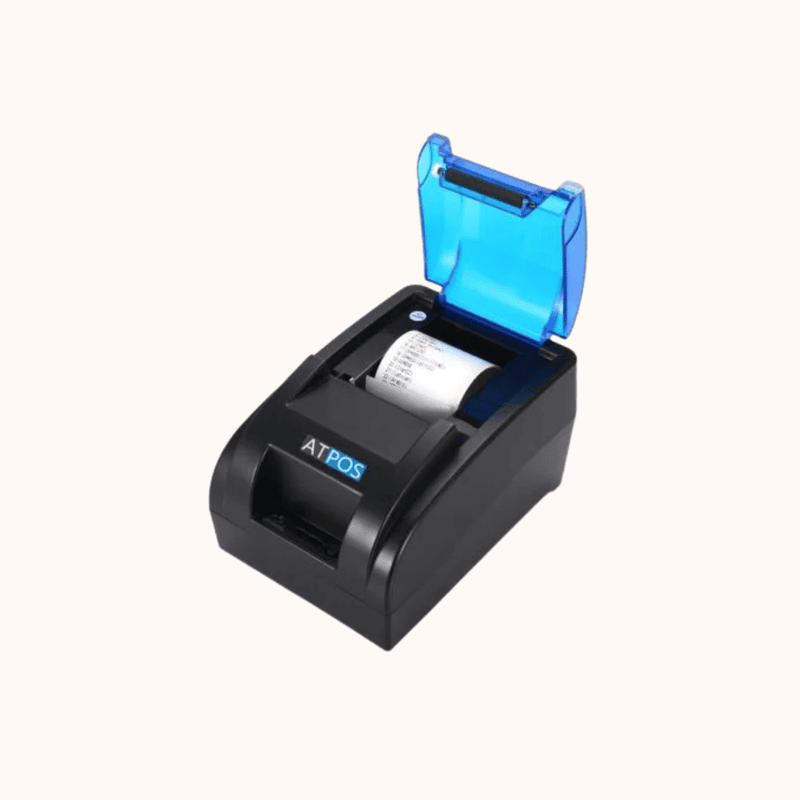

Atpos H58 58mm USB Thermal Receipt Printer
✔ ADVANTAGE: The 58mm USB thermal receipt printer support cash drawer driving, compatible ESC/POS print commands, support bitmap and download graphics printing.
✔COST-EFFECTIVE：Quality printing and low cost, Low noise, and high-speed printing.
✔EASY INSTALL： The USB Pos Printer is simple and convenient to operate, quick and easy paper change, easy maintenance.
✔LIGHTWEIGHT: Built-in power supply design to save space (Small Size), ideal for bill printing in POS systems, supermarkets, retail stores, restaurants, etc.

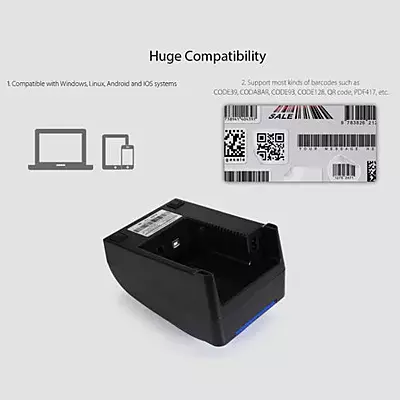

✔Compatible OS: All Window Systems Versions; Linux Operate Systems
Product Specifications
Model | H58 |
|---|---|
Printing Method | Thermal Receipt Printer – Not Label/Sticker |

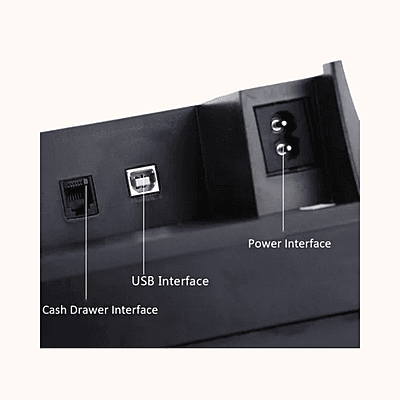

Interface | USB Only |

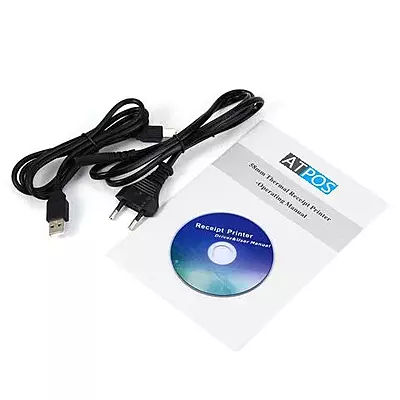

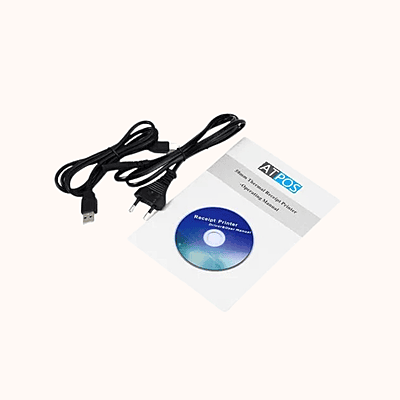

Standard Accessories | Roll Paper x 1, CD-ROM (Drivers, Utility Software, Manuals), USB Cable, Power Cable |
Weight | 0.75kg |
Technical Specifications
Brand | Atpos |
|---|---|
Font | 9×17 / 12×24, Hanji Font: 24×24, Thai Font: 9×24 / 12×24 |
Character Size (W x H) | 0.88×2.13mm / 1.25x3mm, Hanji Font: 3x3mm, Thai Font: 0.88x3mm / 1.25x3mm |
Character Set | 95 Alphanumeric, 18 set International, 128×43 pages (including user-defined page) Hanz Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODEBAR (NW-7), CODE93, CODE128, GS1-128, Gs1 DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D Gs1 DataBar Composite Symbology |
Characters Per Inch | 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font : 22.6cpi / 16.9cpi |
Installation | Horizontal |
Buffer | 2048K bytes, NV Flash: 256K bytes |

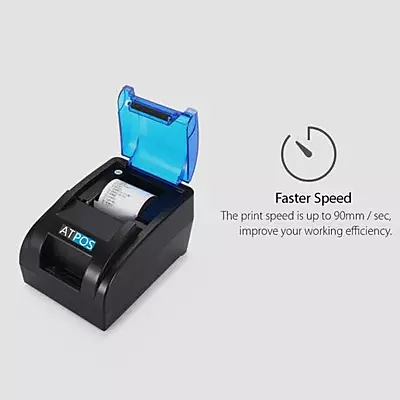

Print Speed | Max 90mm/s |
Dot Density | 384dots/Line(8dots/mm,203dpi) |
Paper (Roll Paper (Width & Roll Diameter) | 57.5 ± 0.5 (W) × dia. 83.0 |
Power | DC +12V ± 5% |
Operating | Approx. 3A (Mean/Print ratio 18% with print pattern) |
Standby | Approx. 0.1A (Mean) |

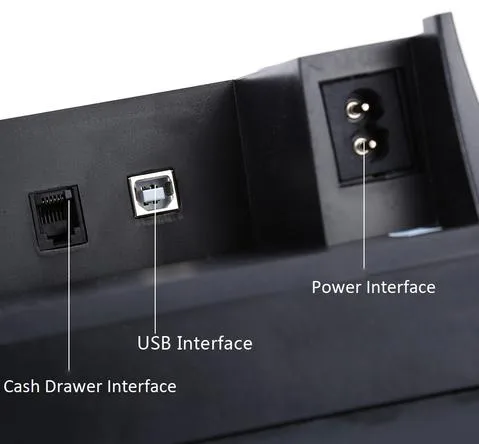

Cash Drawer Power Supply | DC 12V 1A |
Cash Drawer Integration | Yes Supported |

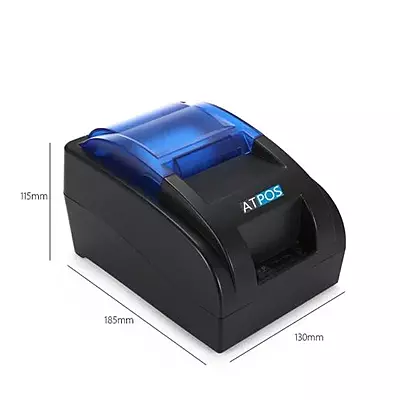

Dimensions (D x W x H) | 185x115x130mm |
Printer Head Life | 100KM (Print Density <12.5) |
Cutter | Manual Blade 100,000 Times |
Warranty | 1 year |
General
- Type Of PrinterReceipt Printers
- InterfaceUSB
Print Details
- Printing MethodThermal Receipt Printer – No Label/Sticker
- Resolution203 DPI
- Printing SpeedMax 90mm/s
- Buffer2048K bytes NV Flash: 256K bytes
- CutterManual Blade
- PowerDC +12V ± 5%
