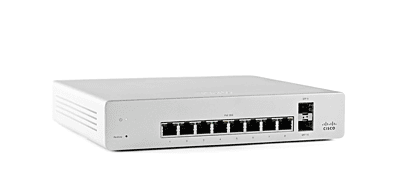

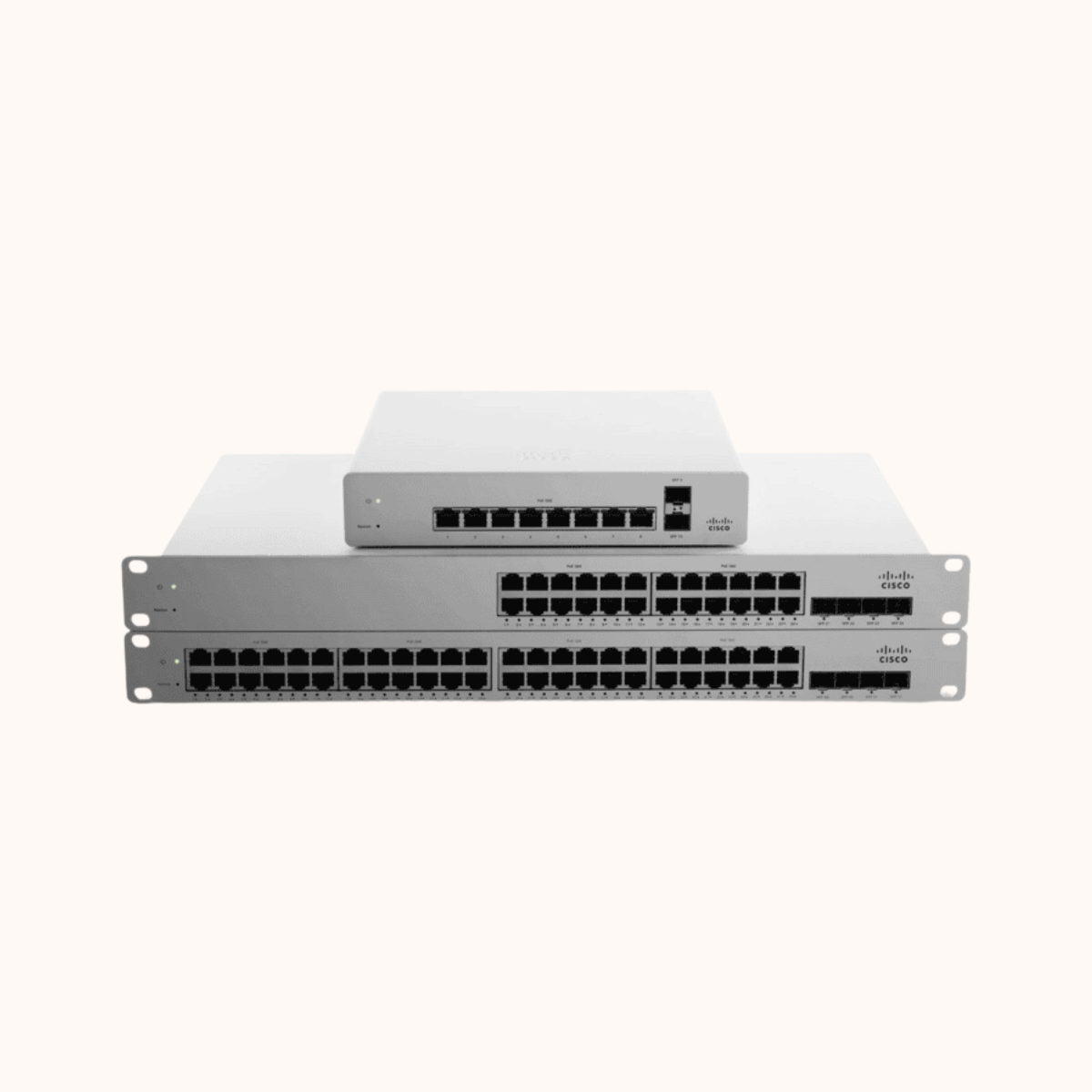

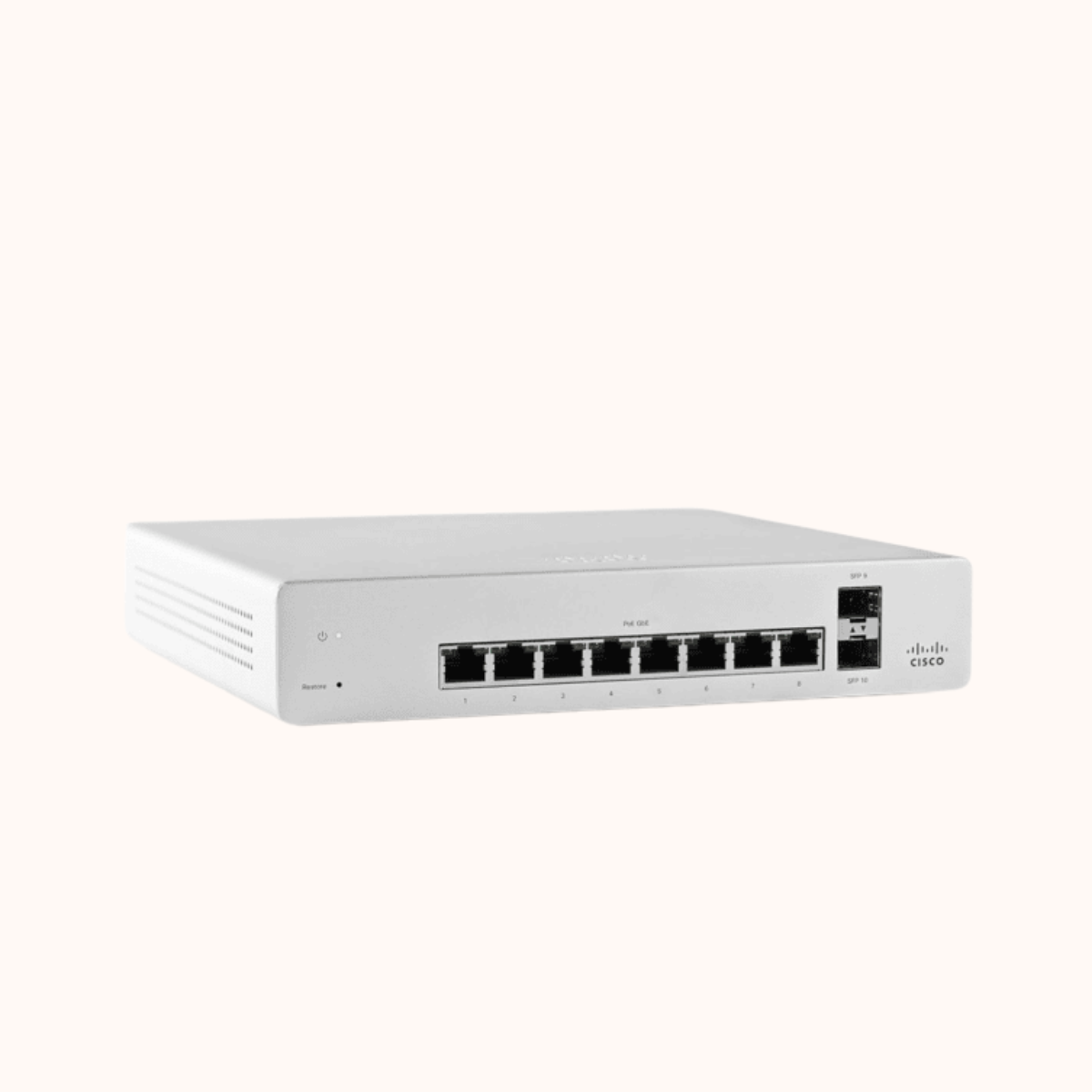

Cisco Meraki Cloud Managed 8 Port Gigabit Ethernet Switch – MS220-8P

Ethernet Ports

- 8 × 10/100/1000BASE-T (RJ45) with auto-MDIX - Auto negotiation & crossover detection

Uplink Interfaces

2 × SFP Gigabit Ethernet

PoE (MS220-8P only)

- 802.3af (15.4 W/port), 802.3at (25.5 W/port) - Max PoE Output: 124 W - PoE available on all ports - Supports pre-standard PoE

Switching Capacity

20 Gbps non-blocking switching fabric

Latency

2.5 microseconds

Power Input

100–240 VAC, 47–63 Hz

Power Consumption

13 W (Idle) / 159 W (Max load - MS220-8P)

Dimensions (HxWxD)

9.06" x 8.66" x 1.79" (23 x 22 x 4.54 cm)

Layer 2 Features

- VLANs (802.1Q, Q-in-Q) - QoS (802.1p) - STP/RSTP - LLDP - Link Aggregation (802.3ad) - IGMP Snooping - MAC Table: 8,000 entries

Security

- IEEE 802.1X - Two-factor authentication - Role-based admin - Password policy enforcement

Management

- Cloud-managed via Meraki Dashboard - Remote deployment - Per-port/client usage stats - DHCP & hostname fingerprinting - SNMP v2c - Web-based firmware upgrades

Remote Diagnostics

- Email & SMS alerts - Live remote packet capture - Event logs with search
