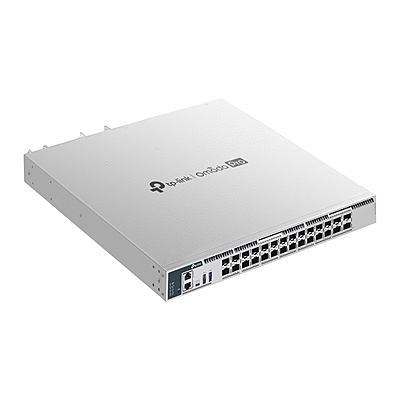

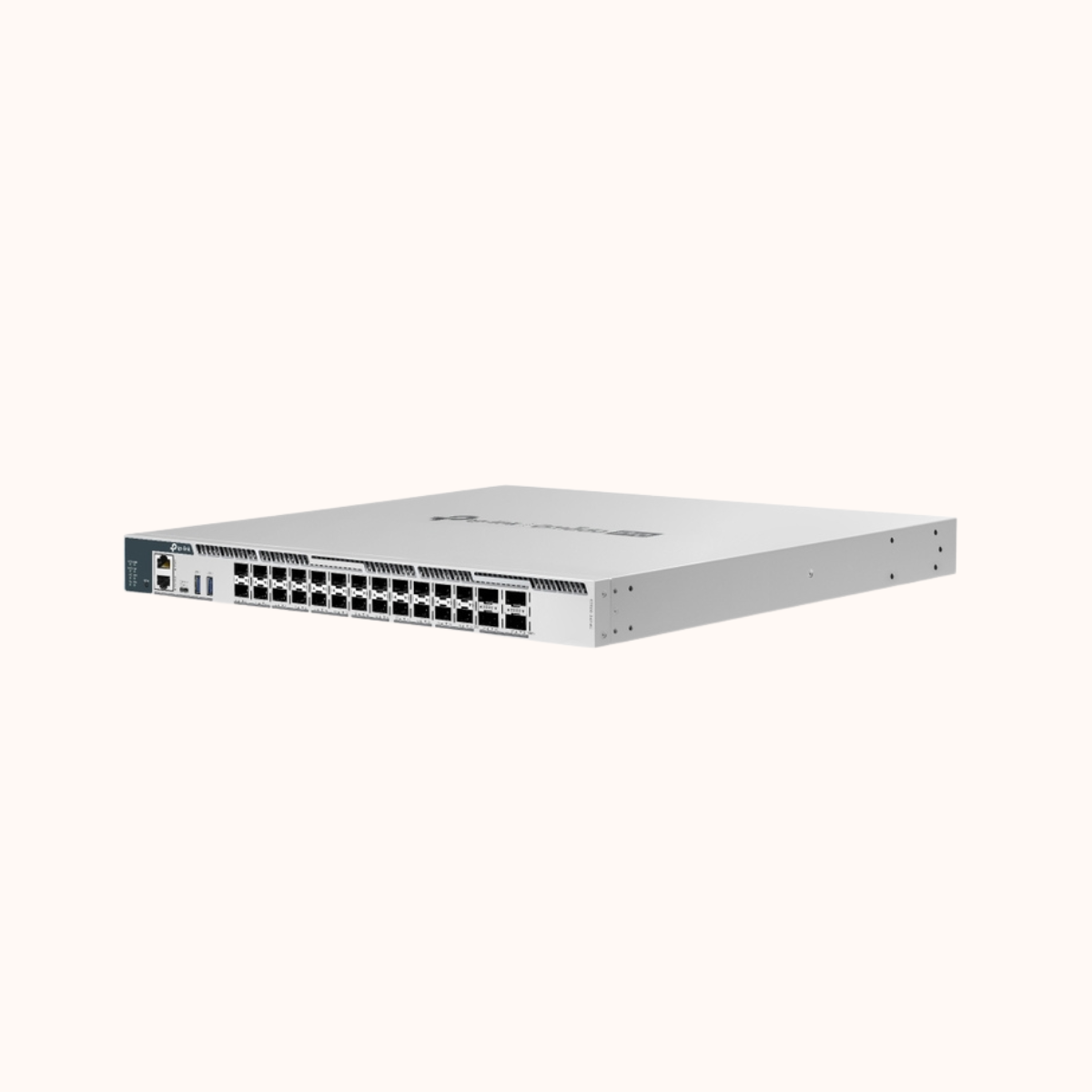

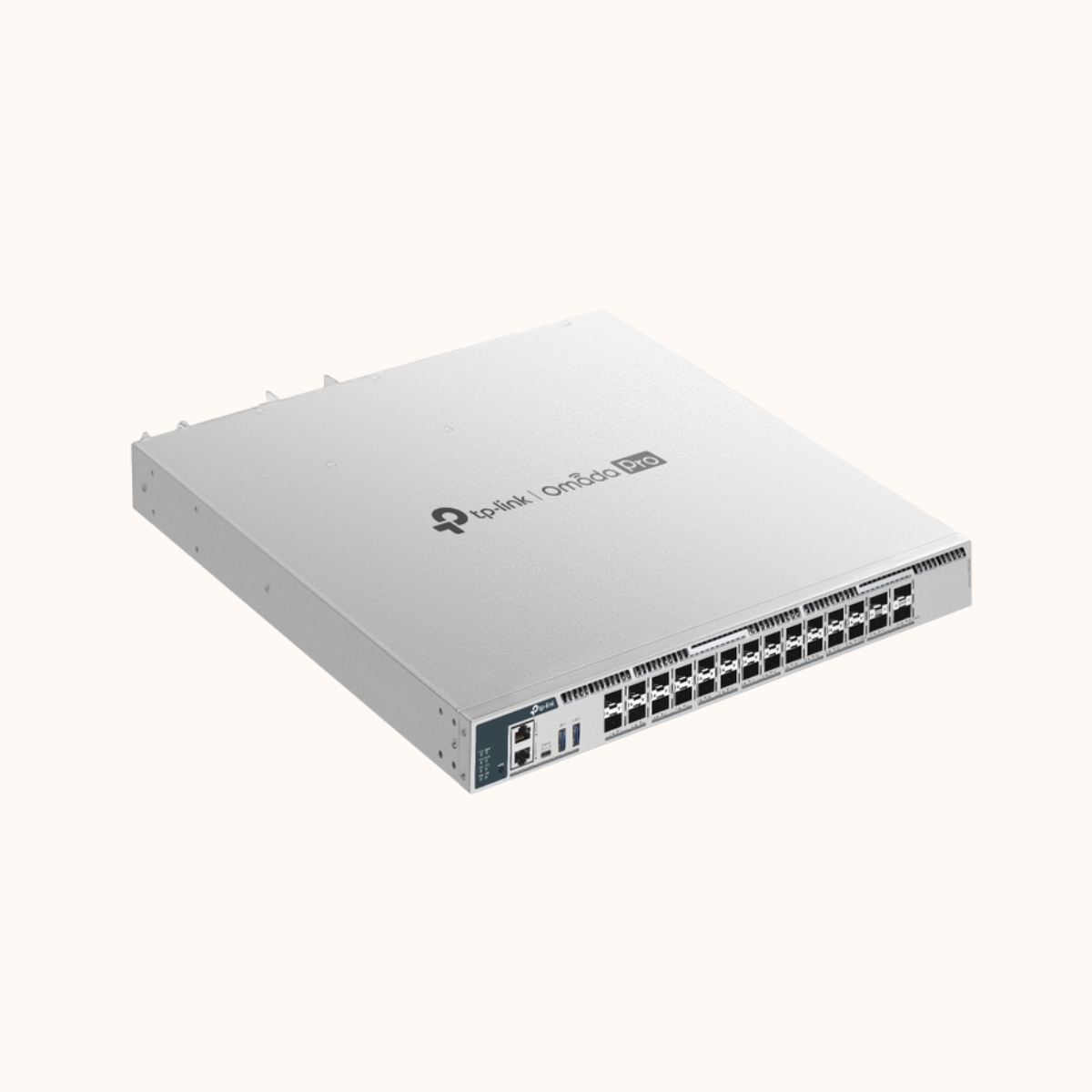

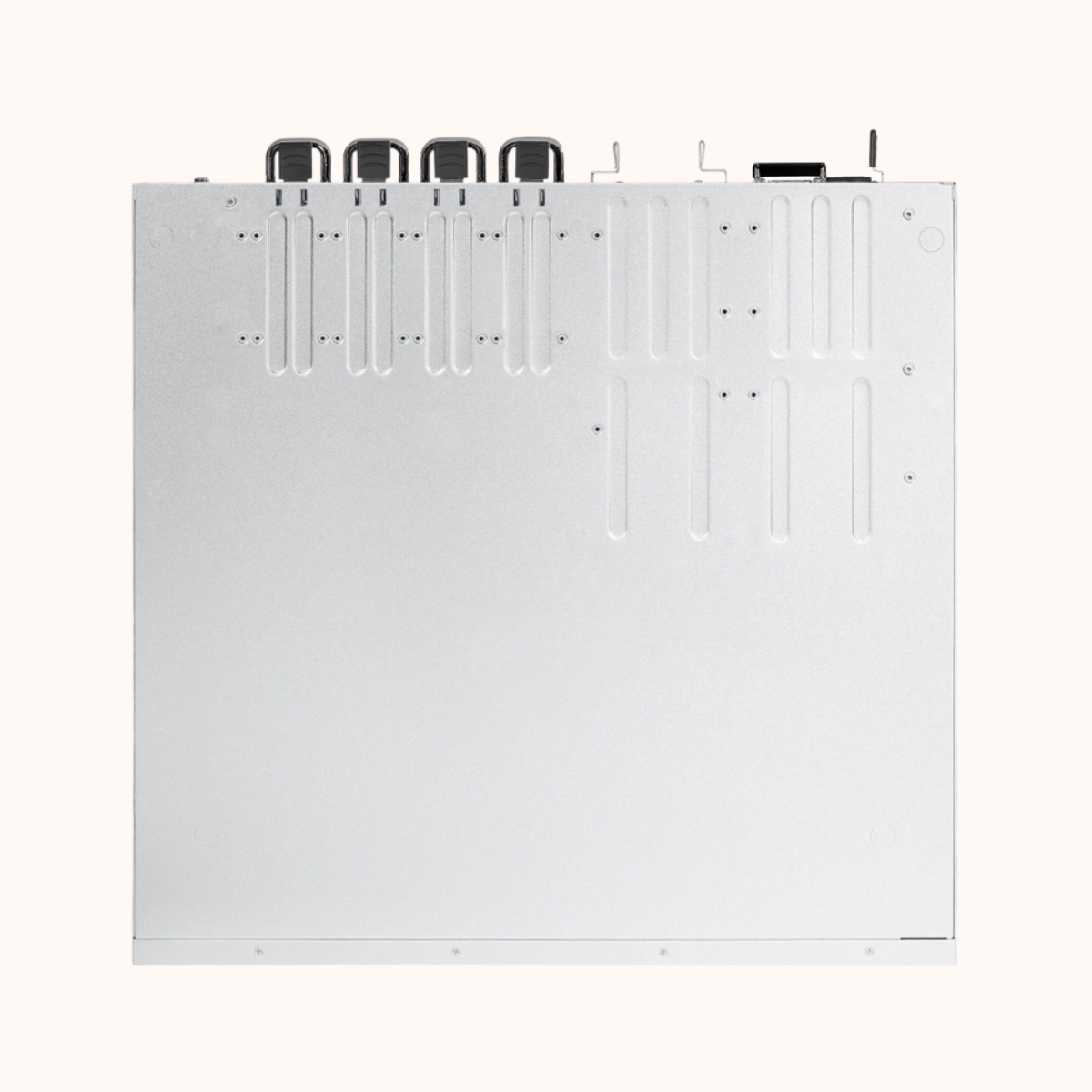

TP-Link Omada Pro 24-Port 25G Stackable L3 Managed Switch 4 100G Slots-S7500-24Y4C

Hardware Features

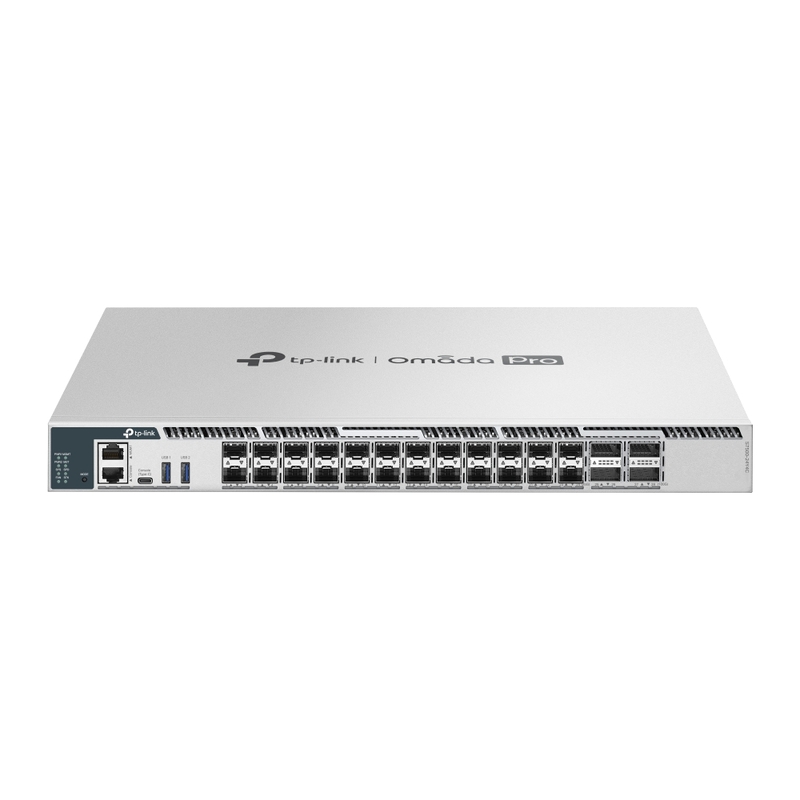

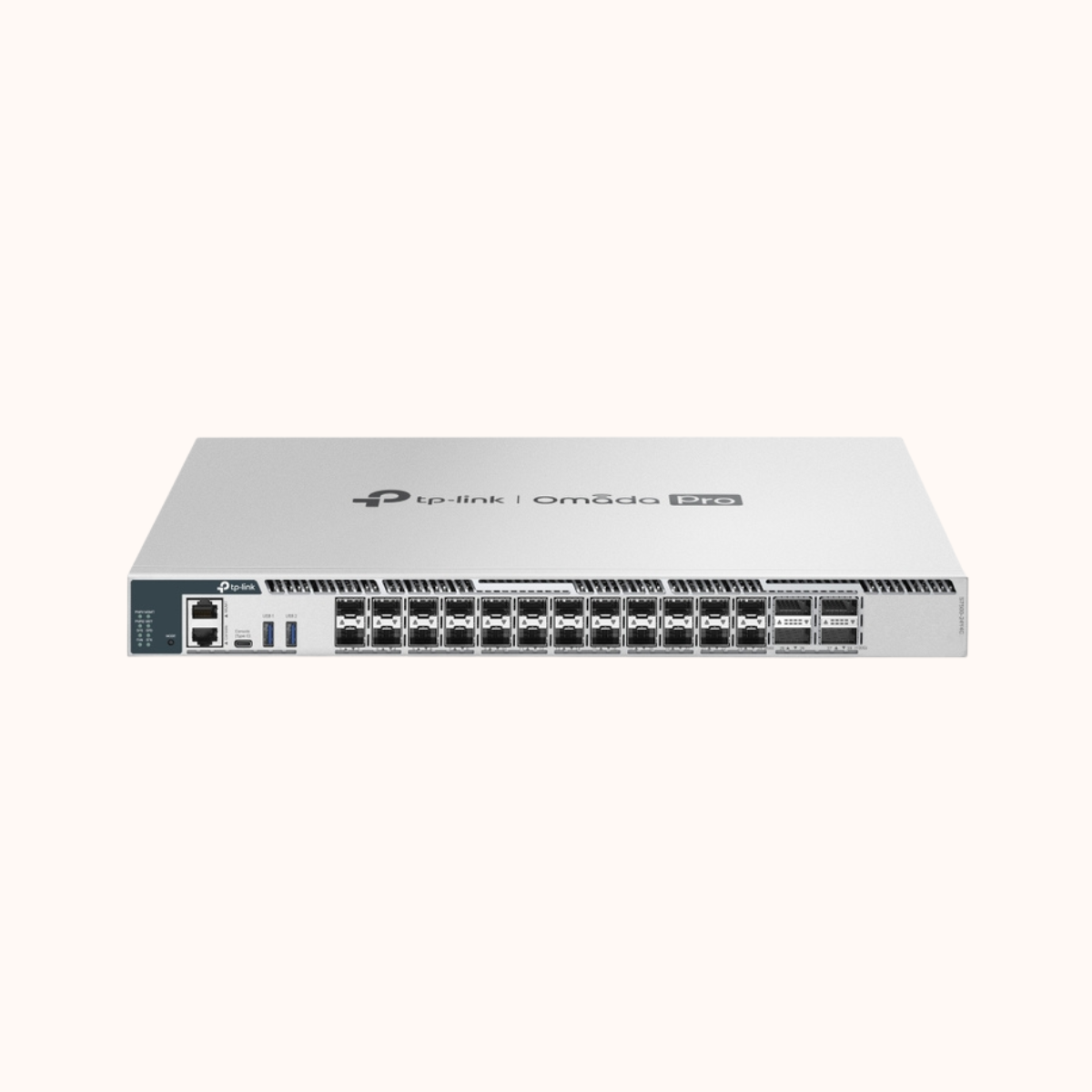

24× 1/10/25G SFP28 Slots, 4× 40/100G QSFP28 Slots, 2× USB 3.0, RJ45 Console/Management, USB Type-C

Power Supply

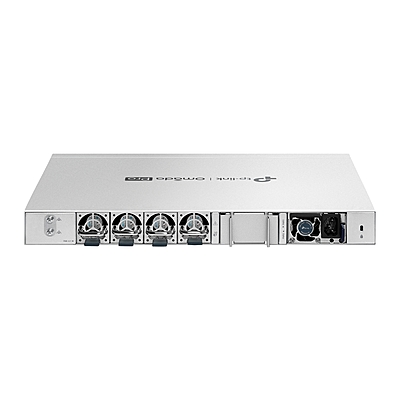

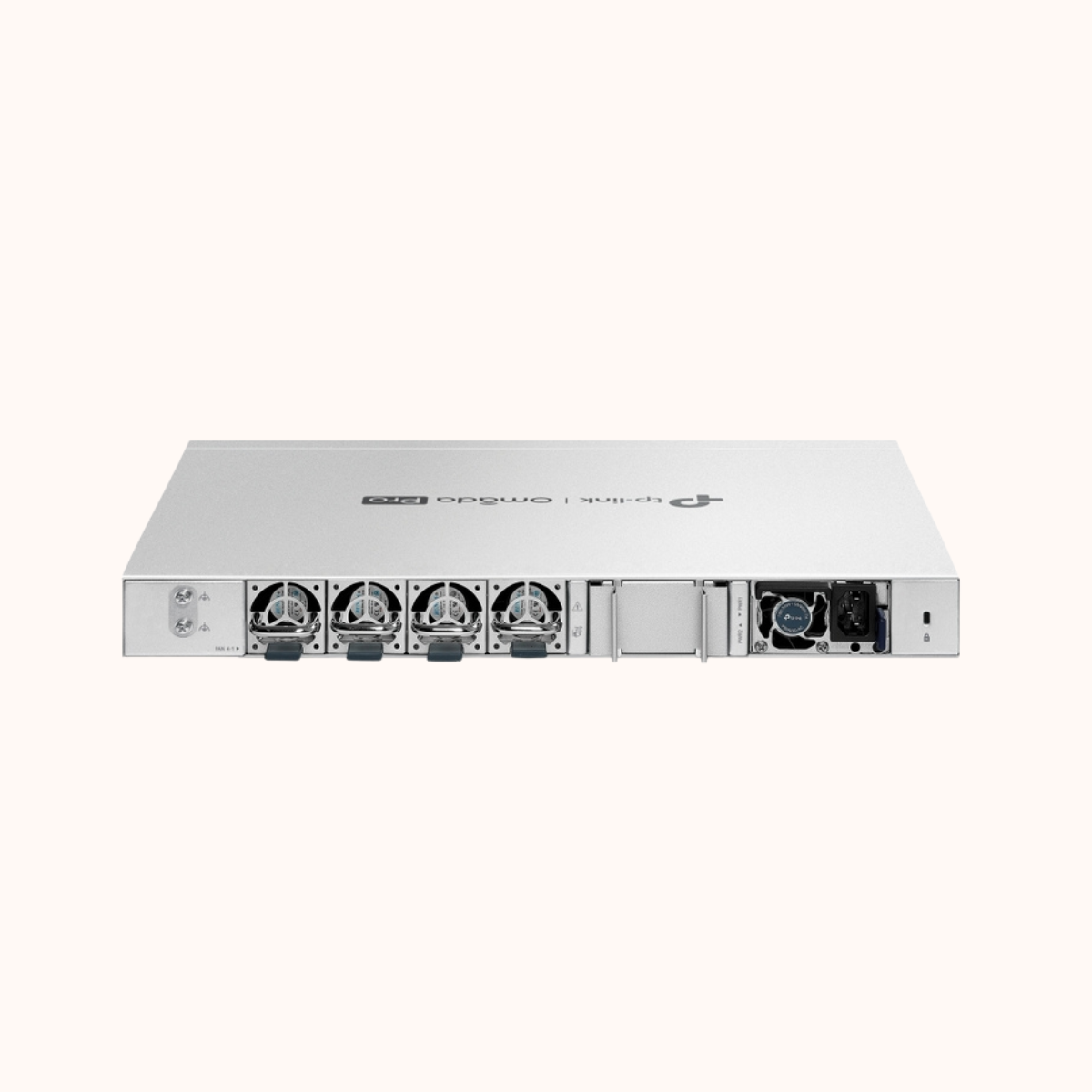

Two Field-replaceable & Hot-swappable Power Supply Modules (100–240V AC)

Cooling

4 Field-replaceable, Hot-swappable Fans

Performance

2000 Gbps Switching Capacity, 810 Mpps Forwarding Rate, 128K MAC Address Table

Stacking

Up to 12 Units, 100G QSFP28 Stacking Ports, 800 Gbps Stack Bandwidth

QoS Features

8 Queues, Priority Classifications (802.1p, DSCP), Rate Limiting, Storm Control

L3 Features

256 IPv4/IPv6 Interfaces, 2048 Static Routes, 1024 Static ARP, VRRP, OSPF, RIP, BGP

L2 & L2+ Features

Link Aggregation, STP/RSTP, Port Mirroring, Loop Detection, ERPS, IGMP Snooping

Multicast Features

IGMP Snooping v1–v3, MLD Snooping, Multicast Filtering, MVR

Advanced Features

Auto Device Discovery, Batch Configuration, Intelligent Monitoring, sFlow, OAM

VLAN Support

4K VLAN Groups, 802.1Q Tagged, QinQ (256 entries), Voice VLAN, GVRP, Private VLAN

Security

IP-MAC-Port Binding, ARP Inspection, DoS Defense, Port Security, Source Guard

Virtualization

IP Tunnel (IPv6 over IPv4, GRE), Max 100 Tunnel Entries

Management

Web GUI, CLI (Console/Telnet), SNMPv1/v2c/v3, Omada Pro Controller, Zero-Touch Provisioning

Cloud Access

Yes, via Omada Pro Controller

Zero-Touch Provisioning

Yes, via Omada Pro Cloud-Based Controller

MIB Support

MIB II, RMON, RADIUS MIBs, TP-Link Private MIB
