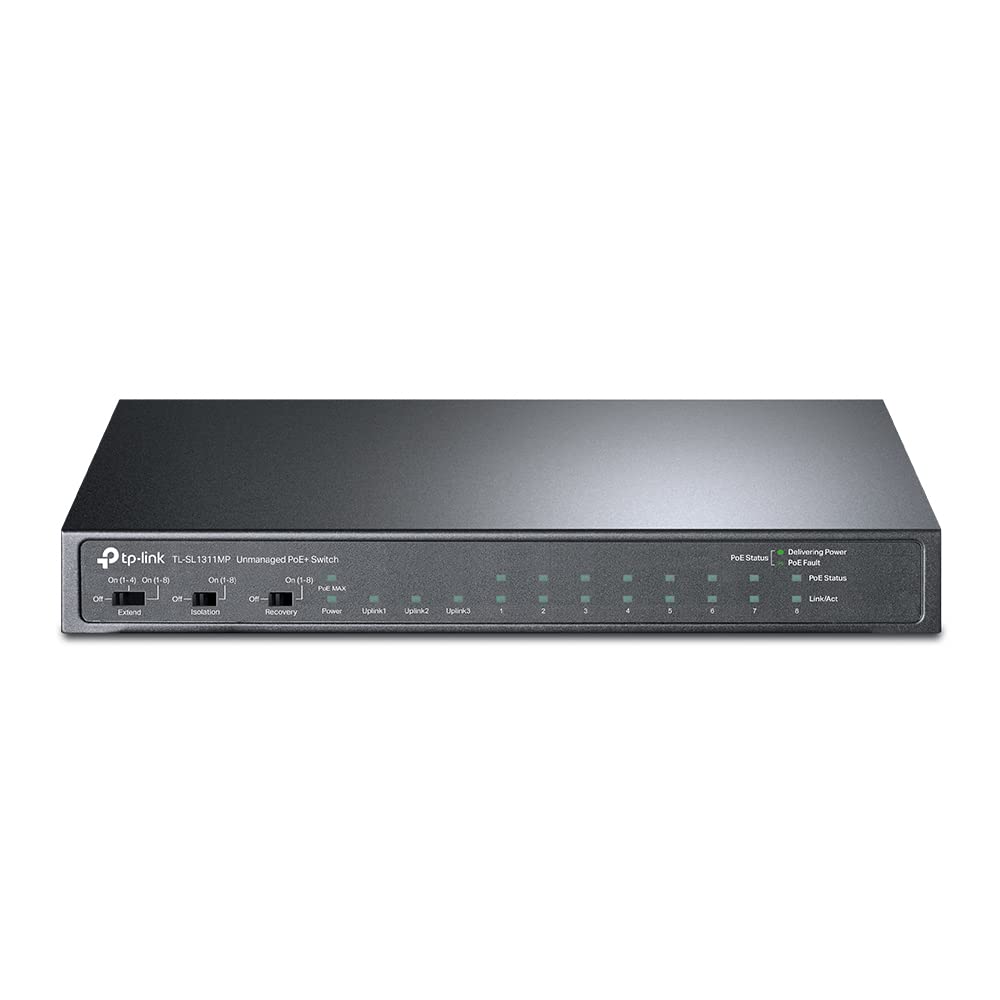

TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+(TL-SL1311MP)

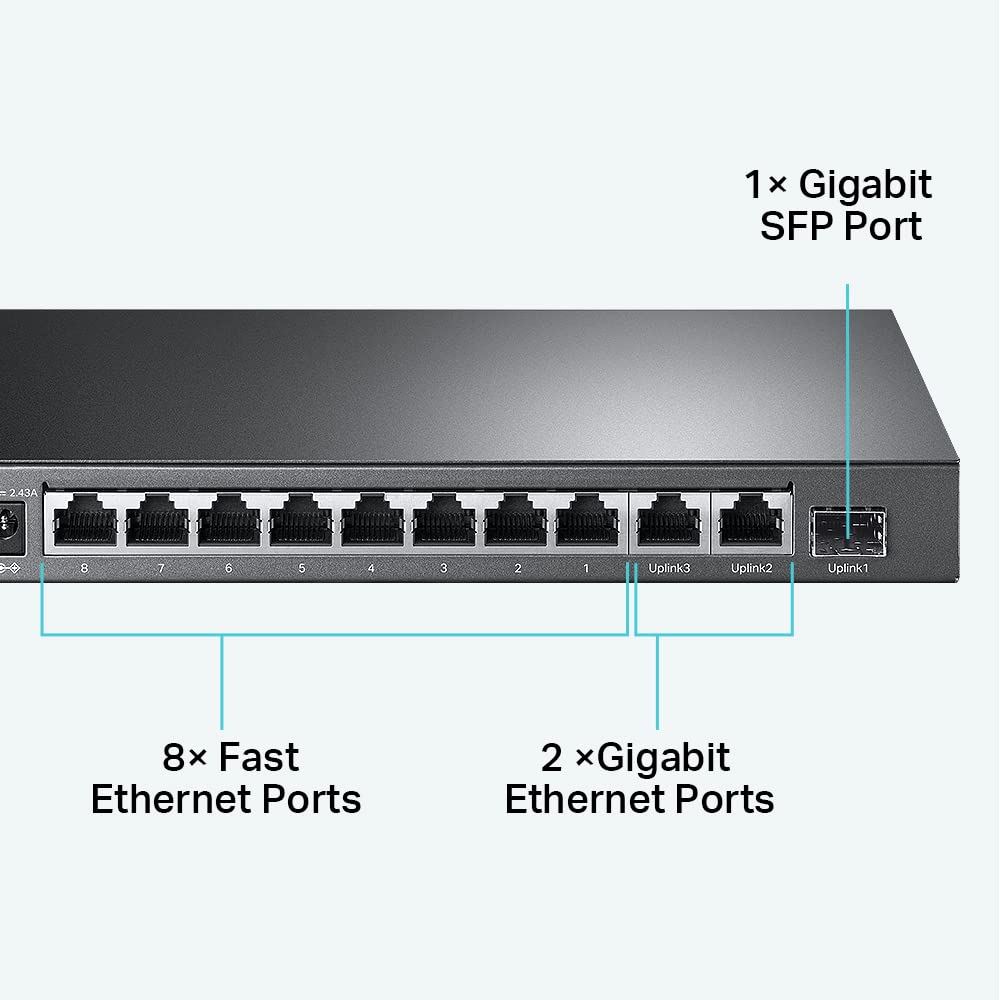

Interface

- 8× 10/100 Mbps PoE+ RJ45 Ports
- 2× Gigabit RJ45 Ports
- 1× Gigabit SFP Port

Auto Features

AUTO Negotiation, AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP Cat 3, 4, 5 (max 100m)
- 100BASE-TX: UTP Cat 5, 5e (max 100m)
- EIA/TIA-568 100Ω STP (max 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (53.5V DC / 2.43A)

Packet Forwarding Rate

5.6544 Mpps

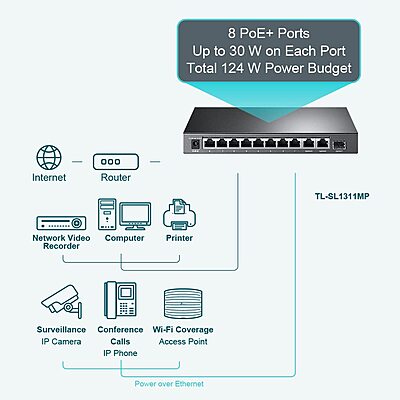

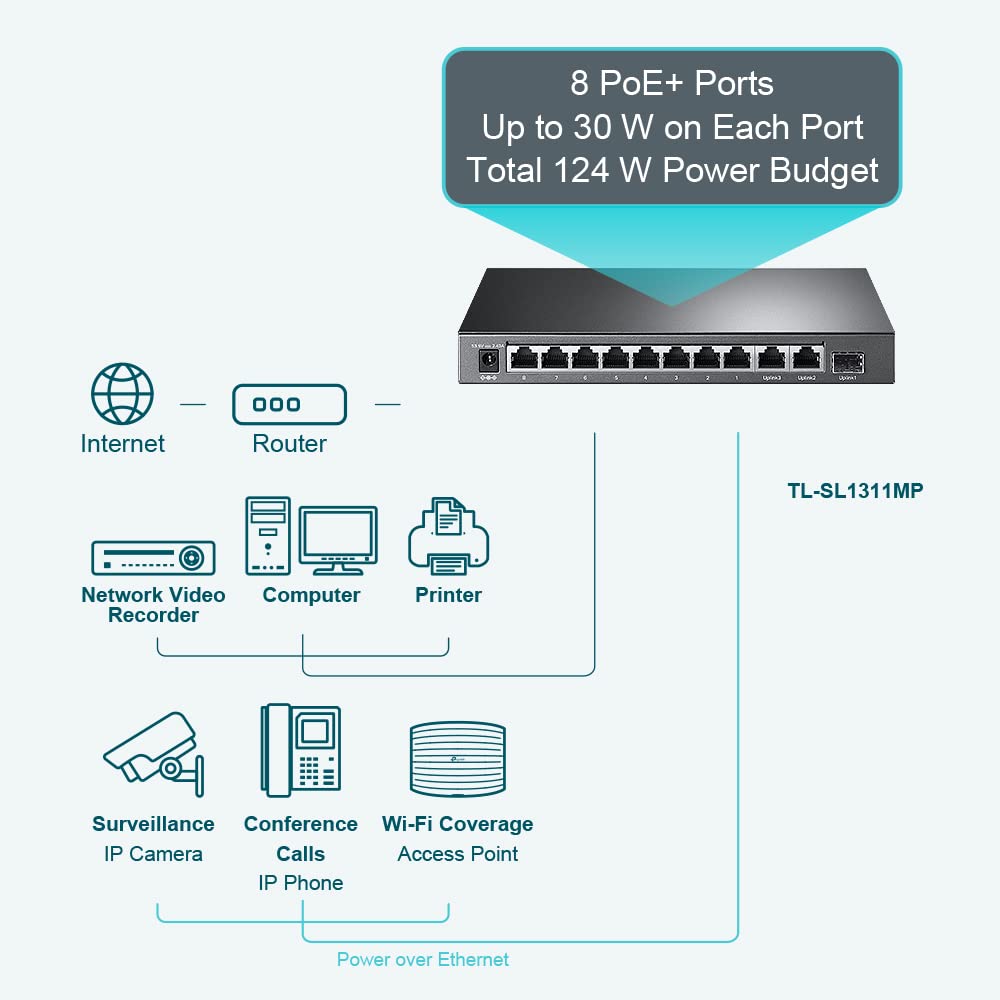

PoE Ports (RJ45)

- Standard: IEEE 802.3af/at compliant
- Ports: 1–8
- Power Supply: 124 W

MAC Address Table

2K

Jumbo Frame

16 KB

Switching Capacity

7.6 Gbps

Dimensions (W × D × H)

209 × 126 × 26 mm (8.2 × 4.9 × 1.0 in)

Max Power Consumption

- 5.95 W (no PD connected)
- 140.92 W (with 124 W PD connected)

Max Heat Dissipation

- 20.29 BTU/h (no PD connected)
- 480.54 BTU/h (with 124 W PD connected)

Advanced Features

- Extend Mode (Ports 1–8, up to 250 m)

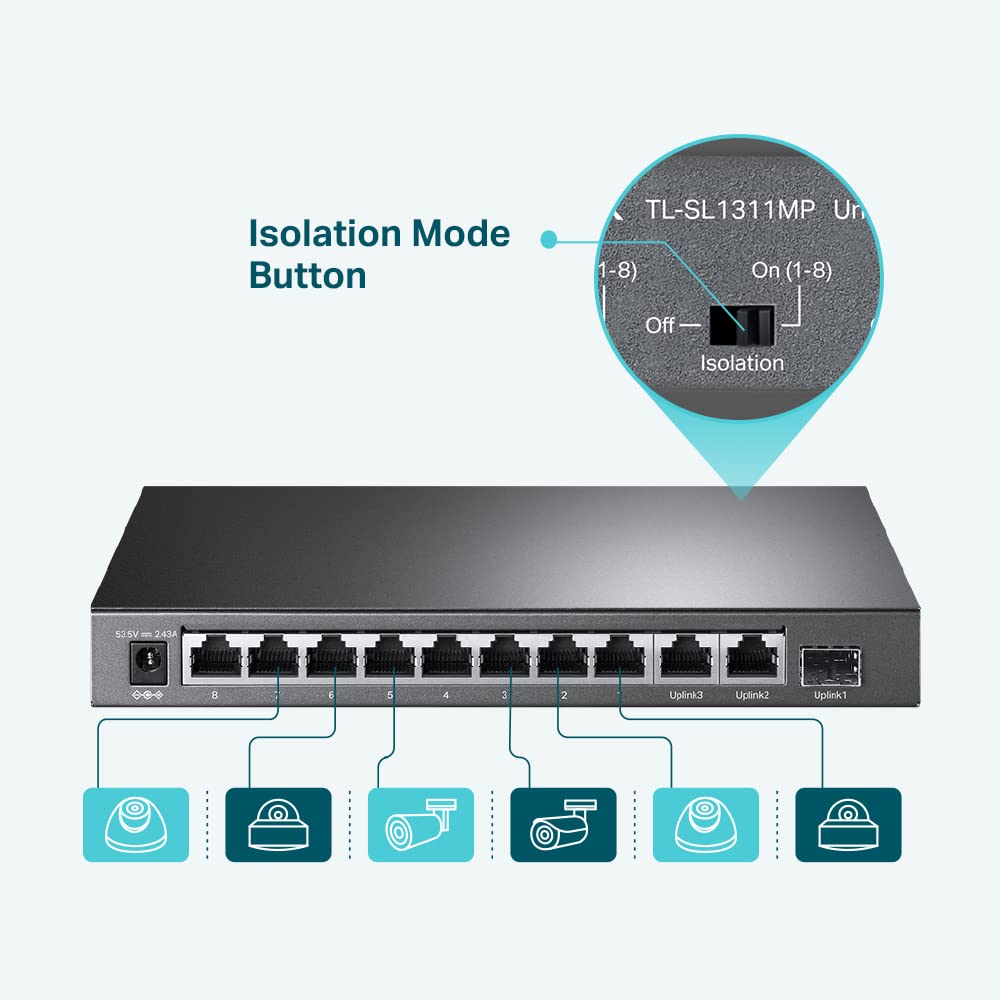

- Isolation Mode (Ports 1–8)

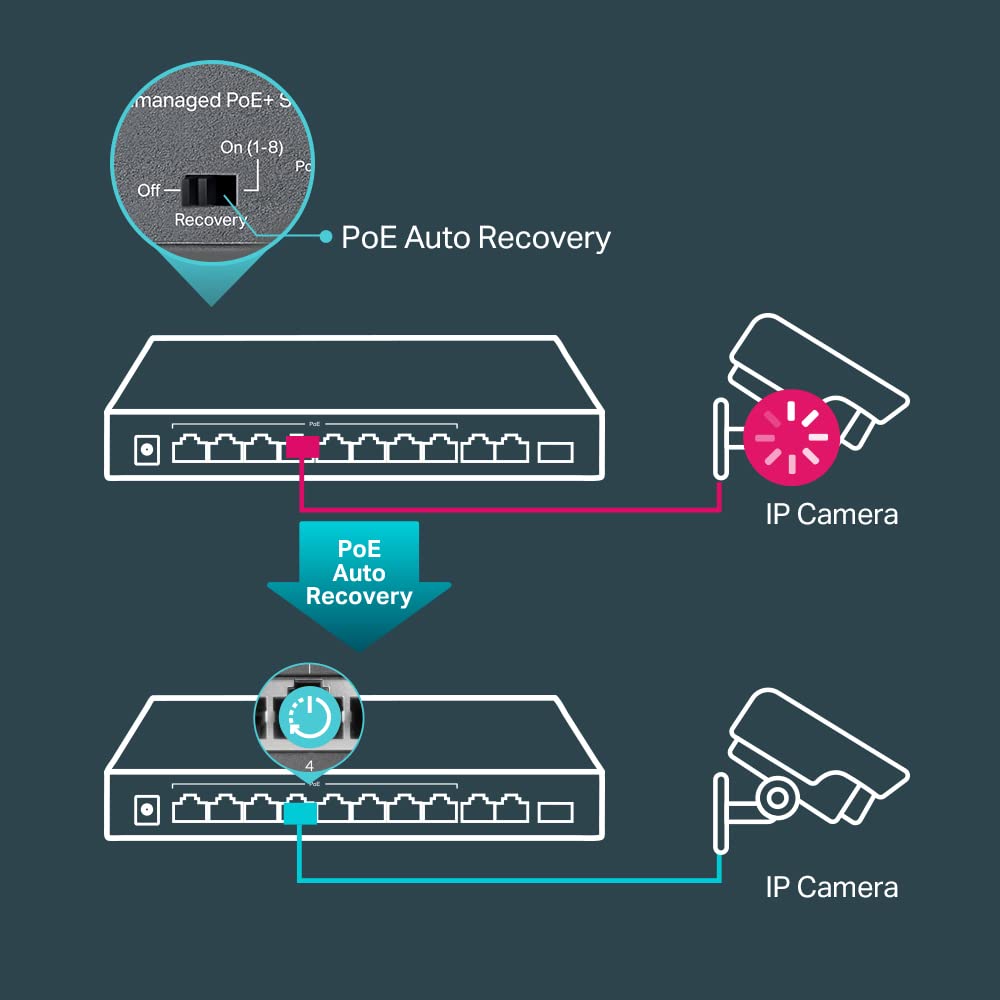

- PoE Auto Recovery (Ports 1–8)
- Mac Address Auto-Learning & Aging
- IEEE802.3x Flow Control & Backpressure

Transmission Method

Store-And-Forward
