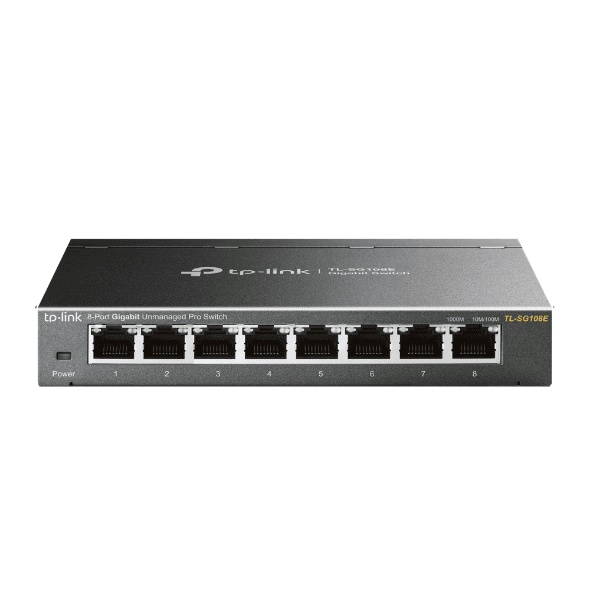

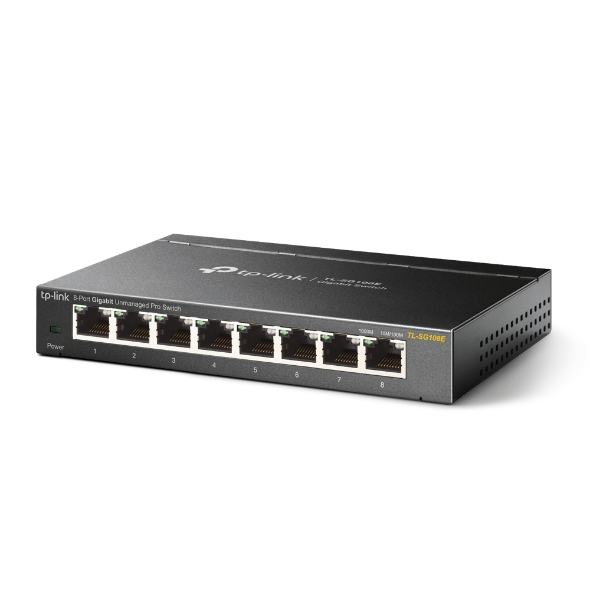

TP-Link 8-Port Gigabit Unmanaged Pro Switch-TL-SG108E V4
Feature | Description |
|---|---|
Ports | 8 × 10/100/1000Mbps RJ45 Ports |
Configuration | Plug and play, no configuration required |
Casing | Durable metal casing, professional appearance |
Management | Intelligent management via web user interface and utility |
Energy Efficiency | Green technology to reduce power consumption |
Feature | Description |
|---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interface | 8 × 10/100/1000Mbps RJ45 Ports |
Auto Negotiation/MDI/MDIX | Yes |
Network Media | UTP category 3, 4, 5 (max 100m), UTP category 5, 5e, 6 or above (max 100m) |
Fan Quantity | Fanless |
Power Supply | External Power Adapter (Output: 9VDC/0.6A) |
Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Max Power Consumption | 3.55W (220V/50Hz) |
Max Heat Dissipation | 12.12 BTU/h |
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.9 Mpps |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 15 KB |
Quality of Service | Port-based/802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control |
L2 Features | IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
Transmission Method | Store-and-Forward |
Certification | FCC, CE, RoHS |
Package Content | TL-SG108E, Power Adapter, Installation Guide, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Operating Temperature | 0℃ ~ 40℃ (32℉ ~ 104℉) |
Storage Temperature | -40℃ ~ 70℃ (-40℉ ~ 158℉) |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
General
- TypesUnManaged
- Switching Capacity16 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingYes
