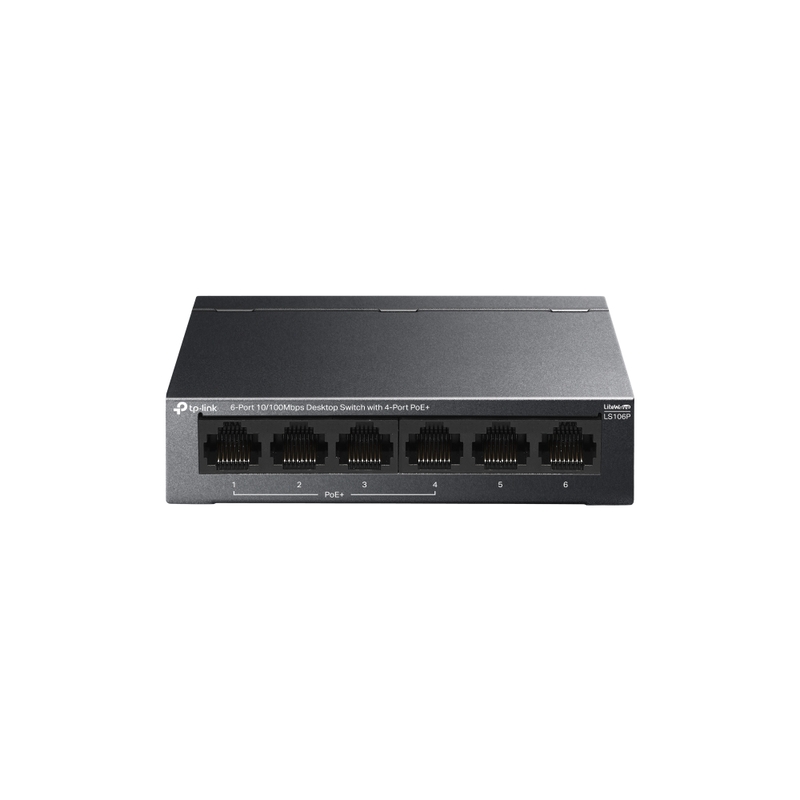

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+(LS106P)
Key Point | Description |
|---|---|
PoE+ Ports | 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port. |
Non-PoE Ports | 2× 10/100 Mbps Non-PoE ports for standard connectivity. |
PoE Budget | 65 W total PoE budget for powering devices. |
Extend Mode | Up to 250 m (820ft) data and power transmission range in Extend Mode. |
Silent Operation | Fanless design for silent operation, ideal for noise-sensitive environments. |
Category | Main Key Points |
|---|---|
Hardware Features | Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
Interface | 6× 10/100 Mbps RJ45 Ports (4 PoE+ Ports on Port 1-4), AUTO Negotiation/MDI/MDIX |
Network Media | 10BASE-T (Max 100m) and 100BASE-TX (Max 100m) UTP Category 3, 4, 5, or above cables |
Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Power Input | 220~240V, 50/60Hz (NV) |
LED | Power, Link/Act, PoE Status |
Packet Forwarding Rate | 0.893 Mpps |
PoE Ports (RJ45) | Ports 1-4: Standard 802.3 af/at compliant, PoE Supply: 65 W |
Dimensions | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Max. Power Consumption | 66.53 W |
Max Heat Dissipation | 226.19 BTU/h |
Switching Capacity | 1.2 Gbps |
Packet Buffer Memory | 2048 Bytes |
Advanced Features | Extend Mode (Ports 1-4), Isolation Mode (Ports 1-4), PoE Auto Recovery (Ports 1-4) |
Jumbo Frame | 2 KB |
Software Features | MAC Address Table: 2K, Transmission Method: Store-And-Forward |
General
- TypesUnManaged
- Switching Capacity1.2 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports4
- No. Of Power Supplies Supported1
- Rack MountingNo
