TP-Link VIGI (4mm) 2MP IR Dome Network Camera-C220I

CAMERA

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Aperture

2.8 mm: F2.2 / 4 mm: F2.0

Lens

2.8 mm / 4 mm

Lens Mount

M12

Minimum Illumination

Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified / Scheduled / Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

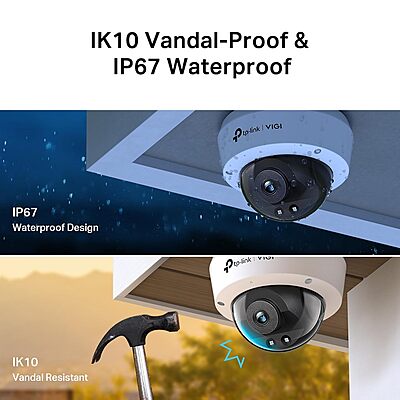

Weatherproof Rating

IP67

IR Working Distance

30m

Viewing Angle (2.8 mm)

H: 88.2°, V: 48.7°, D: 106.5°

Viewing Angle (4 mm)

H: 74.6°, V: 41.3°, D: 88.1°

LENS

Type

Fixed Focal Lens

Focal Length

2.8 mm / 4 mm

Aperture

2.8 mm: F2.2 / 4 mm: F2.0

FOV (2.8 mm)

H: 88.2°, V: 48.7°, D: 106.5°

FOV (4 mm)

H: 74.6°, V: 41.3°, D: 88.1°

Lens Mount

M12

DORI Distance

2.8 mm (Detect)

45 m (149 ft)

2.8 mm (Observe)

19 m (62 ft)

2.8 mm (Recognize)

9 m (30 ft)

2.8 mm (Identify)

5 m (15 ft)

4 mm (Detect)

60 m (198 ft)

4 mm (Observe)

25 m (83 ft)

4 mm (Recognize)

12 m (40 ft)

4 mm (Identify)

6 m (20 ft)

Angle Adjustment (Manual)

Pan: 0° to 355°, Tilt: 0° to 75°

ILLUMINATOR

IR LED

Quantity: 2, Range: 30m, Wavelength: 850nm

White LED

N/A

Illuminator Control

Auto / Scheduled / Always on / Always off

VIDEO

Max. Resolution

1920 × 108
