Atpos AT-9300D 2D 1D Desktop Barcode Scanner | USB Wired
A hands-free barcode scanner improves your efficiency with an infrared auto-sensing sensor.

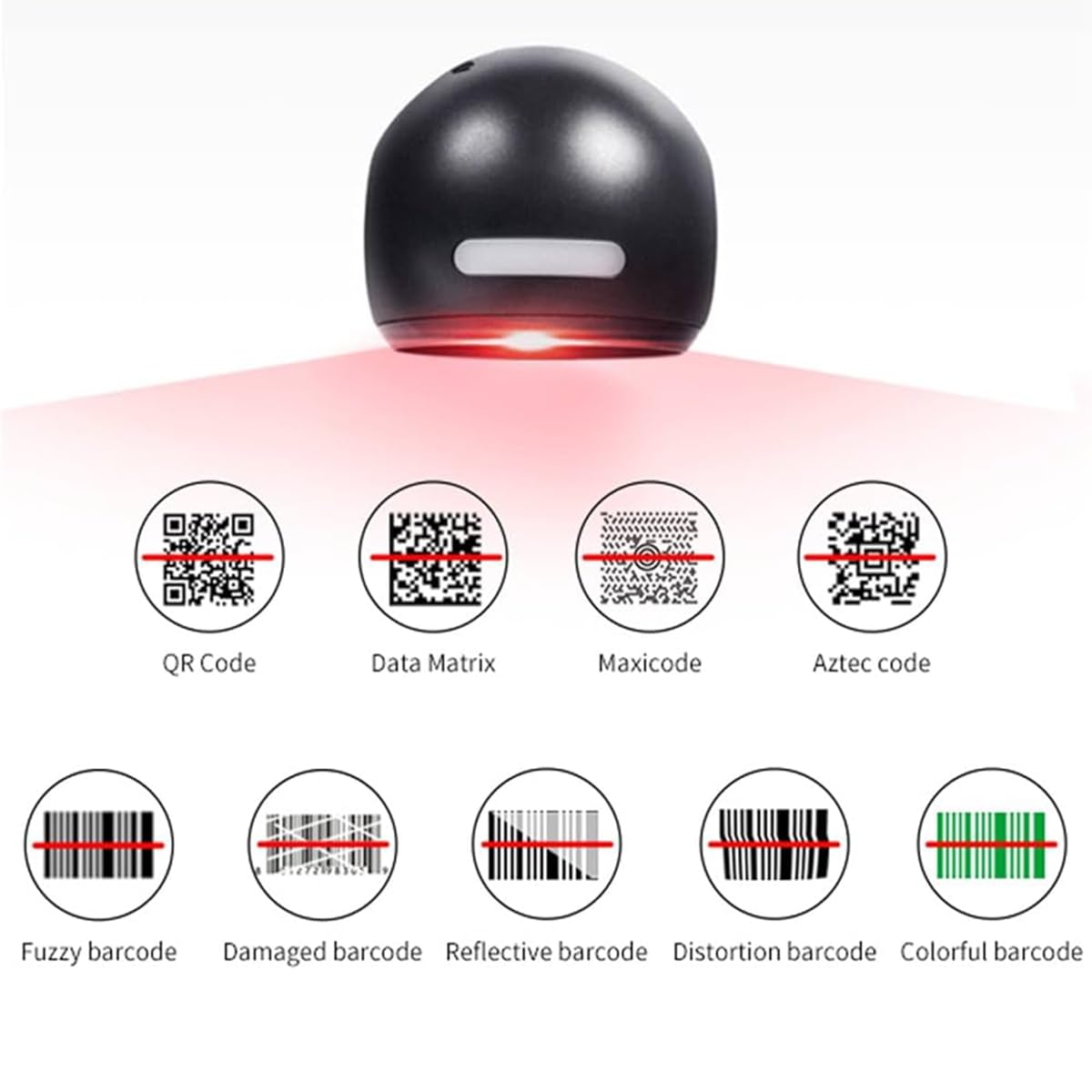

Can easily capture bar codes 1D, 2D/QR on labels, paper, and phone displays.
1800 times/ second, ultra-fast decoding speed, and high accuracy.

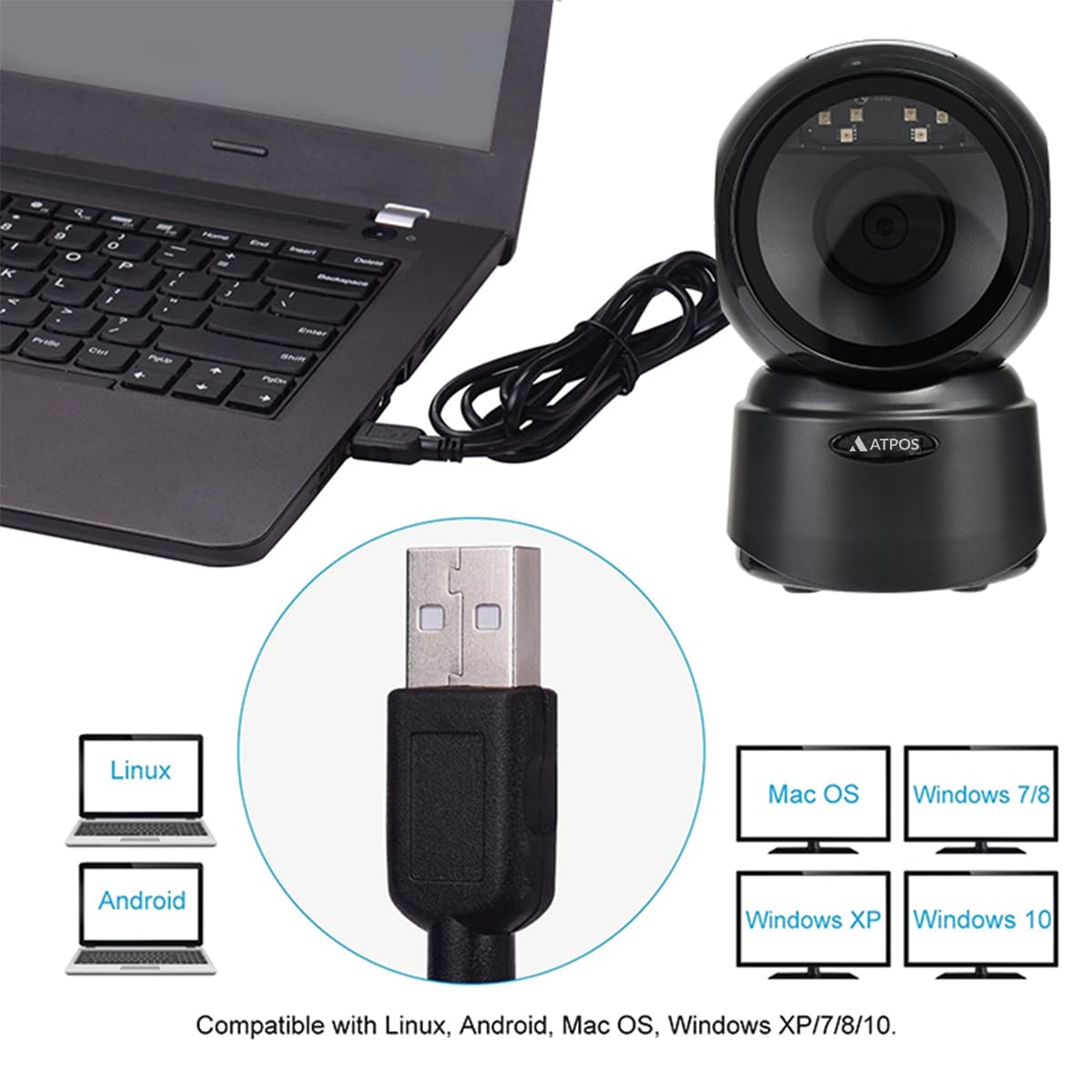

Plug and play, No need to install any software and drivers.
Can be directly fixed onto your desk no need to pick up the scanner improving working efficiency.
Product Specification: AT-9300D 2D Desktop Barcode Scanner | |
Scanner parameters: | 2D + 1D |
Optical resolution | CMOS 640 pixels (H) x 480 Pixels |
Lighting source | red LED supplement |
Resolution | ≥4mil |
Scanning speed | 1800 times/s |
Scanning angle | Roll 360°/ Pitch ±65°/ Yaw ±65° |
Field of View | 39°(H) X29°(V) |
Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, |
Printing contrast | 20% |
Error rate | ≤1/2,000,000 |
Interface type | USB |

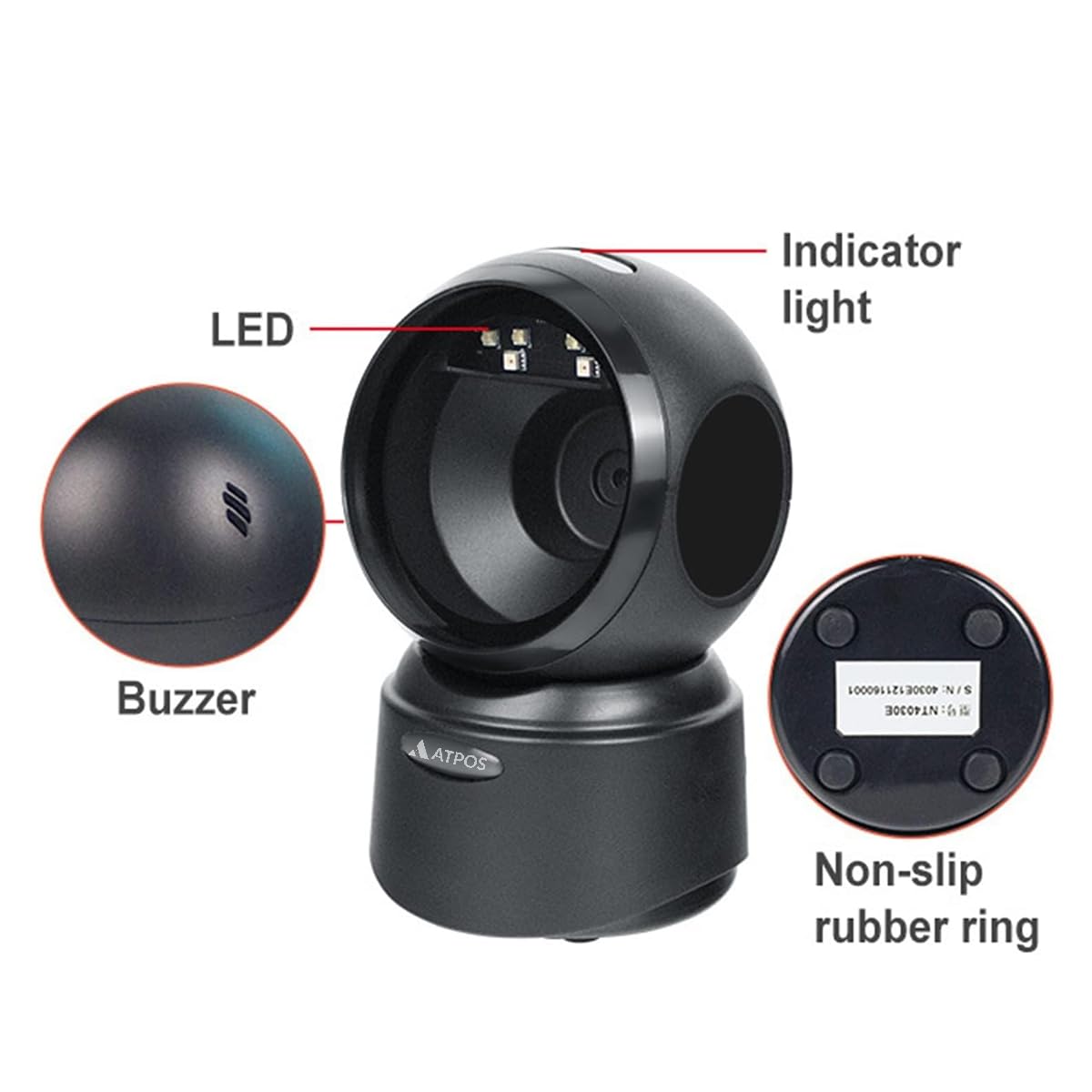

Prompt mode | Buzzer, LED |
Decoding Capability | 1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA， Matrix 2 of 5， Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar |
2D: PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN, DOT Code, Codeblock, etc. | |
Electric voltage | 5V DC |
Current | Work Current 320mA, Stand-by Current 235mA, Starting Current 315mA |
Ambient Light Immunity | 0-100,000 Lux |
|
|
Dimensions | 140.20mm x 84mm x 90.10mm |
Weight | 249g |
Warranty | 1 Year |
Working temperature | -20℃～60℃ |
Storage temperature | -30℃～70℃ |
Humidity | 5% to 95% relative humidity,non-condensing |
General
- Types Of ScannersBarcode Scanners
- Scanner Parameter2D + 1D
- Optical resolutionCMOS 640 pixels (H) x 480 Pixels
- Resolution≥4mil
- InterfaceUSB
