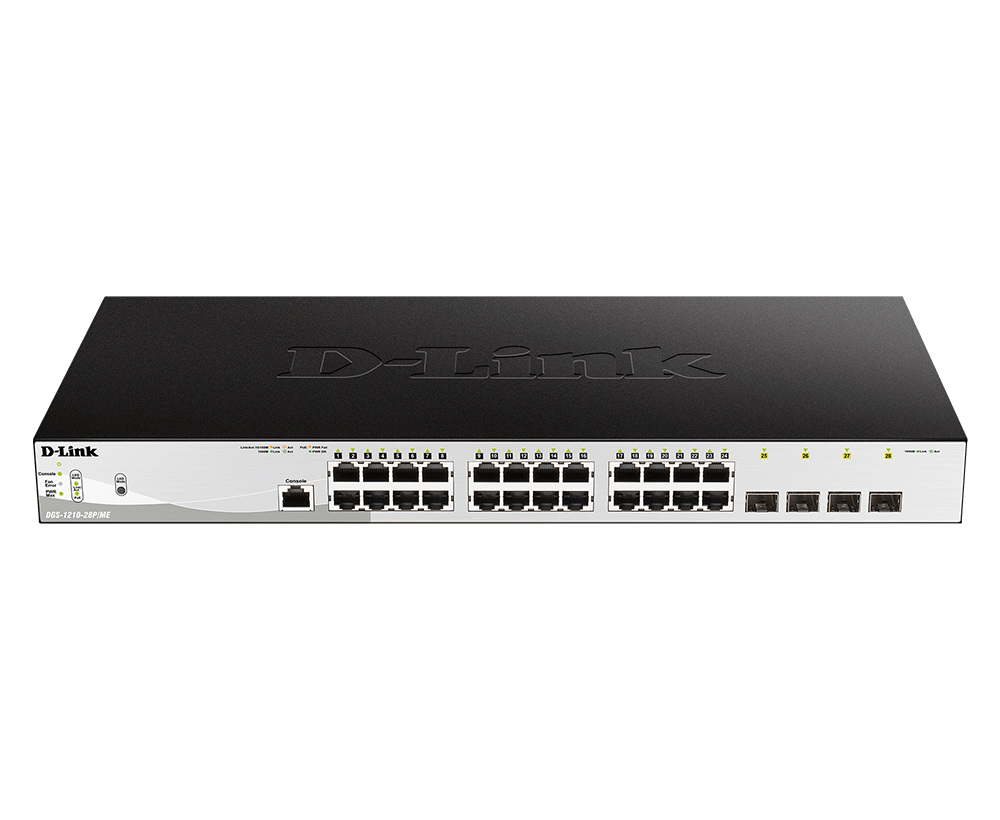

D-Link DGS-1210-28P/ME Switch (Cent)

Aggregation:

• 8 x Link Aggregation Groups per device
• 8 x Max Ports per Link Aggregation Group
• Supports 802.1AX and 802.3ad standards

Physical Dimensions:

• Size: 440 x 210 x 44 mm
• Weight: 3.34 kg

Performance:

• Switching Capacity: 56 Gbps
• Maximum Forwarding Rate: 41.7 Mpps
• MAC Address Table Size: 16K
• Packet Buffer Size: 1.5 Mbits
• Jumbo Frame Support: 9,216 Bytes

Power:

• Maximum Power Consumption: 251.5 W (PoE on), 28.7 W (PoE off)
• Standby Power Consumption: 16.1 W (240V), 18.4 W (100V)
• Power Input: 100 to 240 V AC
• Energy Efficiency Ethernet (EEE): Yes

Environmental:

• Operating Temperature: -5 to 50°C (23 to 122°F)
• Storage Temperature: -20 to 70°C
• Operating Humidity: 0% - 95% RH
• Operating Altitude: 1500 m
• MTBF: 331,699 hours

Connectivity:

• 24 x 10/100/1000BASE-T Ports
• 24 x 1000Base-T PoE
• 4 x 1000M SFP Ports
• 4 x Max IP Interface

Management Features:

• IGMP Snooping: Max 1024 Groups
• Spanning Tree Protocol (STP): IEEE 802.1D, 802.1s, 802.1w
• Console Port: Yes

Storage:

• Flash Memory Size: 32 MB
• DRAM Size: 256 MB

Power Saving Features:

• LED Shut-Off
• Link Status
• Port Shut-Off
• System Hibernation
