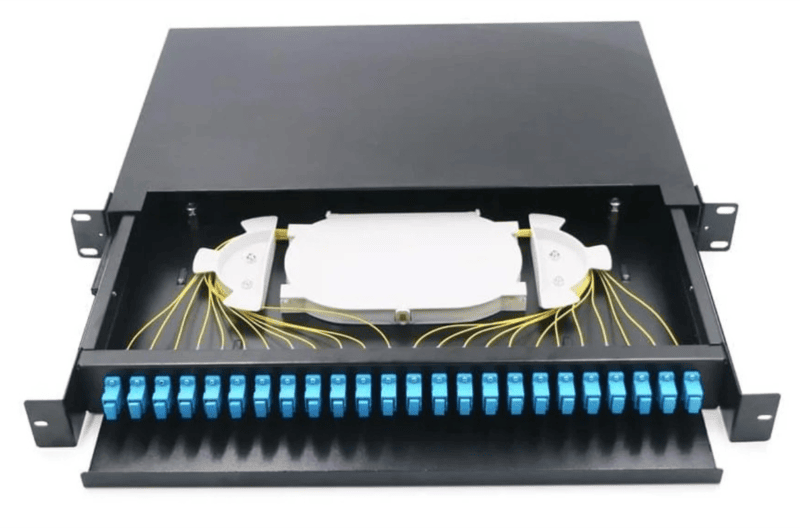

Delton Fixed Optical Fiber LIU 24 PORT Rack Mount - Loaded (SC Duplex) MM
Drawer Type vs Slider Type Fiber Enclosure – Specifications
Feature | Drawer Type | Slider Type |
|---|---|---|
Rack Compatibility | Standard 19” | Standard 19” |
Material | Cold Rolled Steel | Cold Rolled Steel |
Structure | Top cover and bottom panel | Expandable double slide rails |
Assembly | Easy to assemble and disassemble | – |
Input Holes | Three types | – |
Cable Entry | Waterproof cable clamp | – |
Adapter Interface | 12 Duplex SC or LC (6/12/24 SC Simplex or 6/12/24/48 LC Duplex) | 175-adapter interface supporting ST, SC, FC, LC |
Splice Capacity | Up to 48 fibers with 2 trays | Up to 48 fibers with splice trays (loaded/unloaded) |
Patch Cord Management | Bend radius guides to minimize macro bending | Pivoting front saddles and bend radius guides for optimal patch cord routing |
Internal Cable Management | 6 cable management rings for improved flexibility | – |
RU & Adapter Plate Support | – | 1RU supports 2 standard adapter plates of various types |
Accessory Kit | Comprehensive kit for cable entry and fiber management | Comprehensive kit for cable entry and fiber management |
Fiber LIU – Features & Specifications
Feature | Description |
|---|---|
Construction | Cold rolled steel body with aluminum front & top cover, powder-coated finish |
Mounting Height | Slim 1U unit |
Functionality | Supports both splicing and termination |
Preassembled Shelves | Available in multiple configurations |
Adapter Panel Capacity | Supports up to 48 LC, 48 SC, 36 ST, or 36 FC terminations |
Fiber Storage | Built-in magic stickears for 900μm tight buffered fiber |
Storage Capacity | Stores up to 3 meters of 900μm fiber per adapter |
Adapter Panel Design | Snap-in locker design for easy change and various connector patching |
Accessibility | Removable front and top covers for better interior access |
Cable Management | Removable rubber grommet for pre-terminated fiber trunks; protects cables and reduces dust buildup |
Accessory Kit | Includes cable ties, mounting ear screws, and cable saddle |
