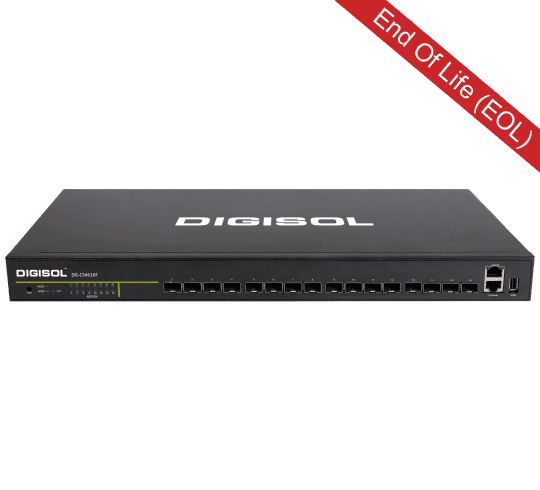

Digisol Lite Layer 3 Managed Switches-DG-CS4616F
Key Features
Efficient Data Handling: Supports storage and forwarding for optimized network performance and reduced packet loss.
Advanced VLAN Support: Enables segmentation and isolation of network traffic for enhanced security and flexibility.
Robust IP Routing: Facilitates seamless communication across networks with advanced IPv4 and IPv6 routing capabilities.
High Reliability: Ensures consistent performance with redundancy, failover mechanisms, and fault tolerance.
Optimized Multicast Support: Enhances network efficiency with intelligent multicast traffic management, including IGMP and PIM protocols.
Model & Type
Digisol DG‑CS4616F is a Lite Layer‑3 Managed Switch.Port Configuration
It offers 16 × 10 Gbps SFP+ optical (fiber) ports.Target Use
Designed for distribution layer in campus networks, enterprise networks, metro IP networks, and converged 10G core usage.Switching Capacity & Forwarding Performance
Switching capacity approx 320 Gbps.
Forwarding rate approx 238 Mpps (million packets per second).
MAC & Routing Tables
MAC Address table size ~16K entries.
Shared IPv4 / IPv6 route table entries: around 64 / 64.
VLAN & Multicast Features
Supports enhanced VLAN features: VLAN‑VPN, Voice VLAN, Q‑in‑Q, N:1 VLAN Translation, etc. Multicast handling is supported.QoS / Traffic Control
It has classified bandwidth control, multiple queues per port (8 queues/port).Energy Efficiency / Green Features
Complies with IEEE 802.3az (Energy Efficient Ethernet).
Fan‑less or smart fan design to reduce noise and power consumption.
Reliability & Protection Protocols
Supports Ethernet Ring Protection Protocol (G.8032) for redundancy/failover in ring topologies.Physical Construction / Rack Mount
It is a 1U form‑factor, 19‑inch rack mountable device.Power Input
Operates from AC mains 100‑240V, 50/60Hz. Also often dual power sockets / DC input options are included depending on variant.Environmental & Operating Conditions
Operating temperature: approx 0°C to 50°C.
Storage temperature: approx ‑40°C to 70°C.
Operating humidity: ~5‑95% non‑condensing.
Jumbo Frames Support
Supports jumbo frame size up to ~9000 bytes ("9K").Security / Access Control / Management
Includes intelligent security control, OAM (Operations, Administration, Maintenance) management features.Power Consumption
Approx power draw ~ 23.7 W under certain operating conditions
General
- TypesManaged
- Switching Capacity10 Gbit/s
- Port TypeEthernet & SFP
- No. Of Ethernet Ports16
- No. Of Power Supplies Supported1
- Rack MountingYes
