Digisol Lite Layer 3 Managed Switches-DG-CS4616F

Model & Type

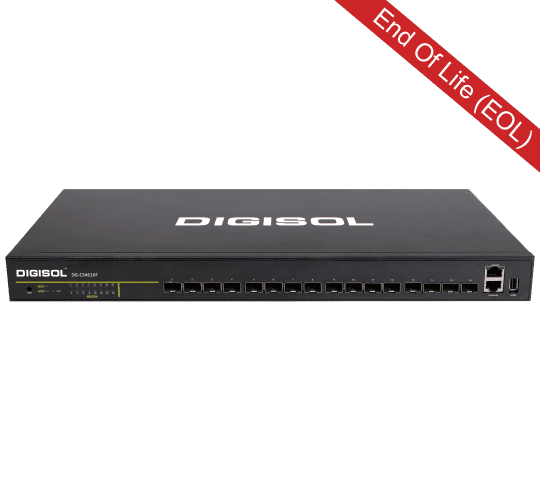

Digisol DG‑CS4616F is a Lite Layer‑3 Managed Switch.

Port Configuration
It offers 16 × 10 Gbps SFP+ optical (fiber) ports.

Target Use
Designed for distribution layer in campus networks, enterprise networks, metro IP networks, and converged 10G core usage.

Switching Capacity & Forwarding Performance

• Switching capacity approx 320 Gbps.

• Forwarding rate approx 238 Mpps (million packets per second).

MAC & Routing Tables

• MAC Address table size ~16K entries.

• Shared IPv4 / IPv6 route table entries: around 64 / 64.

VLAN & Multicast Features
Supports enhanced VLAN features: VLAN‑VPN, Voice VLAN, Q‑in‑Q, N:1 VLAN Translation, etc. Multicast handling is supported.

QoS / Traffic Control
It has classified bandwidth control, multiple queues per port (8 queues/port).

Energy Efficiency / Green Features

• Complies with IEEE 802.3az (Energy Efficient Ethernet).

• Fan‑less or smart fan design to reduce noise and power consumption.

Reliability & Protection Protocols
Supports Ethernet Ring Protection Protocol (G.8032) for redundancy/failover in ring topologies.

Physical Construction / Rack Mount
It is a 1U form‑factor, 19‑inch rack mountable device.

Power Input
Operates from AC mains 100‑240V, 50/60Hz. Also often dual power sockets / DC input options are included depending on variant.

Environmental & Operating Conditions

• Operating temperature: approx 0°C to 50°C.

• Storage temperature: approx ‑40°C to 70°C.

• Operating humidity: ~5‑95% non‑condensing.

Jumbo Frames Support
Supports jumbo frame size up to ~9000 bytes ("9K").

Security / Access Control / Management
Includes intelligent security control, OAM (Operations, Administration, Maintenance) management features.

Power Consumption
Approx power draw ~ 23.7 W under certain operating conditions
