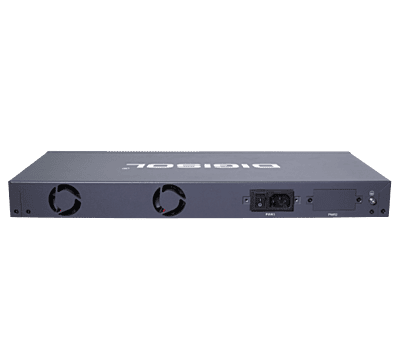

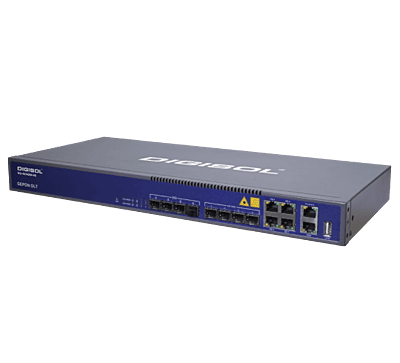

Digisol GEPON OLT(Optical Line Terminal) DG-GO4204-8E

Digisol DG-GO4204-8E – GEPON OLT (Optical Line Terminal) | Technical Specifications

Management Ports:

• 1 × 10/100BASE-T out-band port

• 1 × CONSOLE port

PON Port Specifications:

• Maximum Transmission Distance: Up to 40KM

• EPON Port Speed: Symmetrical 1.25Gbps

• Wavelength: TX-1490nm, RX-1310nm

• Connector Type: SC/UPC

• Fiber Type: 9/125μm Single Mode Fiber (SMF)

Management Mode:

• SNMP, Telnet, CLI, WEB, SSH v2

Layer 2 Switching Features:

• MAC Address Table: 16K entries

• Supports 4096 VLANs with Port VLAN, VLAN Tagging/Untagging, VLAN Transparent Transmission, and QinQ

• IEEE 802.3d Trunking support

• RSTP, MSTP for network redundancy

• QoS Support: Based on Port, VID, TOS, and MAC Address

• Flow Control: IEEE 802.x support

• Port Stability Statistics & Monitoring

• Point-to-Point (P2P) Functionality

Multicast Features:

• IGMP Snooping support

• Supports up to 256 IP Multicast Groups

DHCP Features:

• DHCP Server, DHCP Relay, and DHCP Snooping support

• Online ONU Configuration & Management

• User and alarm management for network monitoring

Layer 3 Features:

• ARP Proxy support

• Routing Support:

  • Static Routing

  • 1024 Hardware Host Routes

  • 512 Hardware Subnet Routes

  • Dynamic Routing: RIPv1/v2, OSPFv2/v3

Security & Management:

• Authentication: IEEE 802.1x, Radius, Tacacs+

• Advanced Security Features: DHCP Snooping, DHCP Option 82, IP Source Guard

• Secure Access: HTTPS, SSH v2

IPv6 Features:

• Neighbor Discovery & SLAAC Snooping

• IPv6 DHCP Support: DHCPv6 Server, Relay, and Snooping

• IPv6 Routing: Static & Dynamic (RIPng, OSPFv3)

• MLD v1/v2 support

• IPv6 ACL, SNMP, Telnet, HTTPS, and SSH Management

The Digisol DG-GO4204-8E GEPON OLT is a high-performance, scalable, and secure fiber-optic networking solution, making it ideal for FTTH, FTTB, and enterprise deployments.
