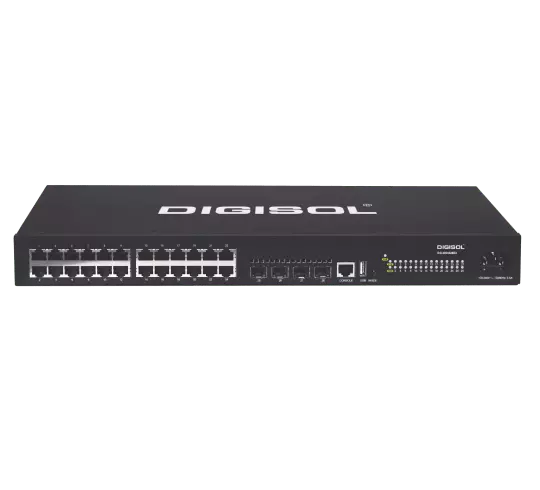

Digisol L2 Gigabit Dual Stack Intelligent Switches, DG-GS4628E2

Technical Specifications

Hardware Features

• Ports:

  • 24 × 10/100/1000Base-T

  • 4 × 100/1000Base-SFP Ports

  • 1 × Console Port (RS232)

  • 1 × USB Port

• Performance:

  • Switching Capacity: 56Gbps

  • Forwarding Rate: 41.7Mpps

  • MAC Address Table: 16K

  • Jumbo Frame Support: 10K

  • Access Control List (ACL) Table: 2048

  • VLAN Table: 4K

  • Queues per Port: 8

• Physical Specifications:

  • Dimensions (W × H × D): 442mm × 220mm × 43.6mm

  • Power Input: 100240V AC, 5060Hz

  • Operating Temperature: 0°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Humidity: 5% to 95% (non-condensing)

Switching Solutions

Model: DG-GS4628E2 (Rev 3.0.1) – DIGISOL L2 Gigabit Intelligent Ethernet Switch

Main Features

VLAN Support

• Port-based VLAN

• IEEE 802.1Q VLAN

• Private VLAN

• Protocol VLAN

• Voice VLAN

• MAC VLAN

• Q-in-Q, Selective QinQ, Flexible QinQ

• VLAN Translation (N:1 VLAN Translation)

Layer 3 Features

• Static Routing

• Policy-Based Routing (PBR)

DHCP Features

• IPv4/IPv6 DHCP Client

• IPv4/IPv6 DHCP Relay (Option 82, Option 37/38)

• IPv4/IPv6 DHCP Snooping

• IPv4/IPv6 DHCP Server

Network Reliability

Spanning Tree Protocol (STP)

• IEEE 802.1D Spanning Tree Protocol

• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

• Root Guard, BPDU Guard, BPDU Forwarding

Link Aggregation (LACP)

• 16 Groups with up to 8 Ports per Group

L2 Ring Protection

• Multi-Protocol Ring Protection (MRPP)

• ITU-T G.8032 Support

• Loopback Detection, Fast Link Recovery

Security Features

• IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL

• Time-Based ACL

• ACL Support on VLAN Interfaces

• Storm Control (Based on Packets & Bytes)

• Port Security with MAC Limitation (Per VLAN & Port)

• Anti-ARP Spoofing, Anti-ARP Scanning, ARP Binding

• Neighbor Discovery (ND) Snooping

• Dynamic ARP Inspection (DAI)

• IEEE 802.1x Authentication, Authorization & Accounting

• RADIUS & TACACS+ Authentication

Multicast Support

• IGMP Snooping (v1/v2/v3)

• IGMP Fast Leave

• MLD v1/v2 Snooping

• Multicast VLAN Registration (MVR)

Quality of Service (QoS) Features

• 8 Queues per Port

• Bandwidth Control & Flow Redirection

• Traffic Classification Based On:

  • ACL (Access Control List)

  • VLAN ID, COS, TOS, DSCP

  • Policy-Based on Port & VLAN

  • DSCP, COS/802.1p, Precedence, TOS

• Queue Scheduling: SP, WDRR, SWDRR

• Support for IP Fragmentation-Based Traffic Matching

Management & Operation

• Firmware & Configuration Management via:

  • TFTP/FTP

  • CLI, Telnet, Console

  • Web/SSL (IPv4/IPv6)

  • SSH (IPv4/IPv6)

  • SNMPv1/v2c/v3, SNMP Trap

• RMON (Groups 1,2,3,9)

• Ping, Trace Route, Syslog (IPv4/IPv6)

• Dual Firmware Image, Multiple Configuration Files

• Port Mirroring, CPU Mirroring, RSPAN, sFlow

• VCT (Virtual Cable Test), DDM (Digital Diagnostic Monitoring)

• OAM Support

• ULDP (Cisco UDLD Equivalent)

• LLDP/LLDP-MED

Energy Efficiency

• IEEE 802.3az (Energy Efficient Ethernet)

• Fanless & Smart Fan Design

• LED Shut-Off Feature
