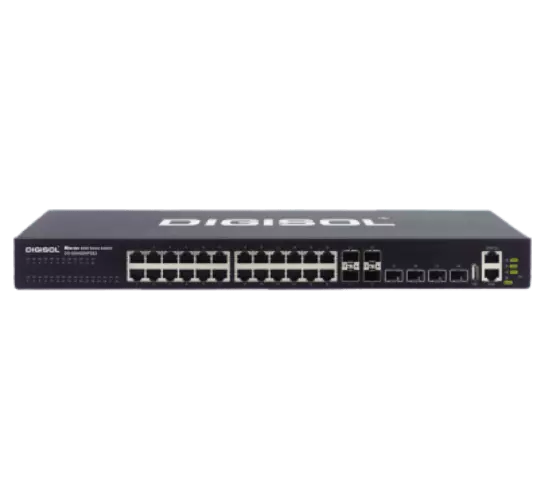

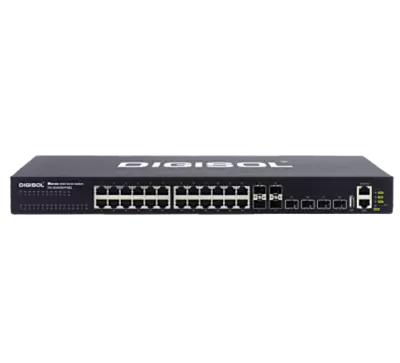

DIGISOL 24 Port Gigabit Ethernet PoE Access Layer 3 Switch with 4 10 Gigabit SFP+ Uplink Ports, DG-GS4628HPSE2

DIGISOL DG-GS4628HPSE2: 24-Port Gigabit Ethernet PoE Layer 3 Switch with 4 10G SFP+ Uplink Ports

Hardware Features

• Switching Capacity: 128Gbps

• Throughput: 95Mpps

• MAC Address Table: 16K

• Jumbo Frame Support: 10K

• ARP Table: 4K

• Routing Table: 1K

Physical Specifications

• Dimensions (WxHxD): 440 × 44 × 320 mm

• Power Consumption: < 440W

• PoE Standards: IEEE 802.3af / IEEE 802.3at

• PoE Features:

  • PD Failure Detection

  • Total PoE Power Budget: 370W

• Management Ports:

  • 1 × RJ45 Ethernet Management Port

  • 1 × Console Port

  • 1 × USB 2.0 (for configuration file upload/download)

Switching Solutions

• Memory:

  • DRAM: 512MB RAM

  • Flash: 32MB SBI, 128MB NAND

• VLAN Support:

  • 4096 VLANs (64 active VLAN interfaces)

  • MTU: 10K

• Physical Ports:

  • 20 × 10/100/1000BaseT (PoE)

  • 4 × GE Combo Ports (PoE / SFP)

  • 4 × 10GE SFP+ Uplink Ports

Technical Specifications

Layer 1 & Layer 2 Features

• IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3z (1000Base-X), IEEE 802.3ab (1000Base-T), IEEE 802.3ae (10GBase), IEEE 802.3x, IEEE 802.3ak (10GBASE-CX4)

• Network Resilience & Loop Prevention:

  • Port Loopback Detection, LLDP & LLDP-MED, UDLD

  • ERSPAN, RSPAN, LACP (128 groups, 8 ports per trunk), LACP Load Balancing

  • STP (802.1d), RSTP (802.1w), MSTP (802.1s), Root Guard, BPDU Guard, BPDU Tunnel

  • MRPP (Multi-Ring Protection Protocol)

• VLAN & Multicast Support:

  • 802.1Q Trunking (4096 VLANs), MAC VLAN, Voice VLAN, Private VLAN (PVLAN), Protocol VLAN, Multicast VLAN

  • QinQ, Selective QinQ, GVRP, VLAN Translation

  • Broadcast/Multicast/Unicast Storm Control

  • IGMP v1/v2/v3 Snooping, IGMP Filtering, IGMP and L2 Query

  • ND Snooping, MLDv1/v2 Snooping

Layer 3 Features

• Routing Protocols: Static Routing, RIP v1/v2, OSPFv2, BGP4

• Advanced Routing: OSPFv3, BGP4+, OSPF Multiple Processes, LPM Routing, Policy-Based Routing (PBR)

• Redundancy & Reliability: VRRP, URPF, ECMP, BFD

• Multicast Routing: IGMP v1/v2/v3, IGMP Proxy, Static Multicast Route

• Security & ARP Features:

  • ARP Guard, Proxy ARP, Local ARP Proxy, Gratuitous ARP, ARP Limit

  • Anti ARP/NDP Cheat, Anti ARP/NDP Scan, Dynamic ARP Inspection (DAI)

  • DNS Client, DNS Relay

  • GRE Tunnel

IPv6 Support

• Tunneling: 6to4, Configured Tunnel, ISATAP, GRE

• Routing & Discovery: ICMPv6, ND, DNSv6, IPv6 VRRPv3, IPv6 URPF, IPv6 RA

• Multicast & Security: MLDv1/v2 Snooping, IPv6 Multicast VLAN, IPv6 ACL, IPv6 QoS

• Routing Protocols: RIPng, OSPFv3, BGP4+

QoS (Quality of Service)

• 8 Queues with Traffic Prioritization

• Scheduling Algorithms: SWRR, SP, WRR, DWRR, SDWRR

• Traffic Classification: Based on 802.1p COS, ToS, DiffServ DSCP, ACL, Port Number

• Traffic Policing, PRI Marking/Remarking

ACL (Access Control List)

• Types: IP ACL, MAC ACL, IP-MAC ACL

• Rules Based On: Source/Destination IP, MAC, IP Protocol, TCP/UDP Port, VLAN, CoS, DSCP, ToS

• Time-Based ACL

Security Features

• 802.1x AAA Authentication (Port, MAC-Based)

• RADIUS & TACACS+ Support for IPv4 and IPv6

• Guest VLAN & Auto VLAN

• DHCP Security: DHCP Snooping, Option 82

• DoS Protection: SYN Flood, UDP Flood, ARP Spoofing Prevention

Network Management & Monitoring

• Access Methods: CLI, Web, Telnet, SSH v1/v2, SNMP v1/v2c/v3

• Logging & Monitoring: Syslog, External Syslog Server, sFlow Traffic Analysis

• Security Protocols: HTTPS, SSL, SNMP MIB, SNMP TRAP, FTP/TFTP

• Time Synchronization: SNTP/NTP

• Remote Monitoring: RMON 1,2,3,9

Data Center Features

• Virtualization: Virtual Switch Framework (VSF)

• Stacking: Up to 4 Units

• Dual Firmware Support

Green Energy Features

• IEEE 802.3az (Energy Efficient Ethernet)

• Auto Fan Speed Control, Temperature Alarm

• LED Shut-Off for Power Optimization

Environmental Conditions

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Relative Humidity: 10% to 90% (Operating), up to 95% (Storage)

Power Supply

• Single AC Fixed Power Supply (100-240V AC)

Standards Compliance

• EMC & Environmental:

  • IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11

Warranty & Ordering Information

• Warranty as per DIGISOL PRODUCT WARRANTY policy available on the official website.

• DIGISOL trademarks and brand names are the property of DIGISOL SYSTEMS LIMITED.
