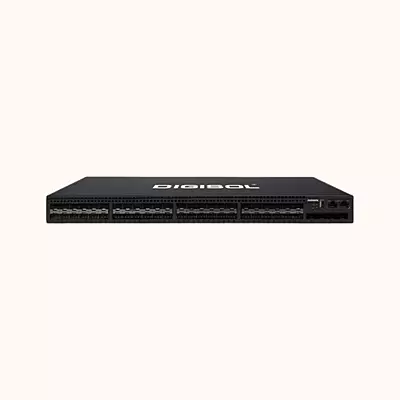

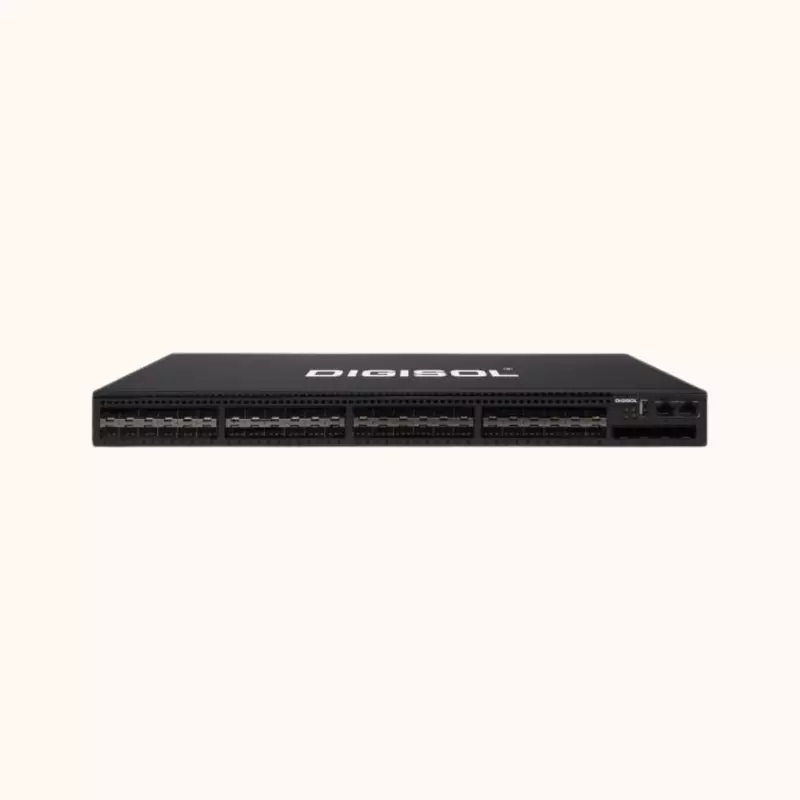

DIGISOL L3 10G Fiber Routing Switch, DG-GS4652FSE2

DIGISOL L3 10G Fiber Routing Switch

Model: DG-GS4652FSE2

Physical & Management Interfaces

• Physical Ports:

  • 48 × 100/1000Base-X (SFP)

  • 4 × 10GbE (SFP+) Auto MIDX

• Management Interfaces:

  • 1 × RJ45 Ethernet Management Port

  • 1 × Console Port

  • 1 × USB 2.0 Interface

Performance & Hardware

Layer 1 & Layer 2 Features

• Supports IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3z (1000Base-X), IEEE802.3ab (1000Base-T), IEEE802.3ae (10GBase)

• Spanning Tree Protocol (STP): IEEE802.1d (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP)

• Network Protection:

  • Root Guard, BPDU Guard, BPDU Tunnel

  • Port Loopback Detection, LLDP & LLDP-MED, UDLD

  • 802.3ad LACP (128 Group Trunks, 8 Ports per Trunk)

  • ERPS (G.8032)

  • VLAN Support: 4K VLAN, MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN, QinQ, GVRP

  • VLAN Translation (N:1 VLAN Translation)

  • Storm Control for Broadcast, Multicast, and Unicast

Layer 3 Features

• Routing Protocols: Static Routing, RIPv1/v2, OSPFv2, OSPFv3, BGP4, BGP4+

• Additional Features:

  • Policy-Based Routing (PBR) for IPv4 & IPv6

  • Virtual Router Redundancy Protocol (VRRP)

  • ECMP, BFD, IGMP v1/v2/v3, IGMP Proxy, Static Multicast Route

  • Multicast Receive Control, Illegal Multicast Source Detection

  • ARP Security: ARP Guard, Proxy ARP, ARP Binding, Anti-ARP Cheat/Scan

IPv6 Features

• IPv6 Routing: Static Routing, RIPng, OSPFv3, BGP4+

• Tunneling: 6to4 Tunnel, ISATAP Tunnel, GRE Tunnel

• IPv6 Security: IPv6 ACL, IPv6 QoS, IPv6 RA, IPv6 URPF

• Neighbor Discovery (ND), DNSv6, MLD Snooping (v1/v2), IPv6 Anycast RP

Quality of Service (QoS)

• Traffic Classification & Prioritization:

  • 8 Priority Queues

  • SP, WDRR, SWDRR Scheduling

  • Traffic Classification based on 802.1p CoS, ToS, DiffServ DSCP, ACL, Port Number

  • Traffic Policing, Priority Marking/Remarking

Security Features

• Access Control & Authentication:

  • 802.1X AAA, RADIUS, TACACS+ (IPv4 & IPv6)

  • Port & MAC-based Authentication

  • Guest VLAN & Auto VLAN

  • MAB (MAC Authentication Bypass)

• Advanced Security:

  • MAC-based Access Control Lists (ACLs)

  • IP ACL, MAC ACL, IP-MAC ACL

  • Port Security, DHCP Snooping, ARP Security

  • Anti-DDoS Protection (TCP SYN Flood, UDP Flood)

Management & Monitoring

• Management Interfaces: Console, Telnet, SSH v1/v2, Web (HTTP/HTTPS), SNMPv1/v2c/v3

• Traffic Monitoring & Analysis: sFlow, Traffic Monitor

• Time Synchronization: SNTP/NTP

• Configuration & Updates:

  • Dual Firmware & Configuration Files

  • FTP/TFTP Support

  • Syslog & External Syslog Server

Data Center Features

• Virtual Switching Framework (VSF): Enables switch stacking and redundancy

• 802.3ah OAM, 802.1ag OAM: Enhanced operation, administration, and maintenance

Ordering Information

Model: DG-GS4652FSE2

• Description: 10G Ethernet Routing Switch, 48 × 100/1000Base-X (SFP) + 4 × 10GbE (SFP+), AC + 48VDC Power Supply

Warranty & Compliance

• Subject to DIGISOL PRODUCT WARRANTY terms & conditions as displayed on the official DIGISOL website.

• Trademarks: DIGISOL logos and product names are trademarks of DIGISOL SYSTEMS LIMITED. Other trademarks and product names belong to their respective owners.

• Disclaimer: Product specifications and appearance are subject to change without notice.
