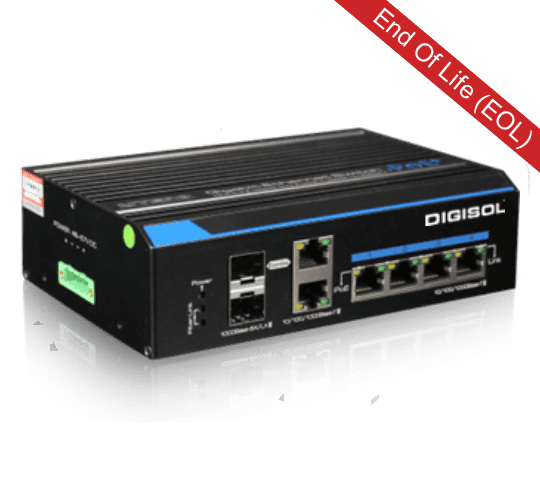

DIGISOL Unmanaged Din-Rail Industrial PoE Gigabit Switch, DG-IS1006GP
Key Features
Port Configuration:
4 × 10/100/1000M RJ-45 ports
2 × 1000M SFP ports
2 × 10/100/1000M Copper Uplink ports (1 GE / 1 SFP are Combo)
Network Performance:
8K MAC forwarding address capacity
Power over Ethernet (PoE):
4 PoE-enabled ports, delivering up to 30W per port
Power & Protection:
Dual Power Input: 44 ~ 57VDC
Relay Output for enhanced reliability
Surge Protection: 6KVA Lightning & Surge Protection
Durability & Environmental Resistance:
Operating Temperature: -40 ~ 75˚C (wide-range)
Enclosure: IP30-rated for industrial environments
Technical Specifications
Communications
Standards Supported: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3af, 802.3at, 802.3ab
LAN Interface:
10/100/1000Base-T(X)
100/1000Base-SX/LX
Transmission Distance:
Up to 100 meters using 4-wire Cat.5e/Cat.6 RJ45 cables (recommended for Gigabit ports)
Up to 80 km via SFP (depends on the SFP module used)
Transmission Speed:
Ethernet: 10/100/1000 Mbps Auto-Negotiation
Fiber: 100/1000 Mbps
Interface
Connectors:
4 × RJ45 (Gigabit)
2 × SFP Ports
2 × RJ45 (Gigabit) (1 Gigabit & 1 SFP are Combo ports)
1 × Removable 6-contact Terminal Block (Phoenix terminal)
LED Indicators:
RJ-45: Link/Activity
SFP: Link/Activity
PoE Budget:
60W max (130W optional)
Mechanical Design
Enclosure: IP30-rated metal shell with robust mounting kits
Dimensions: 163 × 110 × 46 mm
Mounting Options: DIN-rail & Wall mounting
Power Supply
Input Voltage: 44 ~ 57VDC (Redundant Dual Power Input)
Environmental Parameters
Operating Temperature: -40 ~ 75°C
Storage Temperature: -40 ~ 85°C
Operating Humidity: 5% ~ 95% (non-condensing)
Storage Humidity: 10% ~ 95% (non-condensing
