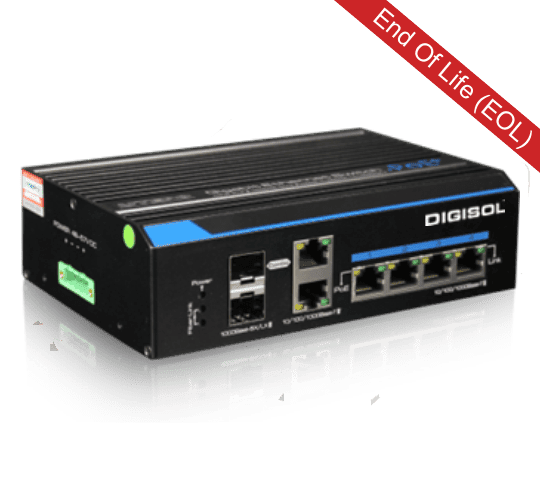

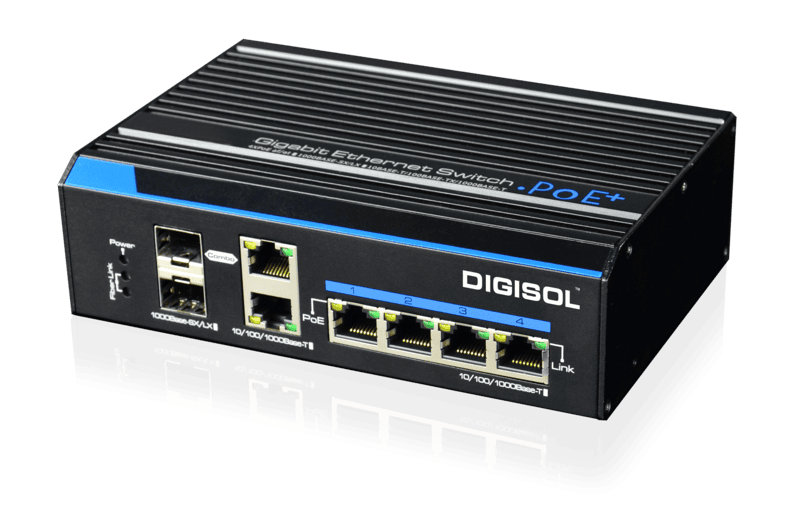

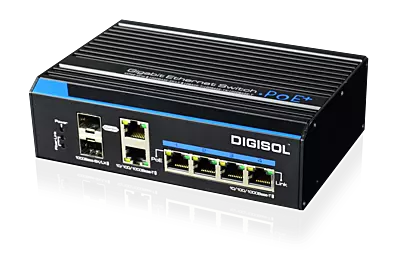

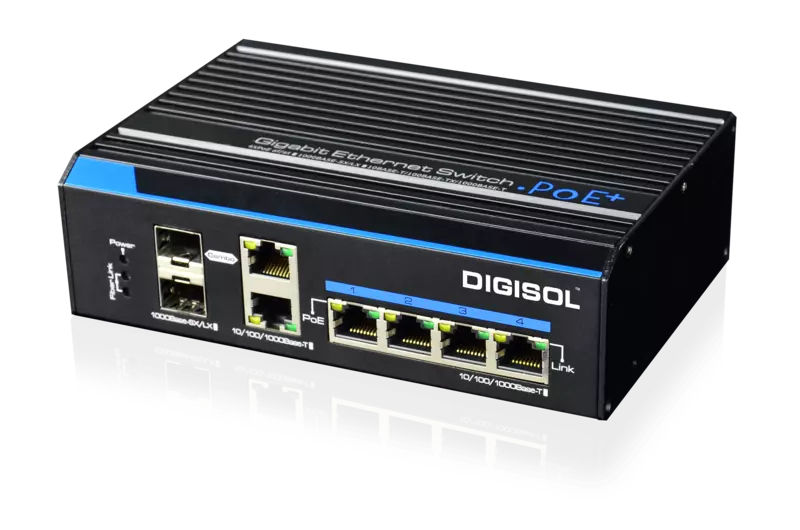

Digisol Unmanaged Din-Rail Industrial PoE Gigabit Switch, DG-IS1006GPH-A
Key Features
Port Configuration: 4 × 10/100/1000M RJ-45 ports, 2 × 1000M SFP ports, and 2 × 10/100/1000M RJ-45 ports (1 Gigabit RJ-45 & 1 SFP as Combo)
MAC Address Table: 8K MAC forwarding addresses
PoE Support: 4 PoE ports, delivering up to 30W per port
Power Input: Dual power input (44 ~ 57VDC) with relay output
Operating Temperature: Wide range of -40°C to 75°C
Enclosure: IP30-rated industrial-grade design
Protection: 6KVA Lightning & Surge Protection
Technical Specifications
Communications
Standards: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3af, 802.3at, 802.3ab
LAN: 10/100/1000Base-T(X), 100/1000Base-SX/LX
Transmission Distance:
Up to 100m (using Cat.5e or Cat.6 RJ45 cable for Gigabit ports)
Up to 80km (depending on SFP module)
Transmission Speed:
Ethernet: 10/100/1000 Mbps (Auto-Negotiation)
Fiber: 100/1000 Mbps
Interface
Connectors:
4 × RJ45 (Gigabit) ports
2 × SFP ports
2 × RJ45 (Gigabit) ports (1 Gigabit & 1 SFP as Combo)
1 removable 6-contact terminal block (Phoenix terminal)
LED Indicators:
RJ-45: Link/Activity
SFP: Link/Activity
PoE Budget:
60W max (130W optional)
Mechanical
Enclosure: IP30-rated metal shell with solid mounting kits
Dimensions: 163 mm × 110 mm × 46 mm
Mounting Options: DIN-rail & Wall mounting
Power
Power Input: 44 ~ 57VDC, Redundant Dual Power Input
Environmental
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 10% to 95% (non-condensing)
General
- TypesUnManaged
