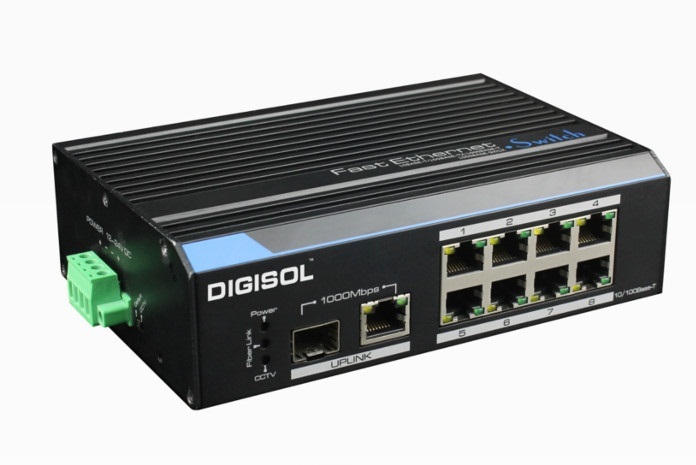

DIGISOL 8 Port Fast Ethernet Unmanaged Industrial Switch with 1 Ethernet & 1 SFP Gigabit Uplink Ports, DG-IS1010F
Key Features
Port Configuration:
8 × 10/100BaseT(X) Ethernet ports
1 × 1000BaseT(X) Gigabit uplink port
1 × 1000Base SFP uplink port
Performance & Reliability:
IEEE 802.3x Flow Control & Back-Pressure Support
L2 Wire-Speed Switching Engine for efficient data transmission
Power Alarm Relay Output for enhanced safety
Fan-less Design for silent operation and improved durability
Power & Protection:
Dual Power Input (12 ~ 58V DC) with Reverse Power Protection
Environmental Adaptability:
Wide Operating Temperature Range: -40 to +75°C, suitable for harsh environments
IP30-rated enclosure for industrial-grade durability
Technical Specifications
Ethernet Features
Switching Mode: Store-and-forward, wire-speed, non-blocking switching engine
MAC Address Table: Supports up to 1K MAC addresses
Standards Compliance:
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
Uplink Ports:
1 × 1000 Mbps Optical SFP port
1 × 1000 Mbps Ethernet port
Flow Control:
IEEE 802.3x (Full Duplex)
Back-Pressure support (Half Duplex)
Fault Contact: Power alarm relay output for fault notification
DIP Switch Functions:
Enable/Disable broadcast storm protection
Enable/Disable power alarm
Power Supply
Input Type: Redundant power input terminal with reverse power protection
Voltage Range: 12 ~ 58V DC
LED Indicators
Power Status: Displays input power status
Ethernet Port Status: Indicates link activity and speed
Environmental & Compliance
Operating Temperature: -40 to +75°C (cold startup at -40°C)
Storage Temperature: -40 to +85°C
Humidity: 5% ~ 95% RH (non-condensing)
Vibration, Shock & Freefall Compliance: IEC60068-2-6, -27, -32
Mechanical Design
Ingress Protection: IP30-rated enclosure for industrial durability
Mounting Options: DIN-rail mounting for secure installation
