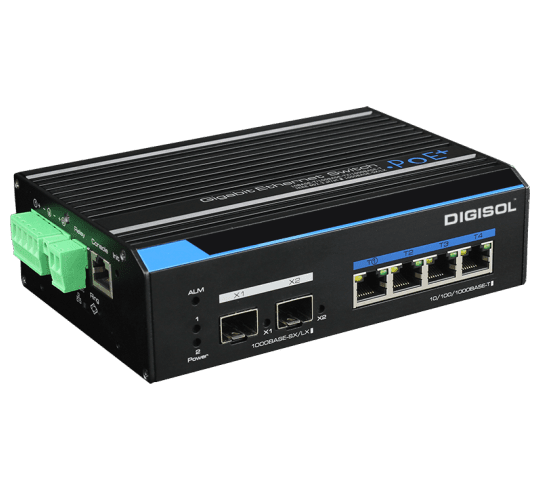

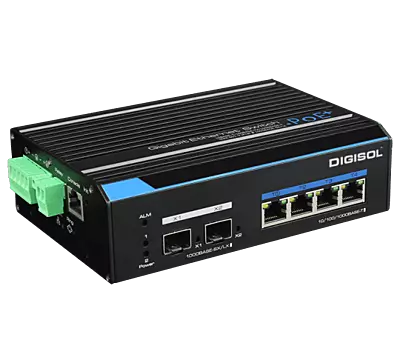

Digisol L2 Managed Din-Rail Industrial Gigabit PoE Switch, DG-IS4506HPE

Technical Specifications

Communications

• Supported Standards: IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at

• LAN Interface:

  • 10/100/1000Base-T(X)

  • 1000Base-SX/LX

• Transmission Distance:

  • Up to 100m (via Cat.5e/Cat.6 RJ45 cables for Gigabit ports)

  • Up to 80km (via SFP, depending on the module used)

• Transmission Speed:

  • Ethernet: 10/100/1000 Mbps

  • Fiber: 1000 Mbps

Interface

• Connectors:

  • 4 × RJ45 (Gigabit)

  • 2 × SFP Ports

  • 1 × Removable 6-contact Terminal Block (Phoenix terminal)

• LED Indicators:

  • RJ-45: Link/Activity

  • SFP: Link/Activity

• PoE Budget: 60W

Mechanical Design

• Enclosure: IP30-rated metal shell with durable mounting kits

• Dimensions: 159 × 110 × 46.5 mm

• Mounting Options: DIN-rail & Wall mounting

Power Supply

• Input Voltage: 48 ~ 57V DC (Redundant Dual Power Input)

Environmental Parameters

• Operating Temperature: -40 ~ 75°C

• Storage Temperature: -40 ~ 85°C

• Operating Humidity: 5% ~ 95% (non-condensing)

• Storage Humidity: 10% ~ 95% (non-condensing)

Software Features

Port Management

• Enable/Disable Ports

• Port Rate Configuration

• Full-Duplex Mode Support

• IEEE 802.3x Flow Control

• Port Name Modification

VLAN Support

• Supports 4K VLANs

• IEEE 802.1Q Protocol-Based VLAN

• Port-Based VLAN

Quality of Service (QoS)

• 8-Level Priority Management

• Weighted Round Robin (WRR) Scheduling

• 802.1P and DSCP Priority

Multicast Management

• Supports SNMP v1/v2/v3 Protocol

• IGMP Snooping

PoE Management

• Total Power Consumption Control

• PoE ON/OFF Control

• Supports Single-Port 60W Max Power Configuration

• Port Output Priority Adjustment

Alarm & Safety Features

• Relay Alarm Output for power failure, network link loss, and PoE failure

• IP, MAC, Port, and VLAN Binding

• MAC Address Auto-Learning, Aging & Filtering

• Port Isolation & Speed Limiting

• Rapid Spanning Tree Protocol (RSTP)

• Fast-Ring Support for network redundancy

• 5 Groups of 8-Port Link Aggregation

• RADIUS Authentication & 802.1X Authentication

System Management & Maintenance

• Web-Based Management & Telnet Support

• Firmware Upgrades via FTP/TFTP/HTTP

• Flow Calculation & MAC Address Lookup

• Configurable IP Address & DNS Server

• User Authentication & Password Management

• System Settings Backup & Restore

• History Logs & Journal Management

Ordering Information

• Model: DG-IS4506HPE

• Description: DIGISOL Industrial L2-Managed Switch with 4 Gigabit PoE Ports & 2 Gigabit SFP Ports

Warranty: Limited Lifetime Warranty (as per company policy on the website).
