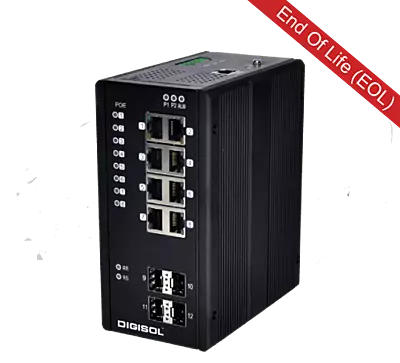

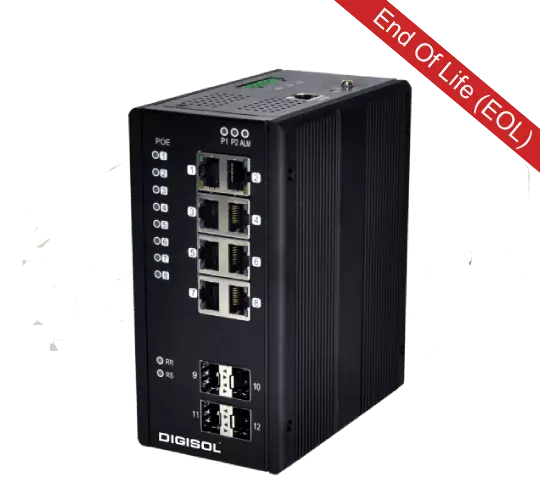

Digisol L2-Managed Din-Rail Industrial Ethernet Switch-DG-IS4512HP

Port Configuration:

• Offers 4 or 8 10/100/1000 Base-TX PoE ports.

• Includes 2 or 4 100/1000Base-F SFP slots.

Power over Ethernet (PoE) Standards:

• Supports IEEE 802.3af (15.4W), IEEE 802.3at (30W High Power PoE), and IEEE 802.3bt (60W Ultra PoE).

• Notably, ports 1 and 2 of the DG-IS4514HP model support Ultra PoE at 60W.

Total PoE Power Budget:

• 120W for DG-IS4508HP.

• 240W for both DG-IS4512HP and DG-IS4514HP models.

Performance Features:

• Supports 9K Jumbo frames for efficient data transmission.

• Equipped with an L2 wire-speed switching engine.

• Supports 8K MAC forwarding addresses.

Network Redundancy and Protection:

• Offers network redundancy through LACP and Spanning Tree protocols (STP, RSTP, MSTP).

• Features quick ring fail-over protection with recovery in less than 20 ms.

VLAN Support:

• Provides port-based and tag-based VLANs.

• Supports IEEE 802.1ad (QinQ VLAN).

• Allows adding or removing VLAN tags.

Multicasting Capabilities:

• Supports IGMP v1/v2, including proxy and snooping functions.

Traffic Management:

• Features multicast, broadcast, and flooding storm control.

Security Features:

• Supports IEEE 802.1x access control for enhanced network security.

Management Interfaces:

• Provides multiple management interfaces, including CLI, Web-based, and SNMP.

Power Features:

• Supports dual power input with reverse power protection for reliability.
