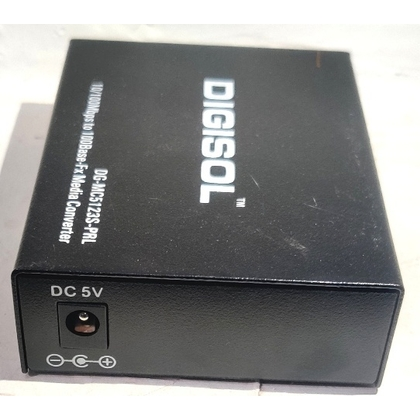

Digisol 100Base-TX/Fx Single fiber Media Converters, DG-MC5123S-PTLV12
Feature | Description |
|---|
Standard Compliance | IEEE 802.3u 100Base-Tx/FX |
Wavelength Support | Tx/RX: 1310/1550 nm and Tx/RX: 1550/1310 nm |
Fiber Type | Single Mode Single Fiber (SC Type) |
Copper Interface | RJ-45 |
Auto MDI/MDIX | Automatic identification of MDI/MDI-X cross line |
Data Rate | 100 Mbps |
Cable Type | Fiber (Single Mode): 8.3/125, 8.7/125, 9/125, or 10/125 µm |
Maximum Cable Distance | Copper: 100 meters |
Power Supply | 5V DC 1A (External Adapter) |
LED Indicators | PWR, Link/Act, DUP, SD |
