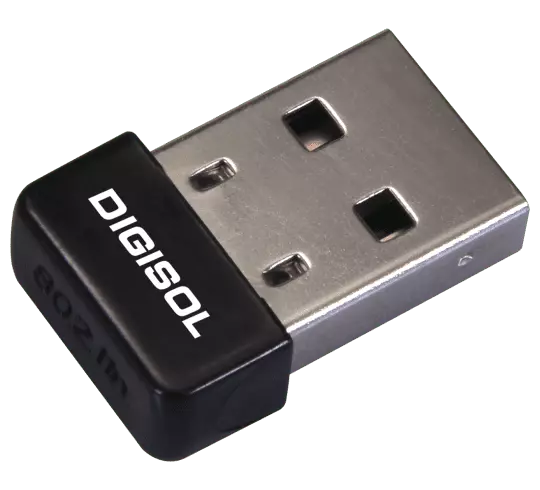

Digisol 802.11n 150Mbps Wireless Micro USB Adapter-DG-WN3150Nu (H/W Ver. B1)
Key Features – Digisol 802.11n 150Mbps Wireless Micro USB Adapter
High-Speed Wireless Connectivity – Supports speeds up to 150Mbps for seamless browsing and streaming.
Standards Compliance – Fully compatible with IEEE 802.11b/g/n wireless standards.
Advanced Security – Ensures a secure connection with WEP, WPA, and WPA2 encryption, along with WPS support.
Soft Access Point Mode – Converts the adapter into a wireless hotspot for sharing internet access.
USB 2.0 Interface – Ensures fast data transfer and compatibility with most devices.
Internal Antenna (1T1R) – Provides stable and reliable signal transmission.
LED Indicator – Link/Activity LED for connection status monitoring.
Ultra-Compact Design – Micro-size form factor for portability and unobtrusive use.
Technical Specifications – Digisol 802.11n 150Mbps Wireless Micro USB Adapter
Standards Compliance
IEEE 802.11b / 802.11g / 802.11n
Interface
USB 2.0 Type-A
Frequency Band
2412 ~ 2483.5 MHz
Wireless Data Rate
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11n: Supports PHY rates up to 150Mbps
Security Features
WEP 64/128-bit encryption
WPA / WPA2 security protocols
WPS (Wi-Fi Protected Setup)
IEEE 802.1x RADIUS authentication
Quality of Service (QoS)
WMM (Wi-Fi Multimedia) support
Antenna
Internal Antenna (1T1R)
Output Power
802.11b (CCK) 11Mbps: 18±1 dBm
802.11g (OFDM) 54Mbps: 15±1 dBm
802.11n:
HT20 @ MCS7: 14±1 dBm
HT40 @ MCS15: 14±1 dBm
Operating System Compatibility
Windows XP, Vista, 7, 8 (32-bit), 10 (32/64-bit)
Supports in-built Soft Access Point on Windows 7 & Windows 8
LED Indicator
Link/Activity LED
Physical Dimensions & Weight
Net Dimensions: 21.9 (L) x 14.7 (W) x 6.7 (H) mm
Gross Dimensions: 169 (L) x 114 (W) x 15 (H) mm
Net Weight: 2.8g
Gross Weight: 23g
Environmental Specifications
Operating Temperature: -10ºC to +50ºC
Storage Temperature: -20ºC to +85ºC
Operating Humidity: 10% ~ 90% (Non-Condensing)
Storage Humidity: 5% ~ 90% (Non-Condensing)
