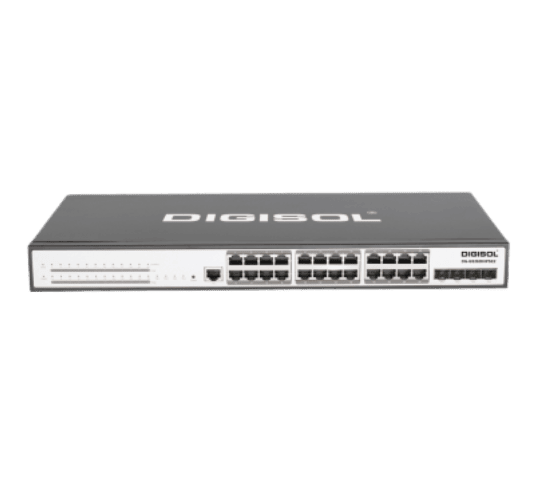

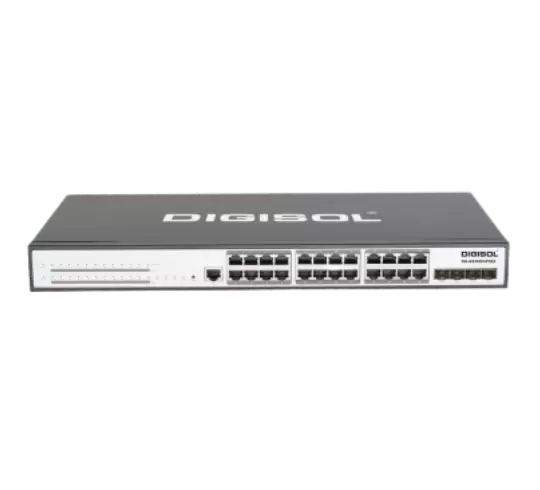

DIGISOL 10GE L3 Ethernet Switch -DG-GS2628HPSE2

Technical Specifications

1. Interface & Performance

• Ports: 24 GE PoE/PoE+ ports, 4 10GE/GE SFP+ ports

• Console: 1 RJ45 port

• Switching Capacity: 128 Gbps

• Forwarding Rate: 96 Mpps (with 64-byte packets)

• Forwarding Mode: Store-and-Forward

2. Physical Specifications

• Chassis Dimensions: 440 × 210 × 44 mm

• Chassis Weight (Empty): 3 kg

• Package Dimensions: 555 × 295 × 88 mm

• Package Weight: 4.1 kg

• Noise Level (at 25°C): 37.5 dBA

• MTBF (Mean Time Between Failures): >200,000 hours

3. Power & PoE Features

• Power Consumption (No Load): < 25W

• Power Consumption (Full Load): < 408W

• Power Supply: AC 100-240V, 410W

• PoE Power Budget: 370W

• Total Output (BTU/hr): 1392.49

4. Memory & Data Handling

• Flash Memory: 16MB

• DRAM: 256MB

• MAC Address Table: 16K

• Packet Buffer Size: 1.5MB

• Jumbo Frame Support: Up to 9K

• Interface VLAN: 64

• Routing Table Size: 2040

Key Features

1. VLAN Support

• 4K Active VLANs

• QinQ & Selective QinQ

• GVRP, Private VLAN, Voice VLAN

2. Spanning Tree Protocols

• STP (802.1D), RSTP (802.1W), MSTP (802.1S)

• BPDU Guard, Root Guard, Loopback Guard

3. Multicast & IP Routing

• Multicast: IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP Filtering

• IPv4/IPv6 Routing: Static Routing, RIP, OSPF, Dual Stack Support

4. IPv6 Support

• ICMPv6, DHCPv6, ACLv6, Telnetv6

• IPv6 Neighbor Discovery, Path MTU Discovery

• MLD v1/v2, MLD Snooping, Static Routing

• RIPng, OSPFv3, Manual & ISATAP Tunnels

5. QoS (Quality of Service)

• Traffic Classification: MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS

• Queue Scheduling: SP, WRR, SP+WRR

• Traffic Management: Tail-Drop, WRED, Flow Monitoring, Traffic Shaping

6. Security Features

• Port Isolation, Port Security, MAC Sticky

• IP+MAC+Port Binding, DHCP Snooping, DAI & IP Source Guard

• IEEE 802.1x Authentication, AAA Radius & TACACS+

• L2/L3/L4 ACL Filtering, DoS Attack Protection (SYN Flood, UDP Flood, etc.)

• Broadcast/Multicast/Unknown Unicast Storm Control

• Encryption: BMD5, SHA-256, RSA-1024, AES-256**

7. DHCP Features

• DHCP Server, Relay, and Client

• DHCP Snooping & Option 82

8. High Reliability & Redundancy

• Static/LACP Link Aggregation, Interface Backup

• EAPS & ERPS for Fast Ring Protection

• ISSU (Uninterrupted System Upgrade)

• Supports Up to 4-Unit Stacking

• VRRP (Virtual Router Redundancy Protocol), UDLD

9. Management & Monitoring

• Access: Console, Telnet, SSH v1/2, HTTP, HTTPS

• SNMP: SNMP v1/v2/v3, RMON

• File Management: TFTP, FTP, SFTP

• Monitoring: NTP, ZTP, SPAN, RSPAN

Accessories

• Power Cord

• Rack Mounting Kits

• Console Cable

Environmental Specifications

• Operating Temperature: 0°C to 50°C

• Operating Humidity: 10% - 90% (Non-condensing)

• Storage Temperature: -20°C to -70°C

• Storage Humidity: 5% - 95% (Non-condensing)
