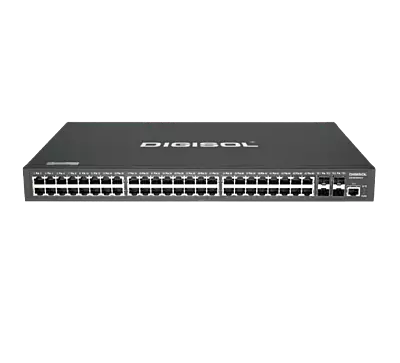

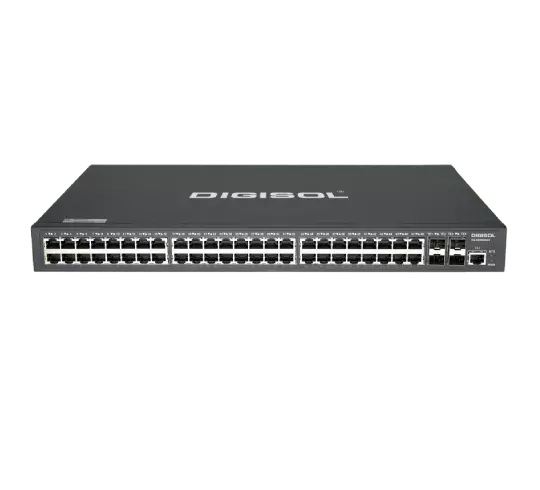

DIGISOL 10GE L3 Ethernet Switch – DG-GS2652SE2

Technical Specifications – DG-GS2652SE2

Hardware & Interface

• Ports: 48 GE TX ports, 4 10GE/GE SFP+ ports

• Console: 1 RJ45 port

• Switching Capacity: 176Gbps

• Forwarding Rate: 132 Mpps (64-byte packets)

• Chassis Dimensions: 440mm × 280mm × 44mm

• Chassis Weight: 3.8kg (empty)

• Package Dimensions: 576mm × 448mm × 94mm

• Package Weight: 4.6kg

• Power Supply: AC 100-240V

• Power Consumption:

  • No Load: < 24W

  • Full Load: 42W

• MTBF: > 200,000 hours

• Forwarding Mode: Store-and-Forward

• Memory & Storage:

  • Flash: 16MB

  • DRAM: 512MB

  • MAC Table: 32K

  • Buffer Size: 2MB

• Jumbo Frame Support: 9K

Networking & Layer-3 Features

• VLAN Support:

  • 4K Active VLANs

  • QinQ & Selective QinQ

  • GVRP, Private VLAN, Voice VLAN

• Spanning Tree Protocols:

  • IEEE 802.1D (STP), 802.1W (RSTP), 802.1S (MSTP)

  • BPDU Guard, Root Guard, Loopback Guard

• Multicast Support:

  • IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave

  • MVR, IGMP Filtering

• IP Routing:

  • Static Routing

  • RIP, OSPF, IPv4 Dual Stack

• IPv6 Support:

  • ICMPv6, DHCPv6, ACLv6

  • IPv6 Telnet, IPv6 Neighbor Discovery, Path MTU Discovery

  • MLD v1/v2, MLD Snooping

  • IPv6 Static Routing, RIPng, OSPFv3

  • Manual Tunnel, ISATAP Tunnel, 6-to-4 Tunnel

Quality of Service (QoS)

• Traffic Management:

  • CAR (Committed Access Rate)

  • MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS-based QoS

  • 802.1P/DSCP Priority Relabeling

  • SP, WRR, and SP+WRR Scheduling Algorithms

  • Tail-Drop, WRED (Weighted Random Early Detection)

  • Flow Monitoring and Traffic Shaping

Security Features

• Access & Port Security:

  • Port Isolation, Port Security, IP+MAC+Port Binding

  • MAC Sticky, DAI (Dynamic ARP Inspection)

  • IP Source Guard (IPv4), IEEE 802.1X Authentication

  • AAA with RADIUS and TACACS+

  • Layer-2/3/4 ACL Flow Identification & Filtration

• Threat Protection:

  • DDoS Protection (TCP SYN Flood, UDP Flood, etc.)

  • Broadcast, Multicast, and Unknown Unicast Storm Control

  • Secure Encryption: MD5, SHA-256, RSA-1024, AES-256

DHCP & Network Reliability

• DHCP Support:

  • DHCP Server, Relay, Client

  • DHCP Snooping with Option 82

• Redundancy & Failover:

  • Static & LACP Link Aggregation, Interface Backup

  • EAPS & ERPS for Rapid Failover

  • ISSU (In-Service Software Upgrade)

  • VRRP (Virtual Router Redundancy Protocol)

  • UDLD (Unidirectional Link Detection)

Management & Monitoring

• Access & Control:

  • Console, Telnet, SSH v1/v2, HTTP/HTTPS, SNMP v1/v2/v3, RMON

  • TFTP, FTP, SFTP for Firmware & Configuration Management

  • NTP (Network Time Protocol), ZTP (Zero-Touch Provisioning)

  • SPAN, RSPAN for Traffic Mirroring

Environmental & Accessories

• Operating Conditions:

  • Temperature: 0°C to 50°C

  • Humidity: 10% - 90% (non-condensing)

• Storage Conditions:

  • Temperature: -20°C to 70°C

  • Humidity: 5% - 95% (non-condensing)

• Included Accessories:

  • Power Cord

  • Rack Mounting Kits

  • Console Cable
