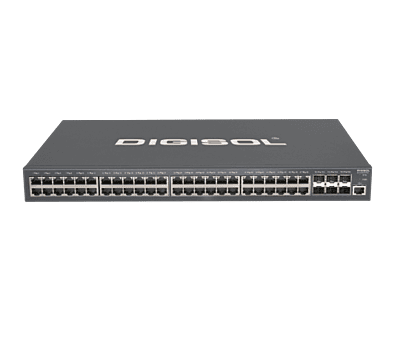

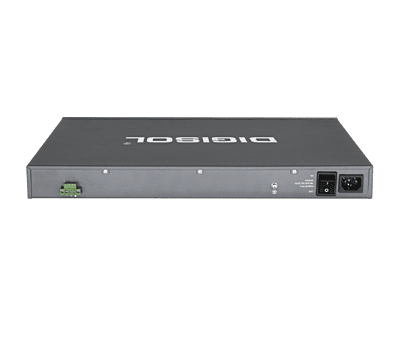

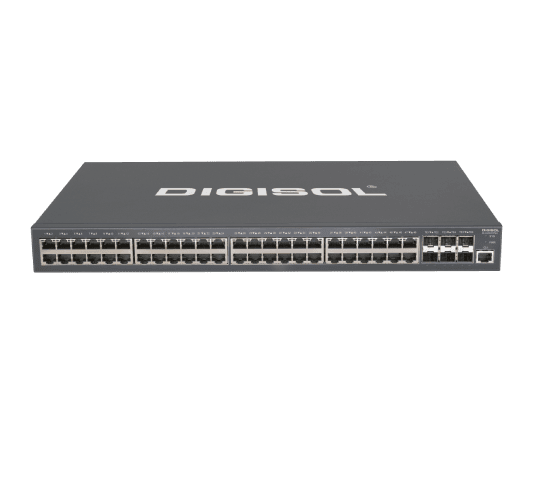

DIGISOL 10GE L3 Lite PoE Ethernet Switch – DG-GS2654HPSE2

DIGISOL DG-GS2654HPSE2 – 10GE L3 Lite PoE Ethernet Switch

Hardware Specifications

• Interfaces:

  • 48 × 1G PoE ports & 6 × 10G SFP+ uplink ports

  • 1 × RJ45 console port

• Performance:

  • Switching Capacity: 216 Gbps

  • Forwarding Rate: 162 Mpps (64-byte packets)

  • MAC Address Table: 16K

  • Jumbo Frame Support: Up to 9K

  • Buffer Size: 1.5MB

• Memory:

  • Flash Memory: 16MB

  • DRAM: 512MB

• VLAN Support:

  • 4K Active VLANs

  • QinQ & Selective QinQ

  • GVRP, Private VLAN, Voice VLAN

Chassis & Power

• Dimensions (W×D×H): 440 × 300 × 44 mm

• Weight:

  • Chassis: 5.2 kg (empty)

  • Package: 6.1 kg

• Power Supply: AC 100-240V

• Power Consumption:

  • No Load: <25W

  • Full Load (without PoE): 48W

• PoE Budget: 370W

• Cooling: Dual Fans

• Total BTU Output:

  • 1535.84 @ AC

  • 2730.38 @ DC

• Noise Level (@ 25°C): 45 dBA

• MTBF (Mean Time Between Failures): >200,000 Hours

Layer 2 & Layer 3 Features

• Spanning Tree Protocols:

  • STP (802.1D), RSTP (802.1W), MSTP (802.1S)

  • BPDU Guard, Root Guard, Loopback Guard

• Multicast Support:

  • IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave

  • MVR, IGMP Filtering

• IPv4 & IPv6 Routing:

  • Static Routing, RIP, OSPF

  • IPv6 Dual Stack, ICMPv6, DHCPv6, ACLv6

  • IPv6 Telnet, IPv6 Neighbor Discovery

  • Path MTU Discovery, MLD v1/v2, MLD Snooping

  • IPv6 Static Routing, RIPng, OSPFv3

  • Manual Tunnel, ISATAP Tunnel, 6-to-4 Tunnel

Quality of Service (QoS)

• Traffic Prioritization:

  • MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS-based QoS

  • 802.1P/DSCP Priority Re-labeling

• Traffic Management:

  • SP, WRR, SP+WRR Scheduling

  • Tail-Drop, WRED

  • Flow Monitoring & Traffic Shaping

Security Features

• Access Control & Protection:

  • Port Isolation & Security

  • MAC Sticky, IP+MAC+Port Binding

  • DAI & IP Source Guard (IPv4)

  • IEEE 802.1X, AAA, RADIUS, TACACS+

  • L2/L3/L4 ACL Flow Identification & Filtration

  • DDoS Protection (TCP SYN Flood, UDP Flood, etc.)

  • Broadcast/Multicast/Unknown Unicast Storm Control

  • Secure Encryption: MD5, SHA-256, RSA-1024, AES-256

DHCP & Network Reliability

• DHCP Functions:

  • DHCP Server, Relay, Client

  • DHCP Snooping, Option 82 Support

• Link Aggregation & Redundancy:

  • Static & LACP Link Aggregation

  • EAPS & ERPS for Rapid Failover

  • ISSU (Uninterrupted System Upgrade)

  • Supports Up to 4 Units per Stack

Management & Monitoring

• Remote & Local Management:

  • Console, Telnet, SSH v1/v2, HTTP, HTTPS

  • SNMP v1/v2/v3, RMON, TFTP, FTP, SFTP

  • NTP, ZTP, SPAN, RSPAN

  • Dying Gasp Support

• Advanced Features:

  • VRRP, UDLD

  • Port Mirroring & Traffic Analysis

Environmental Specifications

• Operating Temperature: 0°C – 50°C

• Storage Temperature: -20°C – 70°C

• Operating Humidity: 10% – 90% (Non-Condensing)

• Storage Humidity: 5% – 95% (Non-Condensing)

Included Accessories

• Power Cord

• Rack Mounting Kit

• Console Cable
