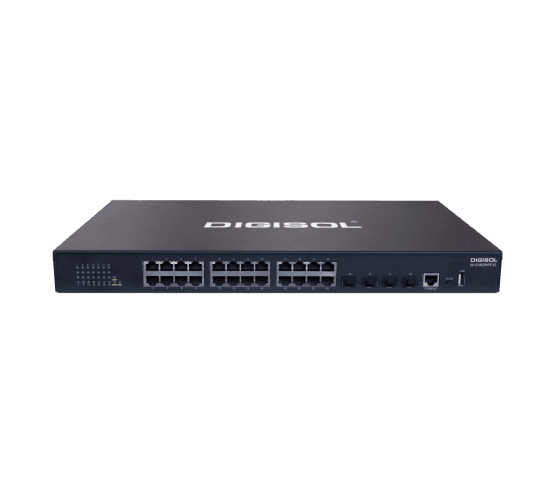

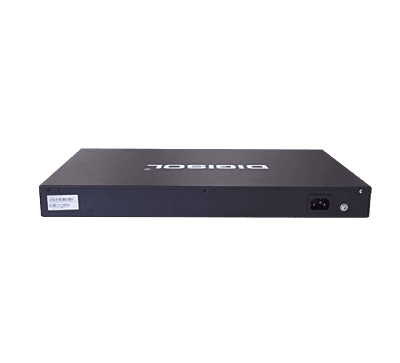

DIGISOL 24 PoE Port L2+ 10G Access Switch – DG-GS4628HPE-XS

Hardware Features

Ports:

• 24 × 10/100/1000Base-T PoE + 4 × 10GE (SFP+), Auto-MDIX

• Management Ports:

  • 1 × Console port

  • 1 × USB 2.0 interface

  • 1 × Reset button

Performance:

• Switching Capacity: 128Gbps

• Forwarding Rate: 95Mpps

• MAC Address Table: 16K

• Jumbo Frame Support: 10K

• Packet Buffer: 12MB

• ACL Table: 512

• Queues per Port: 8

• VLAN Table: 4K

Physical Specifications:

• Dimensions (W×H×D): 440mm × 44mm × 300mm

• Power Input: 100240VAC, 5060Hz

• PoE Budget: 370W

• Operating Temperature: 0°C ~ 50°C

• Storage Temperature: -40°C ~ 70°C

• Relative Humidity: 5% ~ 95% (non-condensing)

Main Features

VLAN Support:

• Port-based VLAN

• IEEE 802.1Q VLAN

• Private VLAN

• Protocol VLAN

• Voice VLAN

• MAC VLAN

• QinQ, Selective QinQ, Flexible QinQ

• VLAN Translation, N:1 VLAN Translation

Layer 3 (L3) Features:

• Static Routing

• Policy-Based Routing (PBR)

DHCP Support:

• IPv4/IPv6 DHCP Client

• IPv4/IPv6 DHCP Relay (Option 82, Option 37/38)

• IPv4/IPv6 DHCP Snooping

• IPv4/IPv6 DHCP Server

Reliability & Redundancy:

Spanning Tree Protocol (STP):

• IEEE 802.1D (STP)

• IEEE 802.1w (RSTP)

• IEEE 802.1s (MSTP)

• Root Guard

• BPDU Guard

• BPDU Forwarding

• TCN Filtering

Link Aggregation Control Protocol (LACP):

• Supports 64 groups, each with up to 8 ports

Layer 2 (L2) Ring Protection:

• MRPP (Multiple Ring Protection Protocol)

• ERPS (Ethernet Ring Protection Switching - ITU-T G.8032)

• Loopback Detection

• Fast Link Recovery

Security Features

• Access Control Lists (ACL):

  • IP ACL, MAC ACL, MAC-IP ACL

  • User-Defined ACL

  • Time-Range-Based ACL

  • ACL Rules configurable on Ports & VLAN interfaces

• Storm Control: Prevents packet-based traffic surges

• Port Security: MAC-based limiting on VLAN & Ports

• ARP Security:

  • Anti-ARP Spoofing & Scanning

  • ARP Binding

  • ND Snooping

  • Dynamic ARP Inspection (DAI)

• IEEE 802.1X Authentication

• AAA Support (Authentication, Authorization, Accounting)

• RADIUS & TACACS+ Authentication

Multicast Support

• IGMP Snooping (v1/v2/v3)

• IGMP Proxy

• IGMP v3

• MLD v1/v2 Snooping

Quality of Service (QoS) Features

• 8 Queues per Port

• Bandwidth Control

• Traffic Flow Redirect

• Traffic Classification Based On:

  • ACL (Access Control List)

  • VLAN ID

  • CoS (Class of Service)

  • ToS (Type of Service)

  • DSCP (Differentiated Services Code Point)

• Policy-Based Traffic Control (Port & VLAN)

• Policing Mechanism:

  • Single Rate, Single Barrel, Double Color

• Scheduling Algorithms:

  • SP (Strict Priority)

  • WDRR (Weighted Deficit Round Robin)

  • SP + WDRR Hybrid Mode

• IP Fragmentation Matching

Maintenance & Management

• Network Management Interfaces:

  • TFTP/FTP

  • CLI, Telnet, Console

  • Web/SSL (IPv4/IPv6)

  • SSH (IPv4/IPv6)

  • SNMP (v1/v2c/v3)

  • SNMP Trap

  • Public & Private MIB Interface

• Monitoring & Diagnostics:

  • RMON (1,2,3,9)

  • Ping & Trace Route

  • Syslog (IPv4/IPv6)

  • SNTP/NTP Synchronization (IPv4/IPv6)

  • Dual Firmware Images & Multiple Configuration Files

  • Port Mirroring, RSPAN, sFlow

  • VCT & DDM (Diagnostics)

  • OAM (Operations, Administration, and Maintenance)

  • ULDP (Similar to Cisco UDLD)

  • LLDP & LLDP-MED

Energy Efficiency & Green Technology

• Auto-Speed Fan Control – Adjusts speed based on temperature for optimal cooling and noise reduction.
