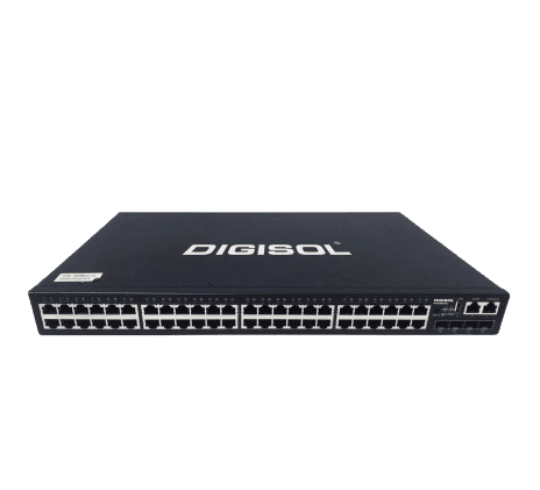

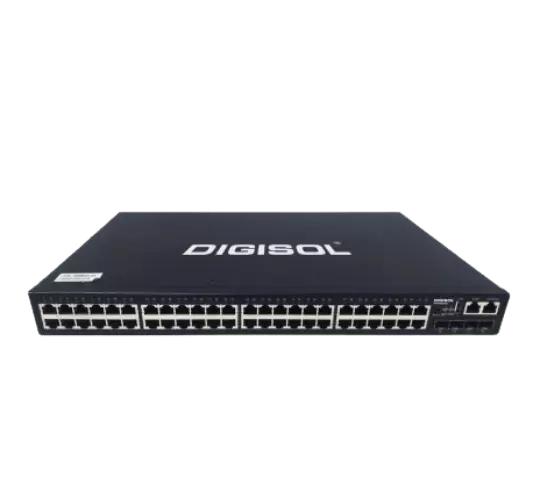

DIGISOL 48 Port Gigabit Ethernet Access Layer 3 PoE Switch with 4 10 Gigabit SFP+ Uplink Ports-DG-GS4652HPSE

Technical Specifications

Main Features

L1, L2 Features:

• Compliant with IEEE standards:

  • IEEE 802.3 (10Base-T)

  • IEEE 802.3u (100Base-TX)

  • IEEE 802.3z (1000BASE-X)

  • IEEE 802.3ab (1000Base-T)

  • IEEE 802.3ae (10GBase)

  • IEEE 802.3x (Flow Control)

  • IEEE 802.3ak (10GBASE-CX4)

• Advanced networking capabilities:

  • Port loopback detection

  • LLDP & LLDP-MED

  • UDLD

  • IEEE 802.3ad LACP (Max 128 groups, 8 ports per trunk)

  • LACP load balancing

  • N:1 Port Mirroring, RSPAN, ERSPAN

• Spanning Tree Protocols:

  • IEEE 802.1d (STP)

  • IEEE 802.1w (RSTP)

  • IEEE 802.1s (MSTP)

  • Root Guard, BPDU Guard, BPDU Tunnel

  • IP Source Guard, MRPP

• VLAN Support:

  • IEEE 802.1Q (4K VLANs)

  • MAC VLAN, Voice VLAN, Private VLAN (PVLAN), Protocol VLAN, Multicast VLAN

  • QinQ, Selective QinQ, Flexible QinQ, GVRP, N:1 VLAN Translation

• Traffic Management:

  • Broadcast, Multicast, and Unicast Storm Control

  • IGMP v1/v2/v3 Snooping & L2 Query

  • ND Snooping, MLD v1/v2 Snooping

  • Port Security

  • Flow Control: HOL Blocking Prevention, IEEE 802.3x

  • Bandwidth Control

L3 Features

• Routing Protocols:

  • Static Routing, RIP v1/v2, OSPF v2, BGP4

  • OSPFv3, BGP4+

  • OSPF Multiple Process, LPM Routing

  • Policy-Based Routing (PBR) for IPv4 & IPv6

  • VRRP, URPF, ECMP, BFD

• Multicast & ARP Features:

  • IGMP v1/v2/v3, IGMP Proxy, Static Multicast Route

  • Multicast Receive Control, Illegal Multicast Source Detection

  • ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding

  • Gratuitous ARP, ARP Limit, Anti ARP/NDP Cheat & Scan

  • Dynamic ARP Inspection (DAI), DNS Client & Relay

  • GRE Tunnel Support

IPv6 Features

• IPv6 Tunneling:

  • 6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel

• IPv6 Routing & Security:

  • ICMPv6, ND, DNSv6

  • IPv6 LPM Routing, IPv6 Policy-Based Routing (PBR)

  • IPv6 VRRPv3, IPv6 URPF, IPv6 RA

  • RIPng, OSPFv3, BGP4+

  • MLD Snooping, IPv6 Multicast VLAN

  • MLD v1/v2, IPv6 ACL, IPv6 QoS

Hardware Specifications

• Switching Capacity: 176 Gbps

• Throughput: 131 Mpps

• MAC Address Table: 16K

• Jumbo Frame: 10K

• ARP Table: 4K

• Routing Table: 1K

Physical & Power Details

• Model: DG-GS4652HPSE

• Dimensions (WxHxD): 440mm × 44mm × 320mm

• Power Consumption: <897W

• PoE Standards Supported:

  • IEEE 802.3af (PoE)

  • IEEE 802.3at (PoE+)

  • Total PoE Power Budget: 740W

• Management Ports:

  • 1 x RJ45 Ethernet Management Port

  • 1 x Console Port

  • 1 x USB 2.0 Interface

Environmental Conditions

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Humidity (Non-condensing): 10% – 90% (Storage: 95%)

Physical Ports

• Port Configuration: 48 x 10/100/1000Base-T + 4 x 10GE (SFP+)

Switching Solutions

• Memory:

  • RAM: 512MB

  • Flash: 32MB SPI + 128MB NAND

• Power Supply:

  • AC + 48V DC, PoE Budget: 740W

Advanced Networking Features

QoS (Quality of Service)

• 8 Queues with multiple scheduling mechanisms:

  • SWRR, SP, DWRR, SDWRR

• Traffic Classification:

  • Based on 802.1p CoS, ToS, DiffServ DSCP, ACL, Port Number

• Traffic Policing and PRI Marking/Remarking

ACL (Access Control List)

• Types:

  • IP ACL, MAC ACL, IP-MAC ACL

  • Standard & Expanded ACLs based on:

    • Source/Destination IP or MAC

    • IP Protocol

    • TCP/UDP Port, DSCP, ToS, IP Precedence

    • VLAN, Tag/Untag, CoS

• Redirect & Accounting-Based ACL

• Supports configuration on Port, VLAN, VLAN Routing Interfaces

• Time-Based ACL Support

Security Features

• IEEE 802.1X AAA Authentication

• Port & MAC-Based Authentication

• Accounting Based on Session Duration & Traffic

• Guest VLAN & Auto VLAN Assignment

• RADIUS & TACACS+ Authentication for IPv4 & IPv6

• MAB (MAC Authentication Bypass)

Network Management & Monitoring

• DHCP Features:

  • DHCP Server/Client for IPv4/IPv6

  • DHCP Relay, Option 82, DHCP Snooping

• Traffic Monitoring:

  • sFlow Traffic Analysis

• Network Security Management:

  • CLI, Web, Telnet, SNMPv1/v2c/v3 (IPv4 & IPv6)

  • Syslog & External Syslog Server

  • HTTP SSL, SNMP MIB, SNMP TRAP

  • FTP/TFTP, SNTP/NTP, RMON 1,2,3,9

  • Authentication via RADIUS/TACACS+

  • SSH v1/v2, Dual Firmware & Configuration Support

  • 802.3ah OAM, 802.1ag OAM

Data Center & Green Energy Features

• Data Center Features:

  • Virtual Switch Framework (VSF) (Feature Available in Future Upgrades)

• Energy Efficiency:

  • IEEE 802.3az (Energy Efficient Ethernet)

  • Auto Fan Speed Control & Temperature Alarm

  • LED Shut-Off for Power Saving

Ordering Information

• Model: DG-GS4652HPSE

• Description: DIGISOL 48-Port Gigabit Ethernet PoE Access Layer 3 Switch with 4 x 10GbE (SFP+) Uplink

• Warranty: Subject to DIGISOL’s standard product warranty terms & conditions.
