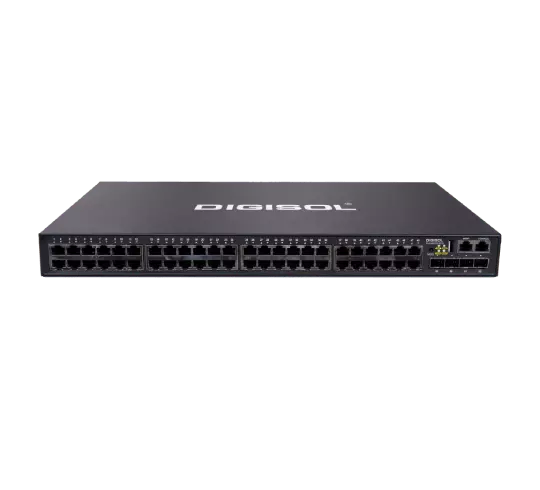

DIGISOL 48 Port L2+ 10G Access PoE Switch – DG-GS4652HP-XS

Hardware Features

Ports:

• 48 × 10/100/1000Base-T PoE+ (Auto-MDIX)

• 4 × 10GE (SFP+)

• Management Interfaces:

  • 1 × MGMT port

  • 1 × Console port

  • 1 × USB 2.0 interface

Performance:

• Switching Capacity: 176 Gbps

• Forwarding Rate: 131 Mpps

• MAC Address Table: 16K entries

• Jumbo Frame Support: 10K

• Packet Buffer: 24 Mbits

• ACL Table: 512 entries

• Queues Per Port: 8

• VLAN Table: 4K

Physical Specifications:

• Dimensions (W × H × D): 440mm × 44mm × 320mm

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Humidity: 5% to 95% (non-condensing)

Main Features

VLAN Support:

• Port-based VLAN

• IEEE 802.1Q VLAN

• Private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN

• Q-in-Q, Selective Q-in-Q, Flexible Q-in-Q

• VLAN Translation, N:1 VLAN Translation

Layer 3 Features:

• Static Routing

• Policy-Based Routing (PBR)

DHCP Support:

• IPv4/IPv6 DHCP Client

• IPv4/IPv6 DHCP Relay with Option 82, Option 37/38

• IPv4/IPv6 DHCP Snooping

• IPv4/IPv6 DHCP Server

Network Reliability:

• Spanning Tree Protocols:

  • IEEE 802.1D (STP)

  • IEEE 802.1w (RSTP)

  • IEEE 802.1s (MSTP)

  • Root Guard, BPDU Guard, BPDU Forwarding, TCN Filtering

• LACP (Link Aggregation):

  • Supports up to 64 groups, with 8 ports per group

• L2 Ring Protection:

  • MRPP, ERPS (G.8032), Loopback Detection, Fast Link

Security Features:

• Access Control Lists (ACLs):

  • IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL, Time Range ACL

  • ACL rules configurable on ports and VLAN interfaces

• Traffic Protection:

  • Storm Control (packet-based)

  • Port Security, MAC Limit based on VLAN and Port

  • ARP Security: Anti-ARP-Spoofing, Anti-ARP-Scan, ARP Binding

  • ND Snooping, Dynamic ARP Inspection (DAI)

• Authentication & Authorization:

  • IEEE 802.1X authentication

  • RADIUS & TACACS+ for centralized authentication

Multicast Support:

• IGMP Snooping (v1, v2, v3)

• IGMP Proxy, IGMP v3

• MLD (Multicast Listener Discovery) Snooping v1/v2

QoS (Quality of Service) Features:

• 8 Queues Per Port

• Traffic Classification based on ACL, VLAN ID, COS, TOS, DSCP

• Bandwidth Control & Flow Redirect

• Policy-Based QoS per Port & VLAN

• Advanced Scheduling: SP+SDWRR, DWRR, SP+DWRR

• IP Fragmentation Matching

Management & Maintenance

• Remote & Local Management:

  • CLI, Telnet, Console

  • Web-based GUI with SSL (IPv4/IPv6)

  • SSH (IPv4/IPv6)

  • SNMPv1/v2c/v3, SNMP Trap

• Monitoring & Logging:

  • RMON (Remote Monitoring) 1,2,3,9

  • Syslog (IPv4/IPv6), SNTP/NTP (IPv4/IPv6)

  • Dual Firmware Images & Multiple Configuration Files

  • Port Mirroring, RSPAN, sFlow

• Diagnostics & Layer Discovery:

  • VCT (Virtual Cable Tester), DDM, OAM

  • LLDP/LLDP-MED

  • ULDP (Cisco UDLD Equivalent)

Power & Energy Efficiency

• Power Input: 100-240V AC, 50-60Hz

• Maximum Power Consumption: <897W

• PoE Support:

  • IEEE 802.3af (PoE – 15.4W per port)

  • IEEE 802.3at (PoE+ – 30W per port)

  • Total PoE Budget: 740W

• Energy Efficiency:

  • Smart Auto-Speed Cooling Fan for reduced power consumption
