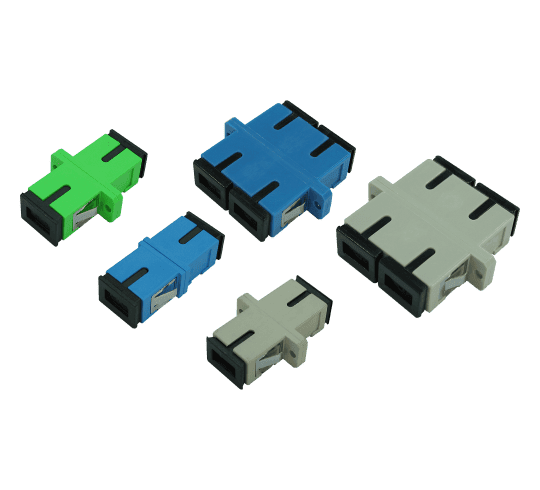

Digisol Channel SCS Adapter, MM, Simplex SC, PC Type
Key Features
Compact design
Low insertion loss and Return loss
Zirconia sleeve or Phosphor bronze sleeve
Available in Snap mount with metal clip or Screw mount
Available in Single mode and Multimode versions
Available in Simplex and Duplex versions
Push-Pull latching system mechanism for patchcord or pigtail
Specifications
Parameter | Specification |
|---|---|
Insertion loss | ≤0.3 dB |
Plug Retention force | 68N |
Durability (1000 Matings) | ≤0.2 dB |
Main body material | Plastic (Polybutylene terephthalate) |
Sleeve material | Zirconia sleeve (SM) and Zirconia/Phosphor bronze sleeve (MM) |
Adapter types | PC (SM/MM) or APC (SM) |
Adapter colours | PC Type (Blue, SM)(Beige, MM) APC Type (Green SM) |
Environmental Specifications
Parameter | Specification |
|---|---|
Storage Temperature | -20 °C to +70°C |
Installation Temperature | -20 °C to +70°C |
Operating Temperature | -20 °C to +70°C |
Ordering Information
Part Codes | Description |
|---|---|
DGF-AXXSSC-Y | DIGISOL Adapter, XX, Simplex SC, YY Type |
DGF-AXXDSC-Y | DIGISOL Adapter, XX, Duplex SC, YY Type |
Applications
Telecommunications networks
Computer networks
Data communications
Optical equipments
CATV networks
FTTH
Standards
Comply as per ANSI/TIA 568-C.3
Comply as per ISO/IEC 11801
RoHS Compliant: Directive 2002/95/EC
