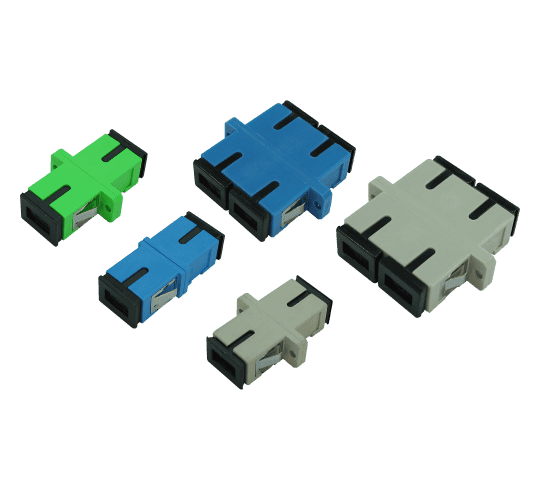

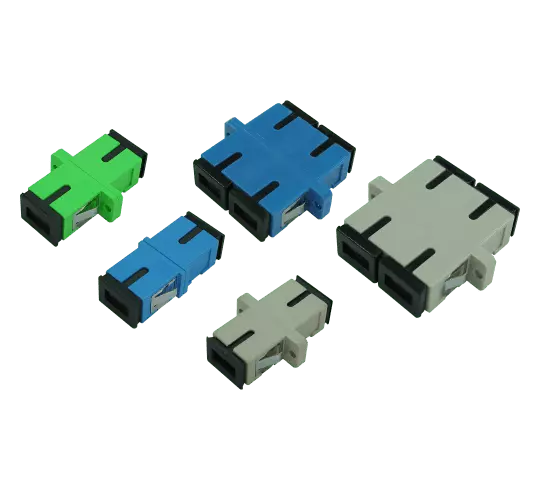

Digisol Channel SCS Adapter, SM, Duplex SC, PC Type

Type & Configuration
It is a Duplex SC adapter for single‑mode (SM) fiber, PC‑polished. ("Duplex SC" means two SC ports / two fibers side by side to handle transmit & receive.)

Polish / Finish
Uses PC (Physical Contact) finish — standard flat/PC end‑face for SC connectors, giving decent return loss though not as high as UPC or APC.

Sleeve Material
Precision alignment sleeve made of zirconia ceramic or phosphor bronze depending on variant. Ceramic provides better stability and lower wear.

Mounting Options
It’s available in snap mount (clip style), or screw / flange mount styles. This allows flexibility for different enclosure panels or bulkhead installations.

Compact Design
The adapter is designed to be compact, helping in high‑density patch panels or faceplates, minimizing “dead space” between ports.

Low Insertion & Return Loss
The adapter offers low insertion loss and low return loss, which is critical in single‑mode applications to maintain signal quality over long distance

RoHS Compliance
The product complies with RoHS (Restriction of Hazardous Substances), meaning restricted use of harmful materials.

Telcordia GR‑326 Core
Meets Telcordia GR‑326‑Core standard — a standard for optical connectors/adapters for performance under environmental conditions, durability, etc

Snap‑on Shutter Options
Some variants include snap‑on shutters to protect from stray light emissions or dust when ports are not in use.

Duplex / Simplex Availability
Although this one is duplex, Digisol offers both Simplex and Duplex versions, meaning they have similar adapters for 1‑fiber (simplex) or 2‑fiber (duplex) needs.

Mode (SM) Suitability
Designed specifically for single‑mode fiber, optimized for long‑distance, low‑loss signal transmissions; color coding or housing color likely blue (standard), though not always explicitly stated. (Industry norm.)

Housing Material & Build
Plastic housing is standard, but with precision internal components. It balances cost, durability, and manufacturing ease.

Push‑Pull Latching System (for certain versions)
Some versions include push‑pull latch or clip mechanism to secure patchcords/pigtails; ensures reliable connection and reduces disconnects under tension.

Compliance with Wiring Standards
Designed to support TIA/EIA telecommunication wiring standards, ensuring consistency, interoperability, and safety.

Use Case / Applications
Commonly used in structured fiber cabling: patch panels, fiber distribution panels, telecom rooms, data centers; for coupling two SC connectors or connecting patch cords / pigtails. Where single‑mode performance is needed with minimal optical loss.
