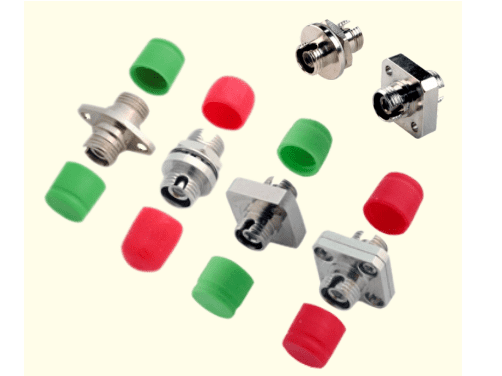

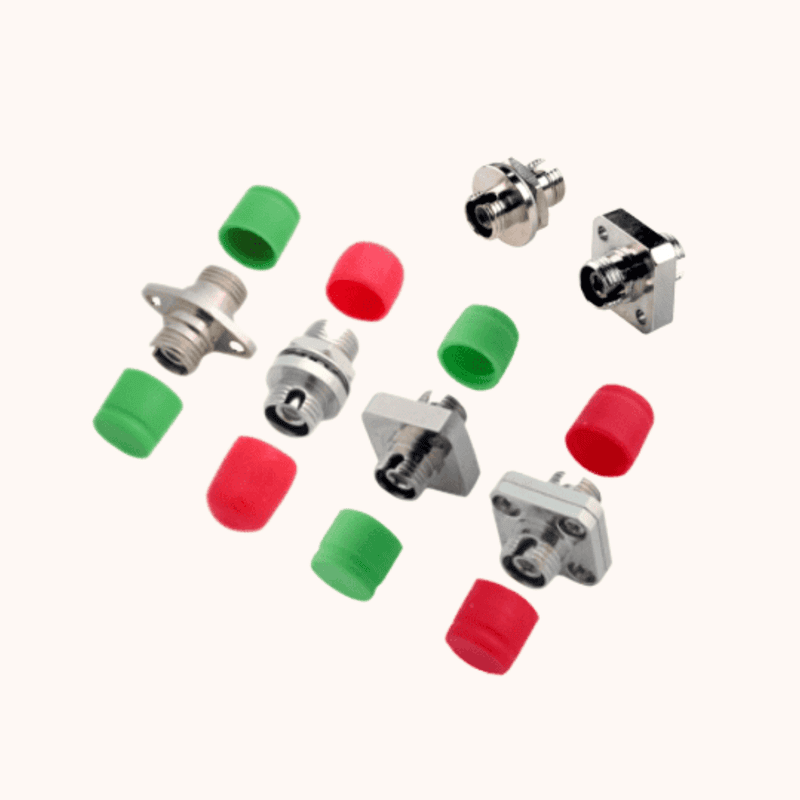

Digisol Channel SCS Adapter, SM, MM, Simplex/Duplex FC, PC/APC Type
Key Features
Compact design
Low insertion loss and Return loss
Zirconia sleeve or Phosphor bronze sleeve
Self adjusting metal panel clips
Available in Square flange mount or D Hole mount adapter styles
Available in Single mode and Multimode versions
Available in Simplex and Duplex versions
Bayonnet latching system mechanism for patchcord or pigtail
Technical Specifications
Category | Property | Specification |
|---|---|---|
Specifications | Insertion Loss | ≤0.3 dB |
Plug Retention Force | 100N | |
Durability (1000 Matings) | ≤0.2 dB | |
Main Body Material | Nickel-plated zinc housing | |
Sleeve Material | Zirconia sleeve (SM) / Zirconia-Phosphor bronze sleeve (MM) | |
Adapter Types | PC (SM/MM) or APC (SM) | |
Applications | Telecommunications Networks | ✓ |
Computer Networks | ✓ | |
Data Communications | ✓ | |
Optical Equipment | ✓ | |
CATV Networks | ✓ | |
FTTH | ✓ | |
Environmental Specifications | Storage Temperature | -20 °C to +70° C |
Installation Temperature | -20 °C to +70° C | |
Operating Temperature | -20 °C to +70° C | |
Compliance & Standards | ANSI/TIA 568-C.3 | Compliant |
ISO/IEC 11801 | Compliant | |
RoHS Compliance | Directive 2002/95/EC |
