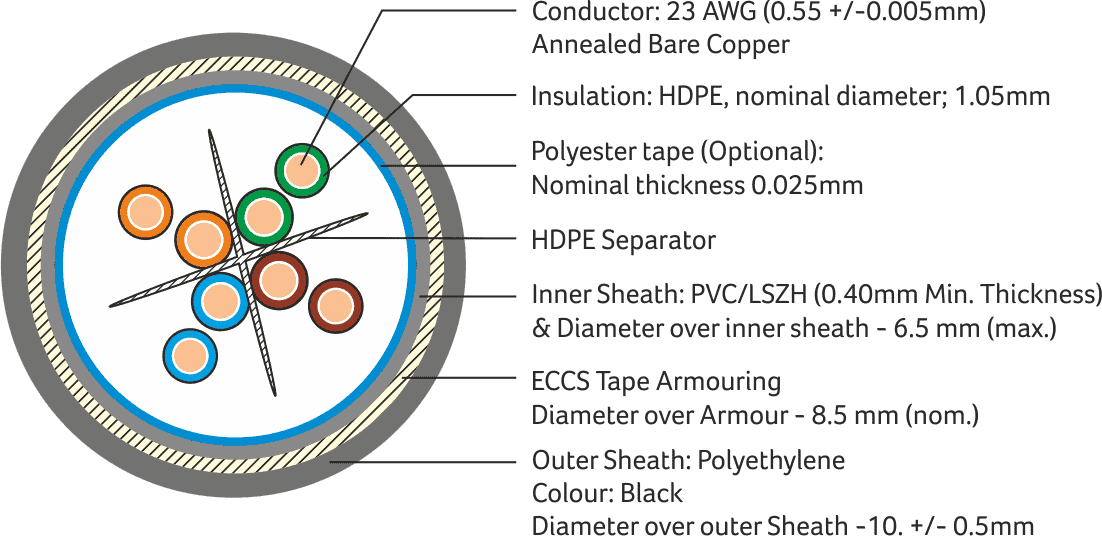

Digisol Channel SCS Cat6 UTP, Armoured Outdoor Cable (ECCS Tape Armouring)

Conductor

23 AWG, Solid Bare Copper

Pairs

4 Pair Twisted Wires

Type

U/UTP CM Rated

Insulation Material

High-Density Polyethylene (HDPE)

Insulation Diameter

1.02 ± 0.01 mm

Insulation Nominal Thickness

0.24 mm

Central Member

PE Cross Separator

Separator Dimension/Thickness

4.4 mm / 0.6 mm

Separator Material

Polyolefin/Polyethylene

Wrapping

Polyester Tape (0.025 mm Thickness)

Inner/Outer Jacket Sheath

FRPVC/Polyethylene

Inner/Outer Jacket Average Thickness

0.75 mm / 1.20 mm (Min.)

Armouring

ECCS Tape (20.125 mm Thickness)

Inner/Outer Jacket Diameter

7.0 mm / 10.0 mm (± 0.5 mm)

Rip Cord

1 No. (Polyester)

Jacket Colour

Black

Maximum Tensile Strength of Jacket

13.1 N/mm²

Pulling Force

11.5 Kg (25.35 lbs)

Bending Radius

<12 × Cable Diameter at -20°C ± 1°C

Operating Temperature

-20°C to +70°C

Installation Temperature

-20°C to +70°C

Conductor Resistance

≤ 9.38 Ω/100m Max.

Mutual Capacitance

<5.6 nF/100m Max.

Resistance Unbalance

5% Max.

Capacitance Unbalance

Max. 330 pF/100m

Dielectric Strength

2.5 KVDC for 2 Seconds

Delay Skew

<45 ns/100m

Propagation Delay @250 MHz

536 ns/100m

Impedance

100 ± 150 Ω @ 100 MHz

Current Rating

1.5 A Max.

Operating Voltage

72 V

Nominal Velocity of Propagation

69%

1-2

White-Orange Stripe and Orange

3-6

White-Green Stripe and Green

4-5

White-Blue Stripe and Blue

7-8

White-Brown Stripe and Brown

Compliance

ANSI/TIA-568-C.2

International Standards

ISO/IEC 11801

Certification

RoHS Compliant
