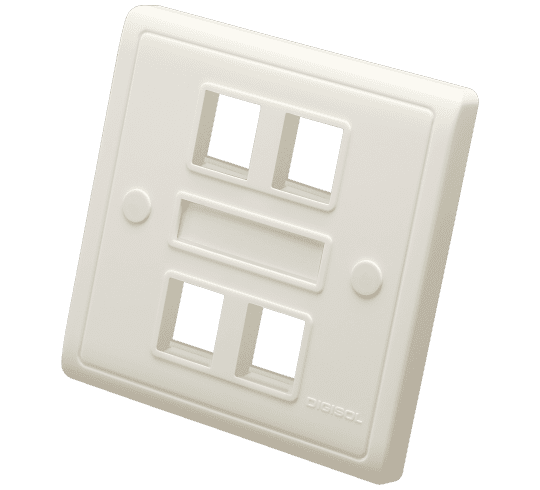

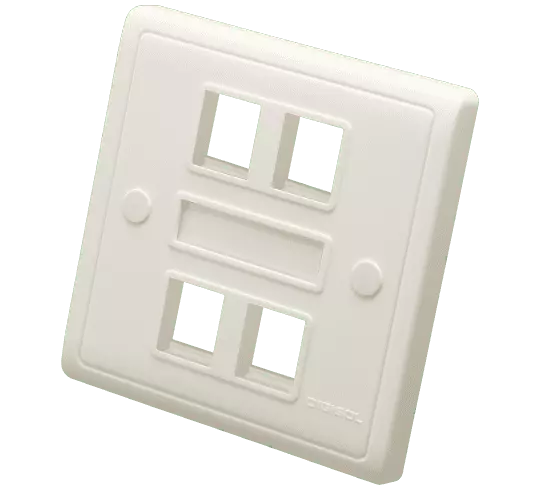

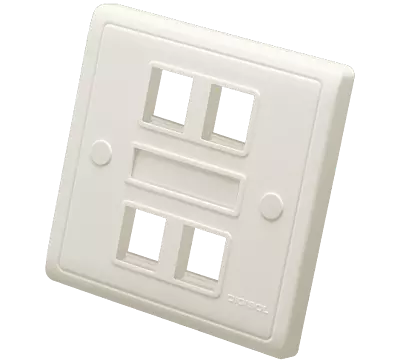

Digisol Channel SCS Face Plate, One Piece, Quad Port, W/O Shutter
Rs. 1.00 Rs. 2.00
Out of stock
Tags:
Key Features
One Piece design
Robust and Installer Friendly Design
Wall Flush Installation
Product Details
Technical Specifications
Category | Property | Specification |
|---|---|---|
Port Details | Port | Single / Dual / Quad Port |
Material Description | Base Material | ABS-UL94-V2 |
Screw Cover Cap Material | ABS-UL94-V2 | |
Mechanical Properties | Size | 8.6 x 8.6 x 1.2 cm (Single/Dual/Quad) |
Plug Retention Force | 14Kgf (140N) | |
Plug Reliability | 750 Cycles Minimum | |
Standard Verification | ANSI/TIA-568-C.2 | Compliant |
ISO/IEC 11801:2002 AMMD.2:2010 | Compliant | |
YD/T 926.3-2009 | Compliant | |
ISO/IEC 60603-7 | Compliant | |
RoHS Directive 2002/95/EC | Compliant |
