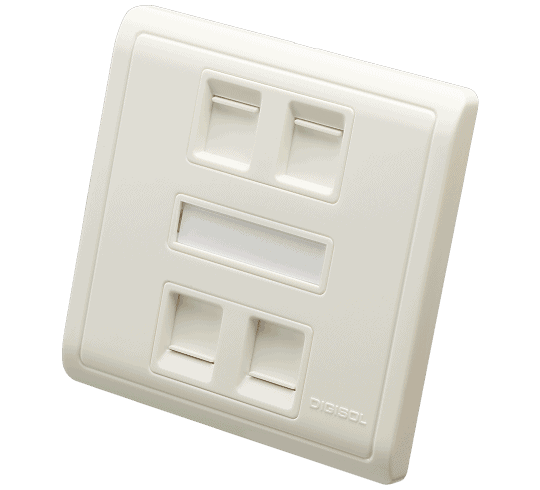

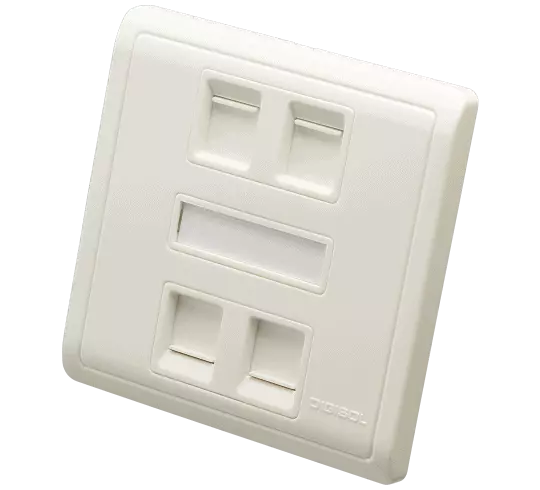

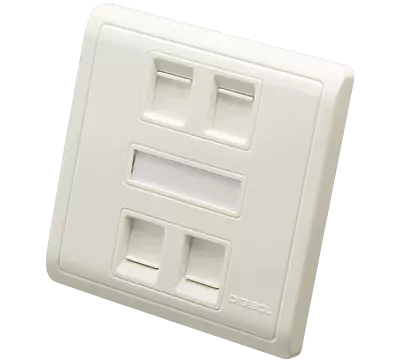

Digisol Channel SCS Face Plate, Two Piece , Quad Port , Modular Straight Shuttered
Out of stock
Rs. 2,200.00
Rs. 3,299.00
Key Features
Two Piece design
Shutter on Face Plate
Elegant hidden-screw design
Robust and Installer Friendly Design
Product Details
Specifications
Product Details
Product Details
Technical Specifications
Category | Property | Specification |
|---|---|---|
Port Details | Port | Single / Dual / Quad Port |
Material Description | Base Material | ABS-UL94-V2 |
Cover Material | ABS-UL94-V2 | |
Dust Cover Material | ABS-UL94-V2 | |
Mechanical Properties | Size | 8.6 x 8.6 x 1.2 cm (Single/Dual/Quad) |
Plug Retention Force | 14Kgf (140N) | |
Plug Reliability | 750 Cycles Minimum | |
Standard Verification | ANSI/TIA-568-C.2 | Compliant |
ISO/IEC 11801:2002 AMMD.2:2010 | Compliant | |
YD/T 926.3-2009 | Compliant | |
ISO/IEC 60603-7 | Compliant | |
RoHS Directive 2002/95/EC | Compliant |
Specifications
Specifications
General
- Type Of OutletsQuad
