Digisol Channel SCS Fiber Cables Single Mode (OS2) Unitube, Armoured Cable
Key Features
Suitable for Outdoor network direct burial.
Rodent proof.
UV protection.
Polyester based cord below armour tape for easy ripping.
Thermoplastic material loose tube.
Excellent water proof layer and moisture resistance.
Excellent Crush resistance performance.
Light weight and Compact structure.

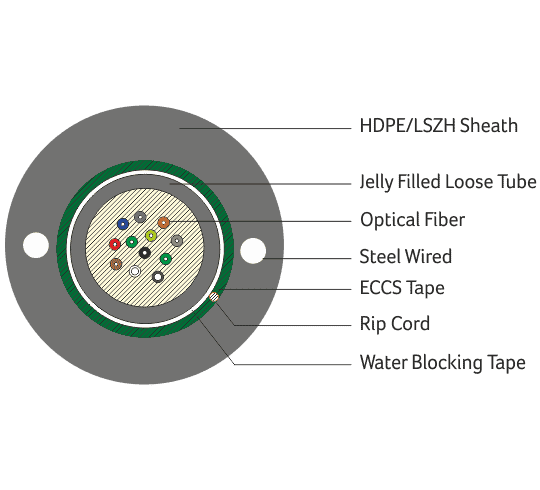

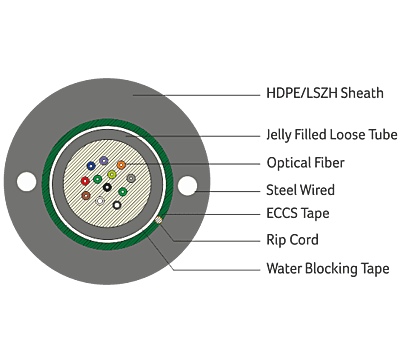

Constructional Specifications
Parameters | Fiber Core: 04, 06, 08, 12 F | Fiber Core: 24 F |
|---|---|---|
Number of Fiber per Tube | 04, 06, 08, 12 nos. | 24 nos. |
Number of Loose Tube | 01 no. | 01 no. |
Loose Tube Colours | Natural | Natural |
Loose Tube Internal Diameter | 1.7 ±0.1 mm (PBT) | 2.6 ±0.1 mm (PBT) |
Loose Tube Outer Diameter | 2.5 ±0.1 mm (PBT) | 3.5 ±0.1 mm (PBT) |
Peripheral Strength Member | 0.6±0.05 mm (Steel Rods-2nos.) | 0.6±0.05 mm (Steel Rods-2nos.) |
Moisture Barrier | Water Swellable Tape | Water Swellable Tape |
Armoring | 20.150 mm (ECCS Tape) | 20.150 mm (ECCS Tape) |
Number of Rip Cords | 01 no. (Polyester) | 01 no. (Polyester) |
Outer Sheath Thickness | 1.5 mm (Nominal) (HDPE/LSZH Black) | 1.5 mm (Nominal) (HDPE/LSZH Black) |
Cable Diameter | 8.5 ± 10.5 mm | 7.5 ±0.5 mm |
Cable Weight (HDPE/LSZH) | 65.0 ± 10 kg/km / 75.0 ± 10 kg/km | 75.0 ± 5 kg/km / 95.0 ± 5 kg/km |
Fiber Colours | 04 Fibers: Blue, Orange, Green, Brown/Natural | |
Environmental Specifications
Parameters | Specification |
|---|---|
Storage Temperature | -40°C to +60°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +60°C |
Mechanical Specifications
Parameters | Fiber Core: 04, 06, 08, 12, 24 F | Standards |
|---|---|---|
Tensile Strength | 1000 N | IEC 60794-1-2-E1 |
Crush Resistance | 4000 N/100 mm | IEC 60794-1-2-E3 |
Impact Strength | 25 N.m | IEC 60794-1-2-E4 |
Torsion | 180° | IEC 60794-1-2-E7 |
Minimum Bend Radius | 20D | IEC 60794-1-2-E11 |
Optical Fiber Specifications
Parameters | Fiber Core: 04, 06, 08, 12, 24 F | Standards |
|---|---|---|
Fiber Type | G.652D (OS2) | IEC 60793-1 & 60794-1 |
Attenuation | 0.34 dB/km (@1310nm) |
|
Chromatic Dispersion | ≤3.5 ps/nm.km (@1285-1330 nm) |
|
Zero Dispersion Wavelength | 1300-1324 nm |
|
Zero Dispersion Slope | 0.092 ps/nm².km |
|
Polarisation Mode Dispersion | ≤0.2 ps/√km |
|
Cut-off Wavelength | ≤1260 nm |
|
Mode Field Diameter | 9.2 ± 0.4 µm (@1310mm) |
|
Core Cladding Concentricity Error | ≤0.8 µm |
|
Cladding Diameter | 125 ± 1 µm |
|
Cladding Non-circularity | ≤1% |
|
Coating Diameter | 245 ± 10 µm |
|
Cable Size & Standard Length
Fiber Count | Standard Length |
|---|---|
4F to 12F | 4.0 kms ± 10% |
24F | 2.0 kms ± 10% |
Standards
Standard |
|---|
ANSI/TIA 568-C.3 & ISO/IEC 11801 |
Telecordia GR-20 Core ITU-T REC G.652D |
Ordering Information
Part Codes | Description |
|---|---|
DGF-CAS2OUSX-YY | DIGISOL SM(OS2) UNITUBE, ARMOURED, Y CORE, XX |
Note: X/XX-Sheath Material-H/HDPE L/LSZH
