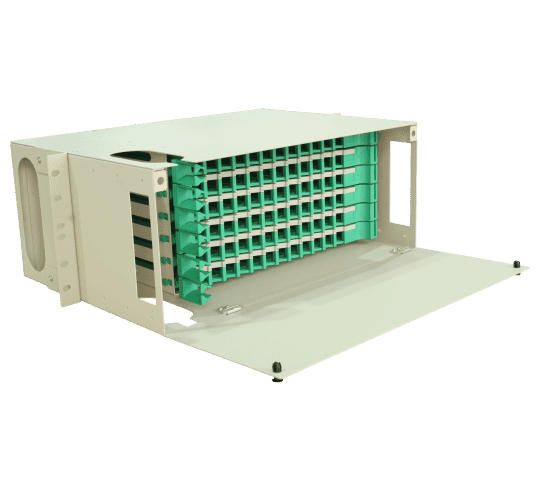

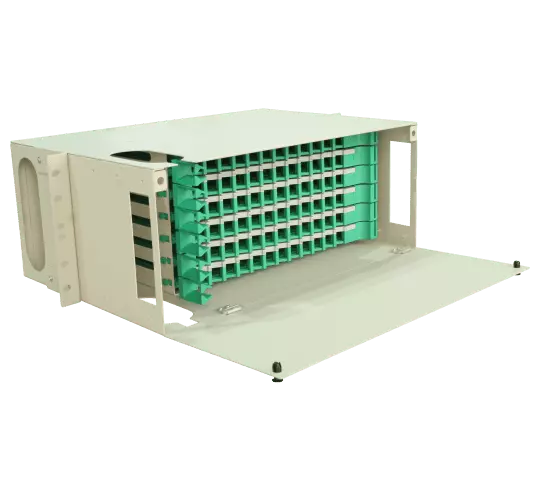

Digisol Channel SCS Fiber Distribution Frame Blank 48 Core
Key Features
Frame adopts front side cable operation, saves installation space
Fiber Management Structure adopts unique splice and distribution design for fiber cable and pigtail
Movable connection of pigtail and patch cords can be finished in the same fiber management tray
Movable connectors adopts inclined 25 degree installation structure ensures bend radius of pigtail and patch cord
Reasonable layout makes line clear and protects fiber optic cable
Front panels suitable for FC, SC, ST adapter
Technical Specifications
Category | Item | Description | |
|---|---|---|---|
Technical Specifications | Tensile Force (N) | 1000 | |
Strength | 25KV (DC)/1Min, No Flashover | ||
Pressure Resistance (KPA) | 70 ~ 106 | ||
Return Loss (DB) | PC (>=45DB), UPC (>=50DB), APC (>=60DB) | ||
Ports | 12 to 24 | ||
Installation Type |
| Rack Mount/Wall Mount | |
Environmental Specifications | Operation Temperature (°C) | -40 to +45 | |
Relative Humidity | 85% |
