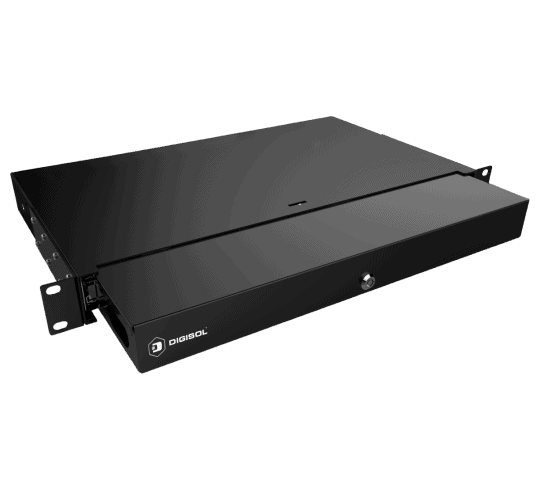

Digisol Channel SCS Fiber LIU, Slide Type, Unloaded, 24 Port
Key Features
Suitable to mount in standard 1U 19 inch rack.
Made of Cold Rolled Steel material with black powder coating.
Sliding type for ease in maintenance.
Ease in assembling of Adapters panels, splicing arrangement in splice tray and cable routing.
Two cable entry holes for different size cables through cable glands.
Ease in splicing of 24 fibers in each fiber splicing trays.
Front lock with key arrangement to avoid tampering and for safety.
Suitable for 6/12/24 SC Simplex, 6/12/24 LC Duplex, 6/12/24 SC Duplex.
Suitable with SC, LC, ST, FC Adapter panels having maximum of 12 ports with 2 nos can be assembled.
Technical Specifications
Category | Specification |
|---|---|
Adapter Capacity | 6/12/24 (SC/LC, Simplex/Duplex), 6/12/24 (ST, FC) |
Adapter Panels | Snap-in on Sliding base frame (maximum 2 nos) |
Splice Tray | 1 no. for 24 fibers |
Accessories | Cable management rings (2 nos), Splice rods (24 nos), Velcro ties (6 nos.), Cable ties (6 nos.), Screws M3x6 (8 nos) |
Mechanical Specifications
Category | Specification |
|---|---|
Dimensions | 482 x 315 x 44.3 mm (Length x Width x Height) |
Base Material | Cold Rolled Steel with Black Powder Coating |
Splice Tray Material | ABS Plastic (140 x 90 x 15 mm) (Length x Width x Height) |
Fusion Capacity | 24 Fiber maximum per splice tray |
Maximum Fiber Count | 24 Fiber (SC Simplex/Duplex, LC Simplex/Duplex, ST, FC) |
Adapter Panel Panel Dimensions | Cold Rolled Steel with Black Powder Coating: 165 x 35 x 1.5 mm (Length x Width x Thickness) |
Environmental Specifications
Category | Specification |
|---|---|
Storage Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C |
Operating Temperature | -20°C to +70°C |
Standards
Standard |
|---|
Comply as per ANSI/TIA 568-C.3 |
Comply as per ISO/IEC 11801 |
RoHS Compliant: Directive 2002/95/EC |
Ordering Information
Slide Type LIU:
Product Code | Description |
|---|---|
DGF-LXXXUXX-15 | DIGISOL FIBER LIU, SLIDE TYPE, UNLOADED, 12 PORT |
DGF-LXXXUXX-25 | DIGISOL FIBER LIU, SLIDE TYPE, UNLOADED, 24 PORT |
Adapter Panel for Slide Type LIU:
Product Code | Description | Product Code | Description |
|---|---|---|---|
DGF-APDSC1-12 | 1 X 12 Adapter Panel - SC Duplex | DGF-APSLC1-12 | 1 X 12 Adapter Panel - LC Simplex |
DGF-APDSC1-3 | 1 X 3 Adapter Panel - SC Duplex | DGF-APSLC1-24 | 1 X 24 Adapter Panel LC Simplex |
DGF-APDSC1-6 | 1 X 6 Adapter Panel - SC Duplex | DGF-APSLC1-6 | 1 X 6 Adapter Panel - LC Simplex |
DGF-APSSC1-12 | 1 X 12 Adapter Panel - SC Simplex | DGF-APSFC1-12 | 1 X 12 Adapter Panel - FC Simplex |
DGF-APSSC1-6 | 1 X 6 Adapter Panel - SC Simplex | DGF-APSST1-12 | 1 X 12 Adapter Panel - ST Simplex |
DGF-APXXXX-X | 1 X 12 Adapter Panel - Blank |
|
|
General
- Ports Quantity24
