Digisol Channel SCS Fiber Optic Cable, Multi Mode, Tight Buffered
Key Features
Suitable for aerial, pipeline, bracket lying, ducts, conduits
Suitable for Indoor and Outdoor applications
Light Weight, all dielectric self-supporting (ADSS)
Good tensile strength and crush resistance
Good bending performance

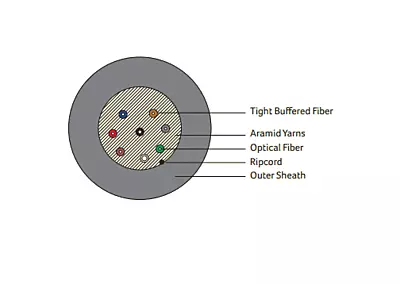

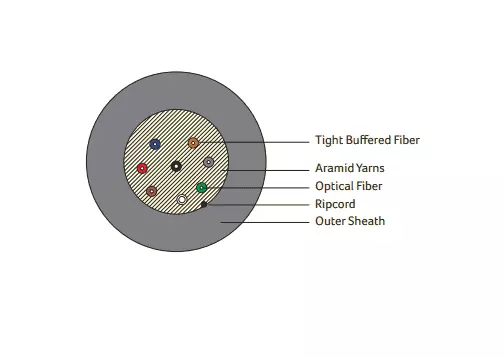

Constructional Specifications
Parameters
Number of Tight Jacketed Fibers: 04, 06, 08, 12, 24 F
Fiber Colours: 04, 06, 08, 12, 24 nos.
Tight Jacketing over Fibers: Natural
Tight Jacketing Colours: 850±50µm
Peripheral Strength Member: Aramid yarn
Number of Rip Cords: 01 no. (Polyester)
Outer Sheath Thickness: 1.1 mm (Nominal) (LSZH Orange)
Jacketing Colours:
04 Fibers: Blue, Orange, Green, Brown
06 Fibers: Blue, Orange, Green, Brown, Slate, White
08 Fibers: Blue, Orange, Green, Brown, Slate, White, Red, Black
12 Fibers: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua
24 Fibers: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Aqua
Environmental Specifications
Storage Temperature: -20°C to 85°C
Installation Temperature: -10°C to 60°C
Standards
IEC 60793-1, IEC 60794-1, IEC 60332-1
ANSI/TIA 568-C.3 & ISO/IEC 11801
Telecordia GR-20 Core
Mechanical Specifications
Fiber Core | 04 F | 06 F | 08 F | 12 F | 24 F |
|---|---|---|---|---|---|
Cable Diameter (mm) | 5.4 ± 0.3 | 6.2 ± 0.3 | 6.5 ± 0.3 | 7.1 ± 0.3 | 8.5 ± 0.5 |
Cable Weight (kg/km) | 22.0 | 32.0 | 38.0 | 45.0 | 68.0 |
Tensile Strength (N) | 640 | 700 | 730 | 1100 | 1500 |
Crush Resistance (N) | 1500 | 1500 | 1500 | 1500 | 1500 |
Torsion | 360° | 360° | 360° | 360° | 360° |
Optical Fiber Specifications
Fiber Type: 162.5 µm (041), 50 µm (012), 50 µm (OM3), 50 µm (OM4)
Attenuation:
@ 850 nm: ≤ 3.5 dB/km
@ 1300 nm: ≤ 1.5 dB/km
Bandwidth:
@ 850 nm: 200 MHz.km
@ 1300 nm: 2600 MHz.km
Core Cladding Concentricity Error: ≤ 1 µm
Cladding Diameter: 125 ± 1 µm
Cladding Non-circularity: ≤ 1%
Coating Diameter: 250 ± 15 µm
