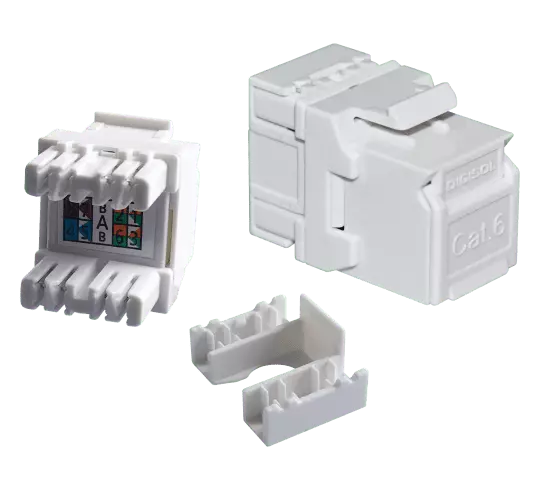

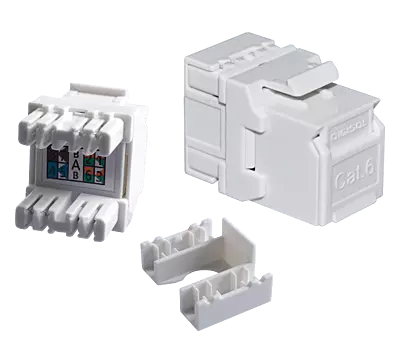

Digisol Channel SCS Keystone, Cat6 UTP, Punch Down, White Door
Key Features
Skilled Design on Jack and PCB
High and Reliable Performance
Ergonomic Design and Easy Termination
Support Both RJ11/RJ12 Plug
Electrical Specifications
Parameter | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | 500MΩ Minimum |
Contact Resistance | 10MΩ Maximum |
DC Resistance | 0.10Ω Maximum |
Mechanical Specifications
Parameter | Specification |
|---|---|
Plug Insertion Life | 750 Cycles Minimum |
Plug & Jack Contact Force | 100 Grams Minimum |
Plug Retention Force | Using FCC-Approved Plug: 30 LBS Minimum |
Temperature | -40°F to 150°F (-40°C to 68°C) |
Physical Specifications
Parameter | Specification |
|---|---|
Plastic Parts | High Impact Flame Retardant Plastic |
PCB | UL 94V-0 Rated, FR-4, 1.2mm Thickness |
Jack Wire | 0.40mm Phosphor Bronze Gold Over Nickel Plating |
Nickel Plating | 40μ - 80μ |
Gold Plating | 30 Microns |
Connector | Insulation Displacement Connector (IDC) Accepts #23-24 AWG Solid Wire |
Standard Verification
Standard | Compliance |
|---|---|
ANSI/TIA-568-C.2 | Compliant |
ISO/IEC 11801:2002/AMMD.2:2010 | Compliant |
YD/T 926.3-2009 | Compliant |
ISO/IEC 60603-7 | Compliant |
RoHS Directive 2002/95/EC | Compliant |
