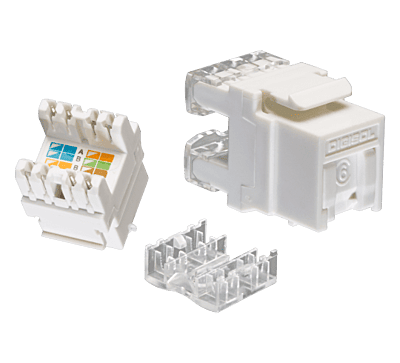

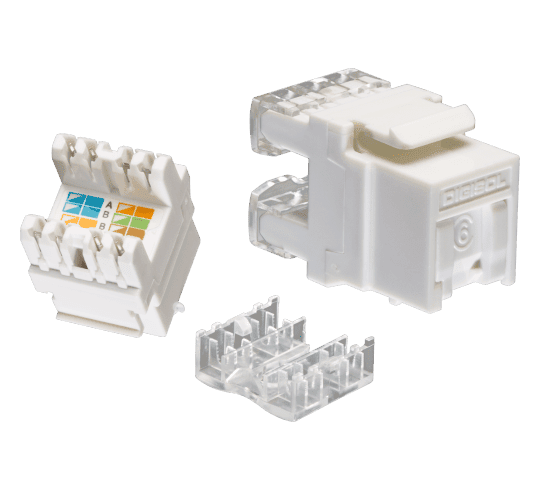

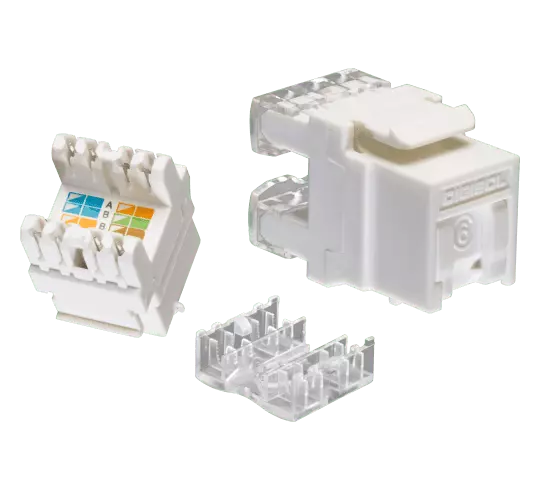

Digisol Channel SCS Keystone Jack, Cat6 UTP, White Collapsable Door
Key Features
Small & Exquisite form factor
Skilled Design on Jack and PCB
High and Reliable Performance
Ergonomic Design and Easy Termination
With Collapsable Shutter
Electrical Specifications
Parameter | Specification |
|---|---|
Current Rating | 1.5 Amps |
Insulation Resistance | ≥ 500MΩ |
Contact Resistance | ≤ 10mΩ |
DC Resistance | ≤ 0.10Ω |
DC/AC Volt Endurance | DC 1000V / AC 750V (1 Min) |
Mechanical Specifications
Parameter | Specification |
|---|---|
Plug Insertion Life | ≥ 750 Cycles with FCC Compliant RJ-45 Plug |
Plug & Jack Contact Force | ≥ 100 Grams with FCC Compliant RJ-45 Plug |
Plug Retention Force | ≥ 11 LBF |
Durability | 200 Termination Cycles |
Operating Temperature | -10°C to +60°C |
Operating Humidity | 10% to 90% RH |
Storage Temperature | -40°C to +68°C |
Physical Specifications
Parameter | Specification |
|---|---|
Plastic Parts | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
PCB | FR-4, 1.2mm Thickness |
Jack Wire | 0.40mm Phosphor Bronze Gold Over Nickel Plating |
Nickel Plating Base (Ni) | 40μ - 80μ |
Gold Plating | 30 Microns |
Connector | Insulation Displacement Connector (IDC) Accepts #23-24 AWG Solid Wire |
Standard Verification
Standard | Compliance |
|---|---|
ANSI/TIA-568-C.2 | Compliant |
ISO/IEC 11801:2002/AMMD.2:2010 | Compliant |
YD/T 926.3-2009 | Compliant |
ISO/IEC 60603-7 | Compliant |
RoHS Directive 2002/95/EC | Compliant |
